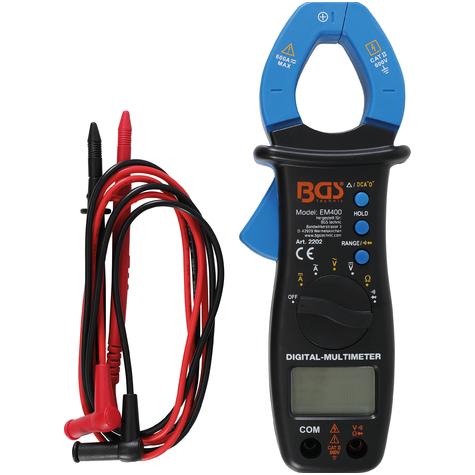

Description

designed especially for the automotive sector, but can also be used in other areas
3 - 3/4 digits LCD max. display value 3999
battery: 2x 1.5 V AAA or similar
low battery indicator
storage condition: from -10°C to +50°C, max. 85% RH
dimensions: 194 x 71 x 38 mm
weight: about 215 g (including batteries)
suitable for category CAT II

measuring ranges:

AC and DC voltage measuring ranges: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
resistance: 400 Ohm, 4 KOhm, 40 KOhm, 400 KOhm, 4 MOhm, 40 MOhm
AC and DC current up to 400 A, smallest measure 100 mA
indicator for negative polarity and overrange
max. clamp opening: 33 mm, max. cable: Ø 28 mm

Technical data
Gross weight 410 g
