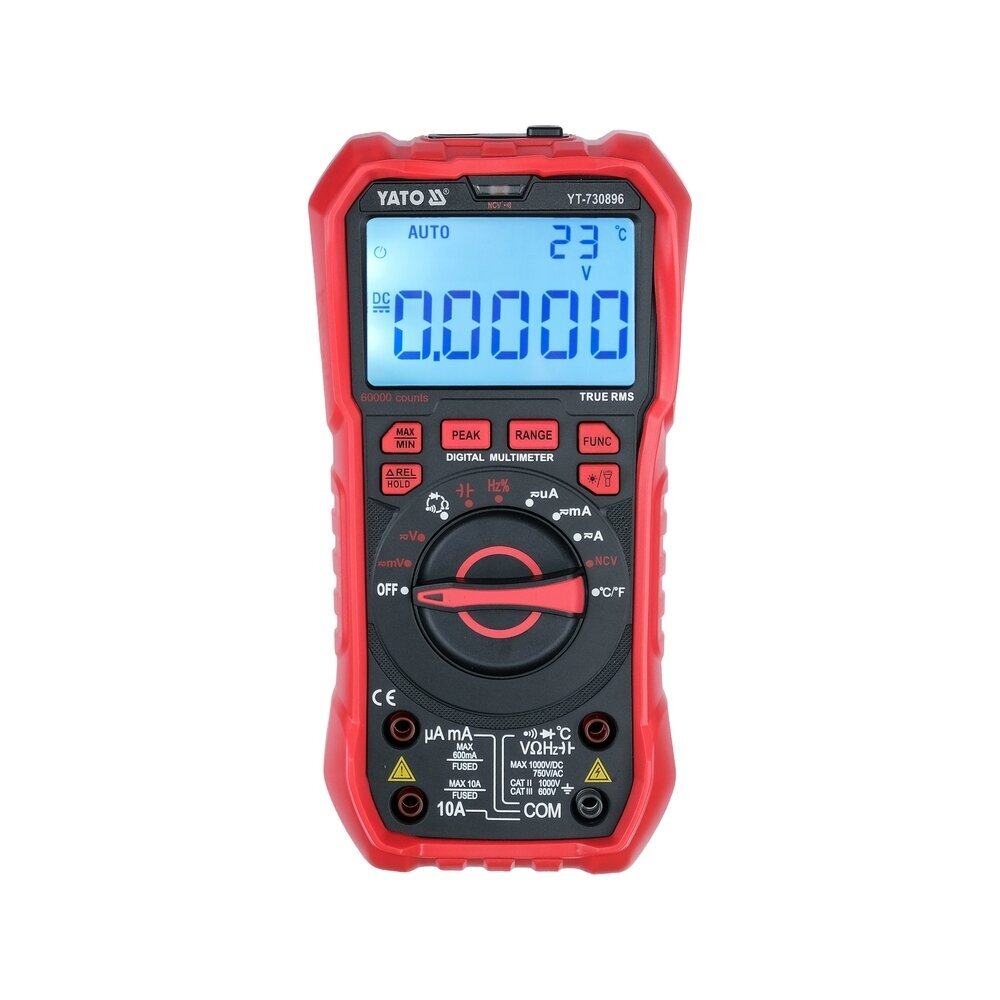

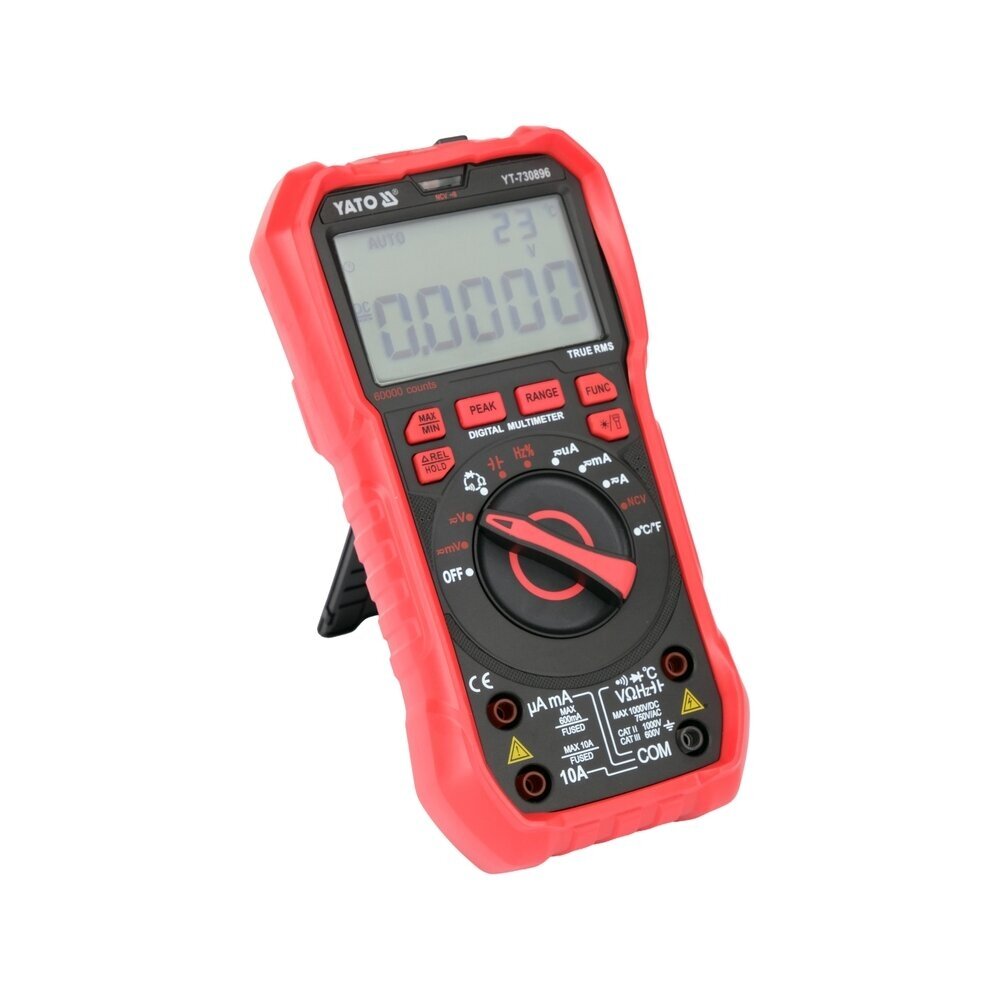

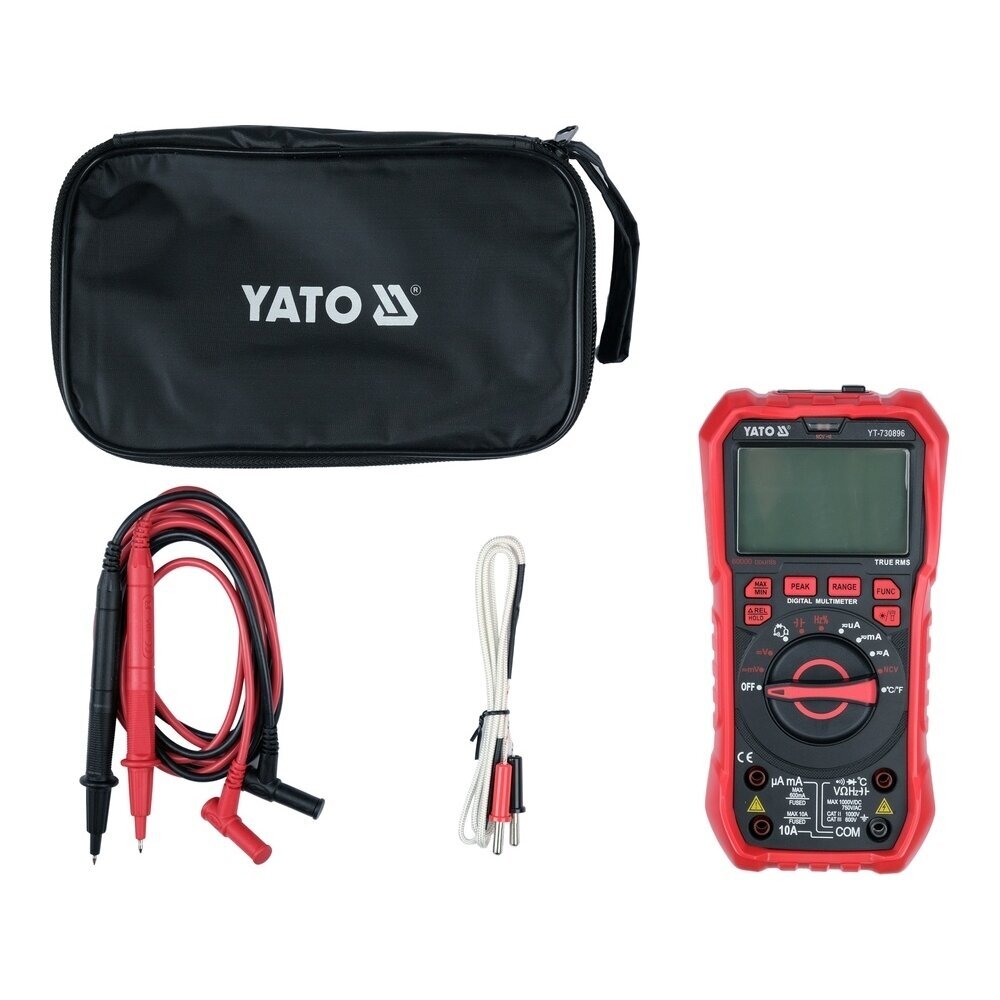

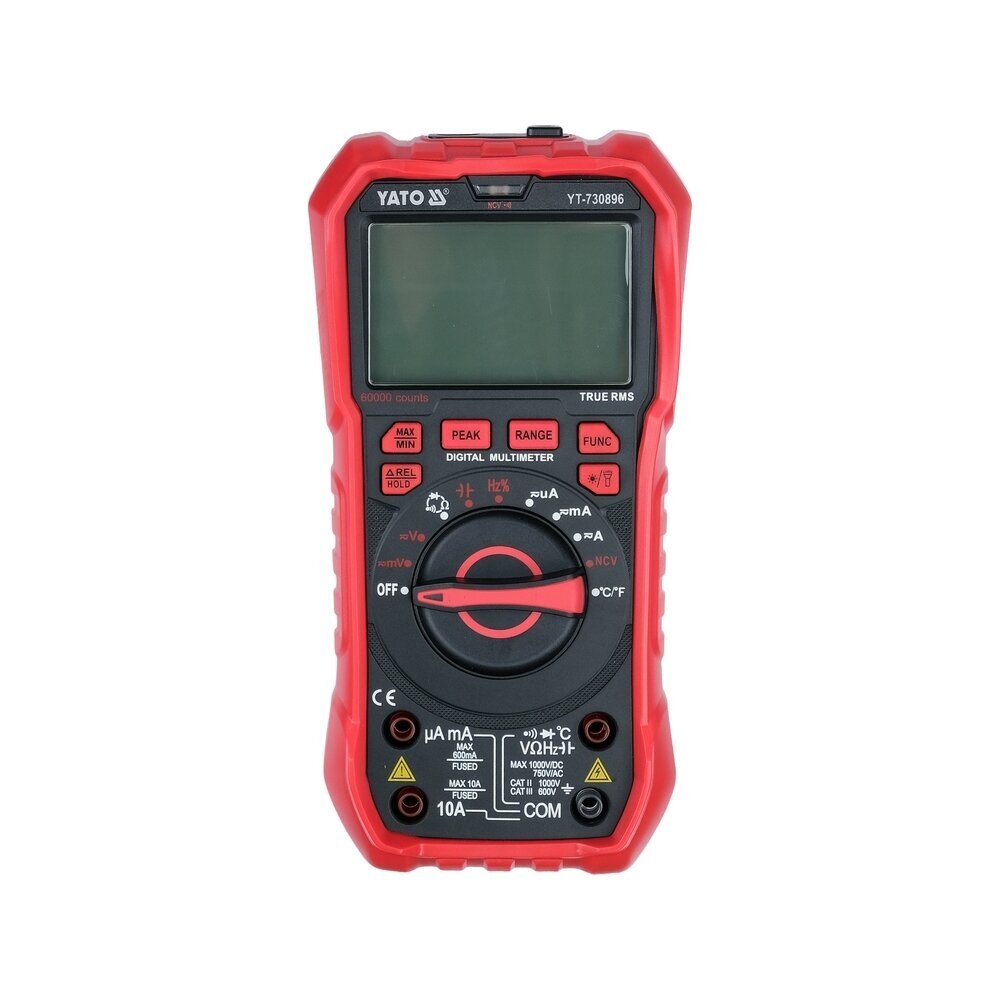

Skaitmeninis multimetras TRUE RMS LCD 60000

Detailed Technical Specifications:

• The universal meter with TRUE RMS function and automatic range selection is an advanced measuring tool designed for precise diagnostics of electrical installations, electronic circuits, and industrial devices.
• The ability to count up to 60000 digits allows for accurate readings even of small changes in parameters, and the wide range of functions enables both basic and advanced measurements of electrical quantities.
• The large multifunctional LCD display, capable of simultaneously showing two measurement values, automatic screen backlighting, and illuminated measurement sockets significantly enhance work comfort in difficult lighting conditions.
• A range of functions facilitating measurements and wide measurement ranges, as well as speed and industrial precision, will be appreciated by electronics engineers, electricians, and DIY enthusiasts alike.

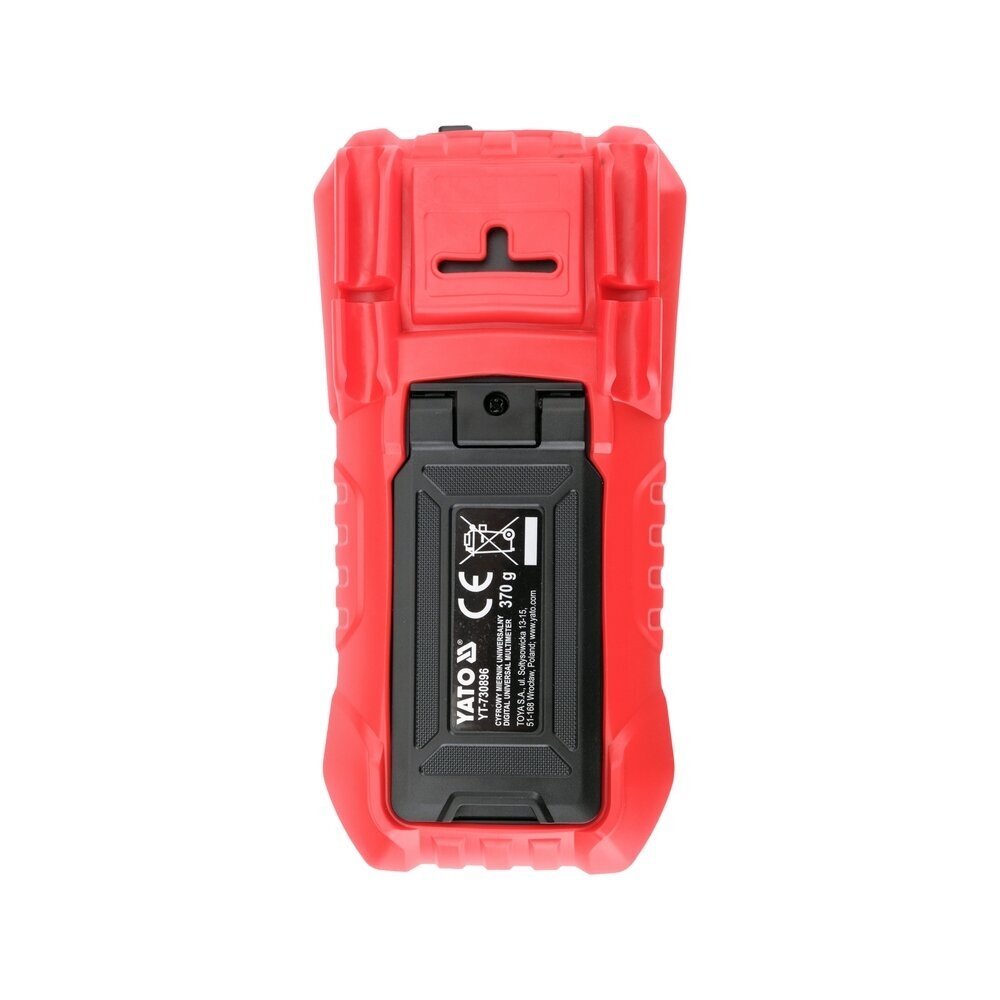

• The robust housing with a non-slip protective PVC holster increases user safety and protects the device from slipping out of hands and mechanical damage, while silicone-insulated measuring leads ensure high durability and resistance to elevated temperatures.
• AC voltage: A.C. 0-750 V, TRUE RMS (40-1000 Hz)
• DC voltage: D.C. 0-1000 V
• AC current: A.C. 0-10 A, TRUE RMS (40-1000 Hz)
• DC current: D.C. 0-10 A
• Resistance: 0-60 MΩ
• Diode test: IF 1.8 mA, UR 3.2 V
• Continuity test: 0-50 Ω
• Capacitance: 0-60 mF
• Frequency: 0-25 MHz
• Temperature: -20 to 1000°C
• Non-contact AC voltage detection: NCV
• Peak voltage measurement: PEAK VALUE
• Example of determining accuracy for AC voltage measurement. Calculations for measurement result: 235 V
• The accuracy of the YT-730896 meter for this range is: ±(0.8% + 10), resolution 0.01 V
• Error calculation formula: (measurement result x 0.8%) + 10 x resolution
• Calculations: (235 x 0.8%) + 10 x 0.01 = 1.88 + 0.1 = 1.98 V
• Actual result considering measurement error for a reading of 235 V = 235 ± 1.98 V
• Result considering measurement error for a DC voltage reading: 12 V = 12 ± 0.011 V
• Result considering measurement error for an AC current reading: 8 A = 8 ± 0.17 A
• A table with resolution and accuracy for each measurement can be found in the user manual.
• TRUE RMS - the meter displays the true RMS value of AC voltage/current; unlike averaging meters, devices with TRUE RMS show the correct value not only for sinusoidal waveforms but also for distorted sinusoidal waveforms, e.g., higher harmonics or square and triangular waveforms; a must-have function wherever switching power supplies, motor inverter drives, HVAC systems, etc., are present in the circuit.

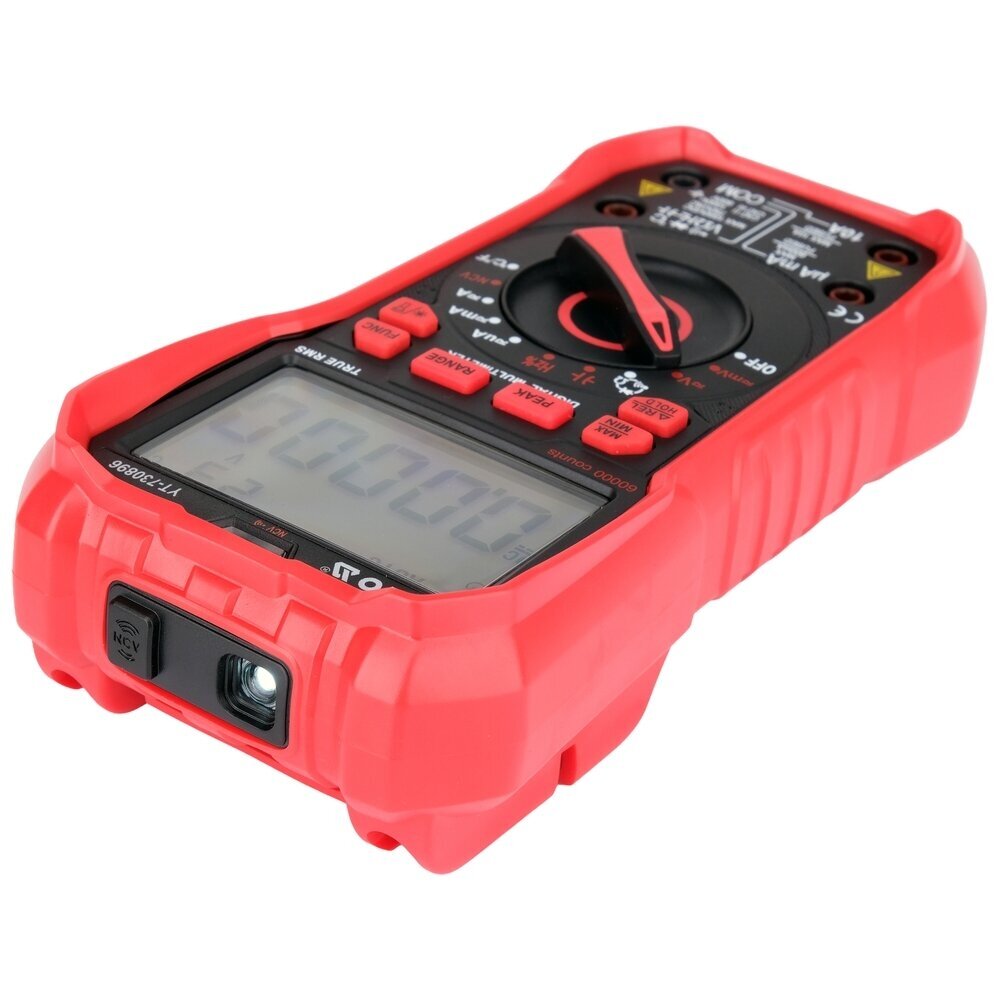

• NCV - non-contact detection of AC voltage using induction; the meter detects the presence of voltage in an insulated wire using the NCV sensor on the front of the device.
• AUTO - automatic range adjustment (just one measurement) is triggered by default; when measuring unknown values using a meter with manual range adjustment via a dial, measurements should be taken sequentially from the largest range down to the range that provides the most accurate result - otherwise, there is a risk of damaging the device.
• RANGE - manual range adjustment, useful when checking many identical components of known value, e.g., a series of resistors; manually setting the range will significantly shorten the time for such measurements.
• REL - using this function during measurement will zero the display and take the visible value before display as the reference level; the next measurement will show the difference between the measured value and the stored reference value.
• FUNC - changing the measurement mode, e.g., from AC voltage measurement to DC.
• MAX/MIN - holds the maximum or minimum value from the current measurement on the display.
• PEAK - peak value for AC current and voltage measurements.
• HOLD - holds the currently measured value on the display.
• LCD display, maximum displayed result: 60000
• Screen backlighting with a light sensor, automatically adjusts the brightness of the screen based on ambient light.
• Measurement sockets illuminate when a specific measurement is selected (clear indication of which measurement sockets to insert the probes into for that measurement).
• Audible and visual signal in the continuity test for resistance below 50 Ω.
• Ability to enable diode and continuity tests separately.

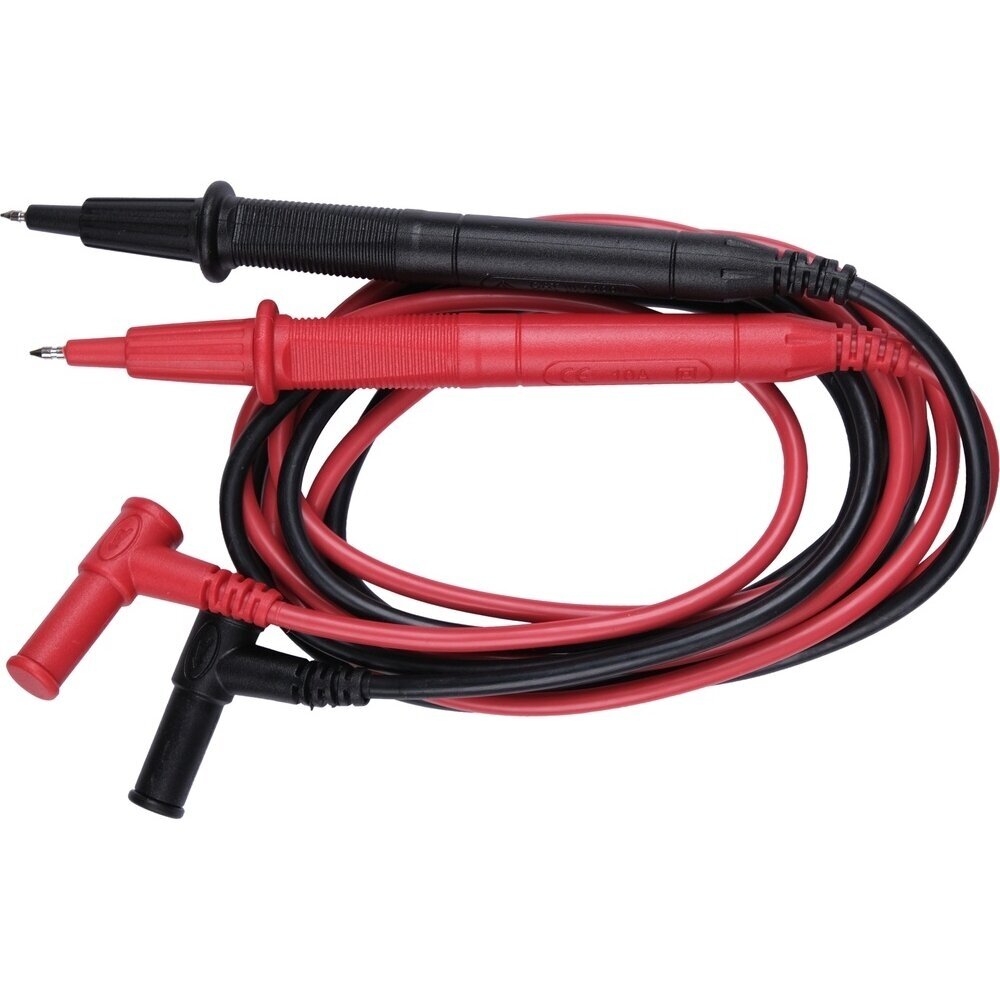

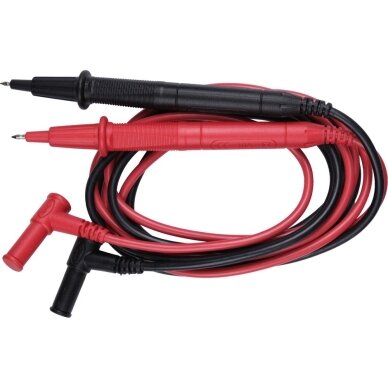

• Measuring probes with a length of 13 cm.
• Length of the cable with probes: 130 cm.
• Diameter of the cable with insulation: 3.5 mm.

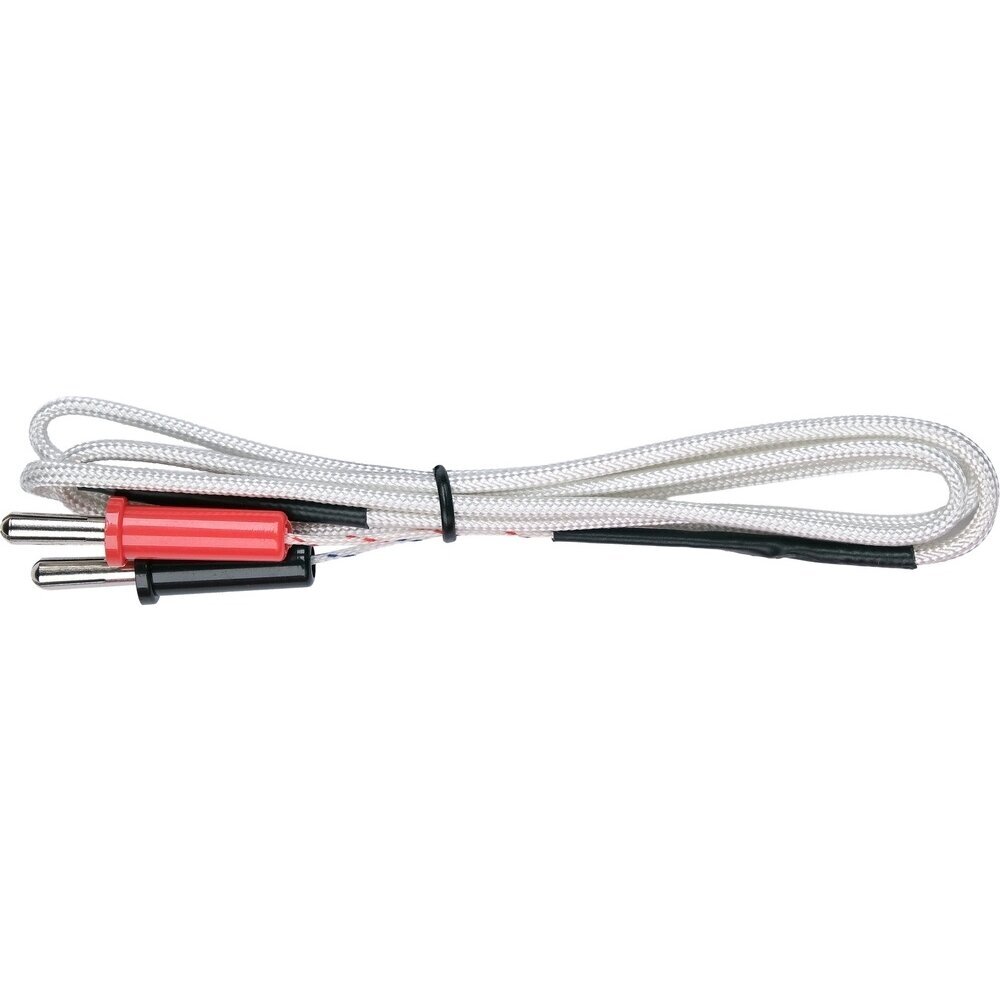

• Point probe for temperature measurement.
• Design with overload protection.
• Housing made of ABS plastic.
• Automatic shutdown of the meter after 15 minutes of inactivity.
• Low battery level indicator.

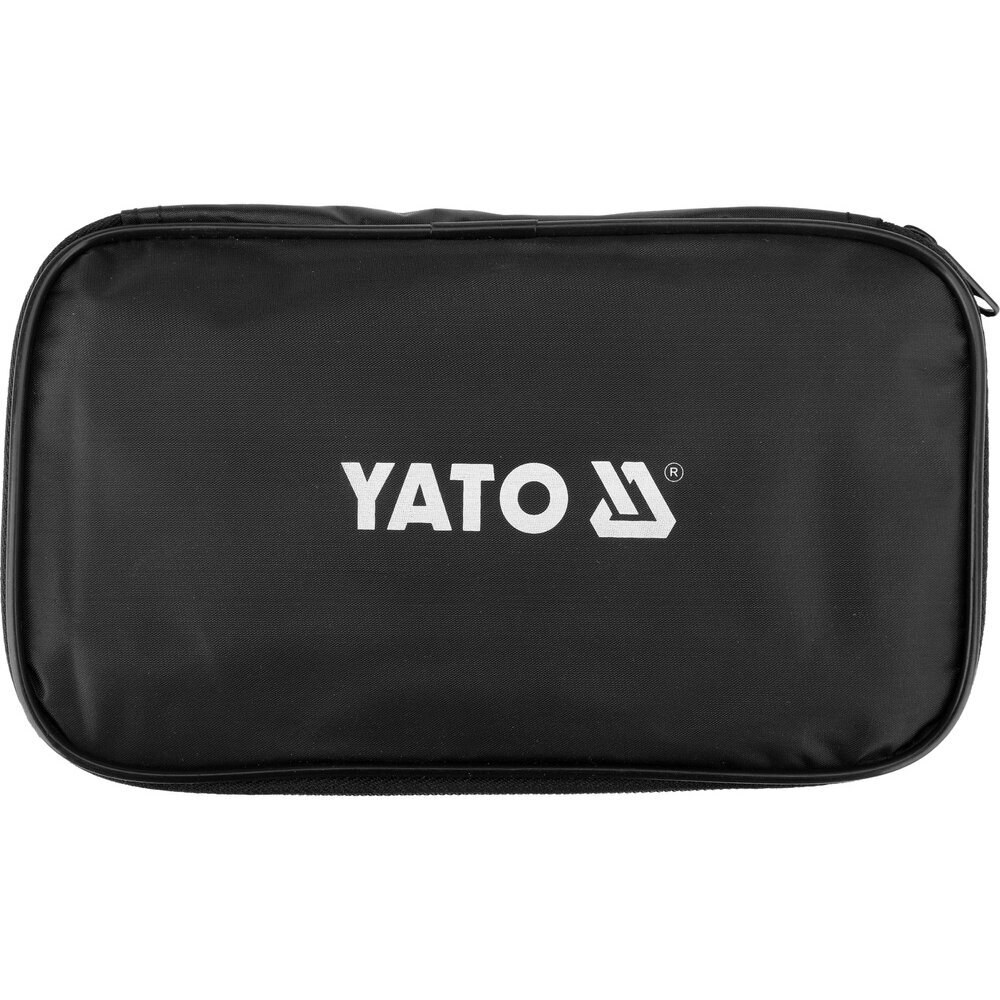

• Soft case with zipper.
• Power supply: 3 batteries 1.5 V (AAA).

Yato
Entity responsible for this product in the EU
TOYA S.A.
Series
GRF
Symbol
YT-730896
