Description
for extracting / pulling ball joints of e.g. anti-roll bar, control arm, tie rod and other ball joints
suitable for many automobiles and light trucks from Ford, Volkswagen, Mercedes, Audi, Skoda, Citroen, Peugeot, Renault, Fiat, Mazda, Toyota etc.
also suitable for pulling bearings and bushings

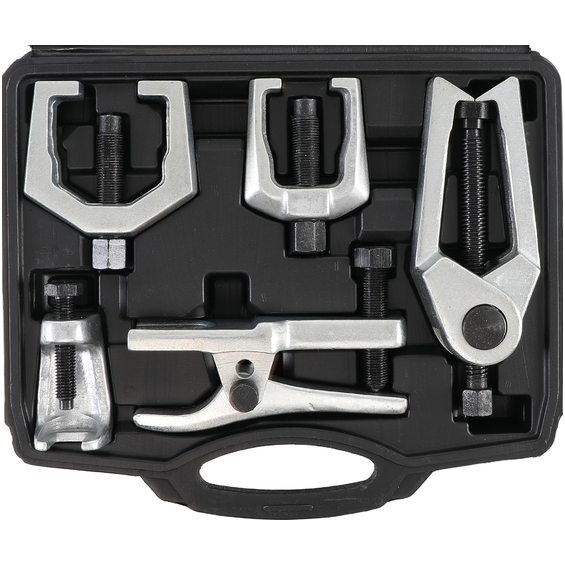

Scope of delivery:

2-Arm Tie Rod Ball Joint & Drop Arm Puller
opening: 33 mm / width: 28 mm
opening (inside): 55 mm / height (inside): 55 mm
spindle: M16 / drive: 19 mm outer hexagon
forged & galvanized
2-Arm Tie Rod Ball Joint & Drop Arm Puller
opening: 18 mm / width: 18 mm
opening (inside): 45 mm / height (inside): 50 mm
spindle: M16 / drive: 19 mm outer hexagon
forged & galvanized
Tie Rod Ball Joint Extractor
opening: 18 mm / width: 28 mm
height: 50 mm / spindle M12 x 1.75
drive: 19 mm outer hexagon
forged & galvanized
Control Arm Ball Joint & Tie Rod Ball Joint Extractor
opening: 20-22 mm / length: 155 mm
extracting range: 2 steps max. 30 or 55 mm
drive: 21 mm outer hexagon
2-Arm Bearing Puller, adjustable
leg wide: 16 mm / length: 160 mm
spindle: M14 / leg (inside): 75 mm
leg height (inside): 75 mm
drive: 17 mm outer hexagon
Technical data
Gross weight 4650 g
