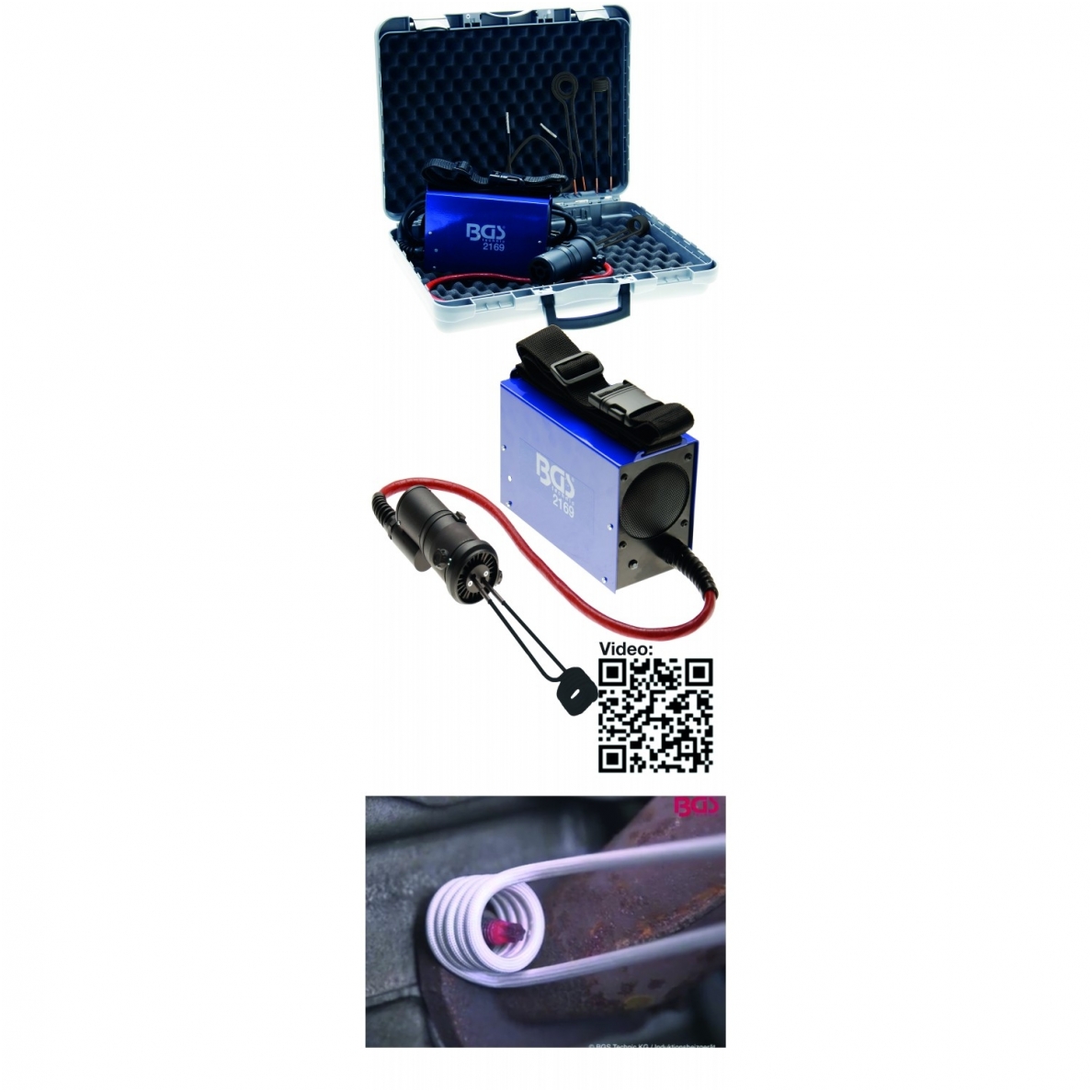

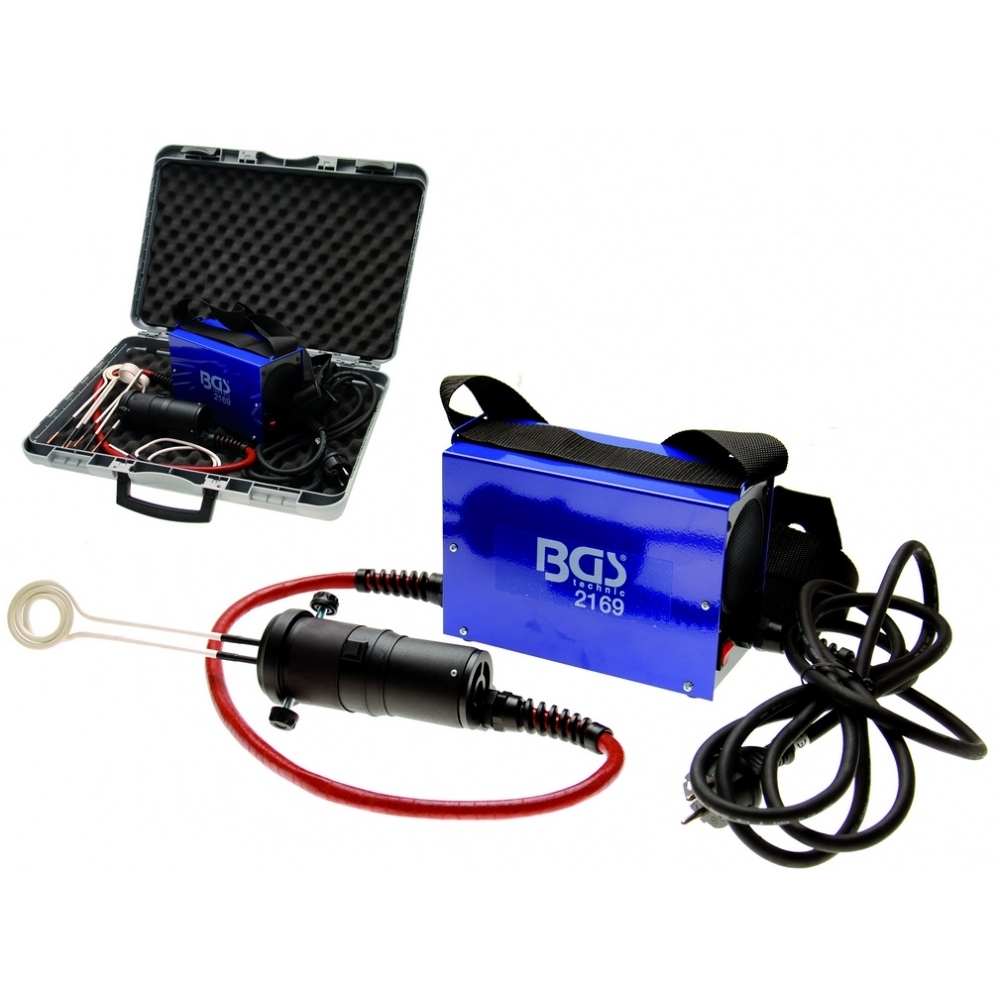

Rankinis indukcinis kaitintuvas/šildytuvas

- Principle of operation:
There is an alternating magnetic field.
The metallic object (e.g. nut), in the induction coil,
acts on the induced eddy currents
as an electrical resistance and thus heats up.

- allows heating of screws / nuts without
severely heating surrounding components or
even destroying them, as it is often the case
when heated with a torch
- within the shortest possible time, e.g. rusty nuts
are heated and can be loosened
- using for e.g. ball joint pinch bolts
and other items on axle and engine
- also for heating components such as
bearings

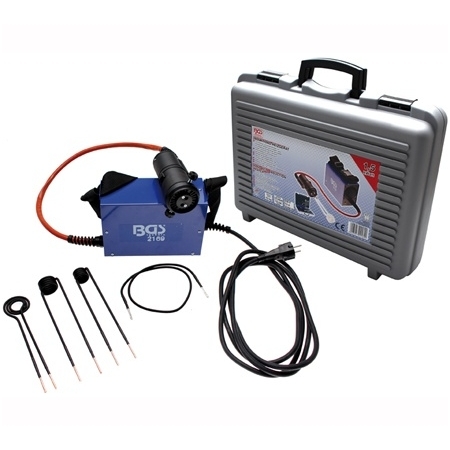

- includes the following induction coils
inductive coil 19 mm, 220 mm long (for Ø 10-16 mm)
inductive coil 27 mm, 220 mm long (for Ø 17-24 mm)
induction coil 50 mm, 235 mm length (for heating small sufaces)
formless coil, 780 mm, for heating of components (bearings, etc.)
- power supply: ~230V (50-60Hz)
- current: 7.5 Amps
- max. power: 1.5 kw
- dimensions: 200 x 140 x 75 mm
- protection class IP20
- weight 4.5 Kg
