Raktas dinamometrinis 3/8", 13-110Nm.
Raktas dinamometrinis 3/8", 13-110Nm.
Kodas: (57300)3135 €Šią prekę turime sandėlyje.Pusiau profesionali linija.
Prekės ženklasVOREL-
Prekės numeris 57300
EAN 5906083573002
dydis 3/8 "
Bendras ilgis (mm) 250
chromo apdaila
Veikimo diapazonas 13,6-108,5 NmProduct description
The torque wrench is a precision torque measuring instrument. Used to twist the threaded fasteners so that the connection moment is known and suitable for the type of material and the strength of the screw and nut.

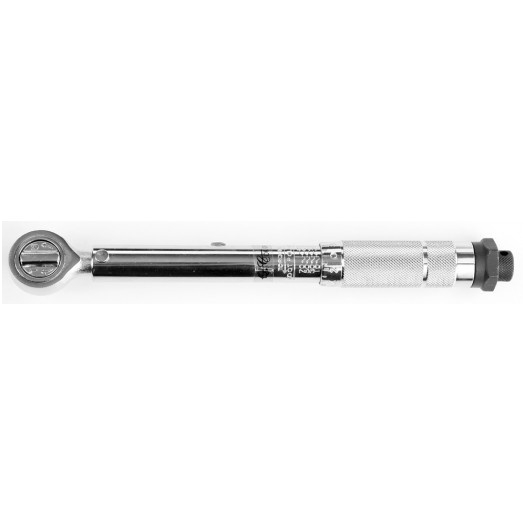

The key consists of a head with a square stem and a force transmission arm. The head is used for fixing the hex head.Comparison of moments in different units of length and strength:
1 kG * cm = 13,887 OZ * IN (ounce x inch)
1 kG * cm = 0.867 LB * IN (lb. in)
1 kG * m = 9,80665 N * m (Newton x meter)
1 kG * m = 7,233 LB * FT (lb.ft)
1 FT * LB = 12 LB * IN (lb. in)
1 dm * N = 14.16 OZ * IN (ounce x inch)
Destination / Application
It is mainly used in automotive technology for precise fixing and wherever the manufacturer has specified the required tightening torque of the joint.
How to use

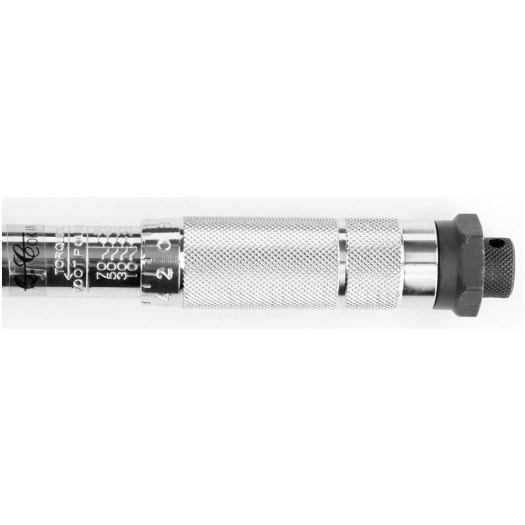

- Select the appropriate scale Nm or in-lbs. Unscrew the locking screw at the end of the micrometer dial to the stop.
- Set the micrometer dial so that "0" on the scale of the knob coincides with the vertical line on the key arm.
- Turn the micrometer dial clockwise until the desired torque is set. The desired torque is set when the pitch on the micrometer dial will overlap with the vertical line on the key arm.
Then tighten the locking screw as far as it will go and set the right direction of rotation of the ratchet, after which the key is ready for use.
- Insert the appropriate cap on the key spigot. During tightening, reaching the set torque is indicated by a click of a key. If you hear or feel clicks, you should stop tightening.

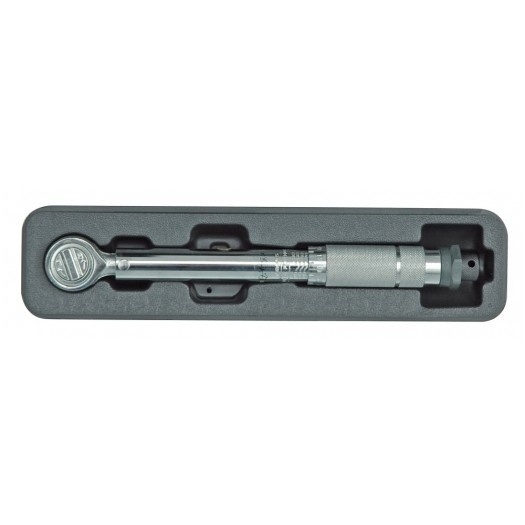

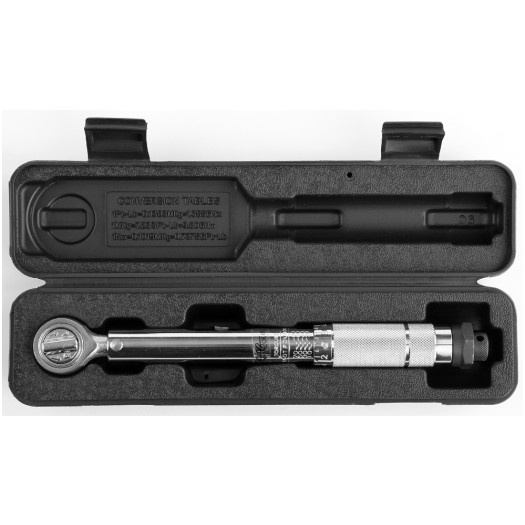

Contents of the package
- torque wrench
- user manual
- Warranty Card
- suitcase
Technical data
Index Number 57300
EAN 5906083573002
Marka Vorel
PCS unit
Gross Weight (kg) 0.8750
Master Carton MC 20
Pal 360
Length [mm] 270
packaging BMC
Drive size [inch] 3/8 "
Torque value [Nm] 13.6-108.5
