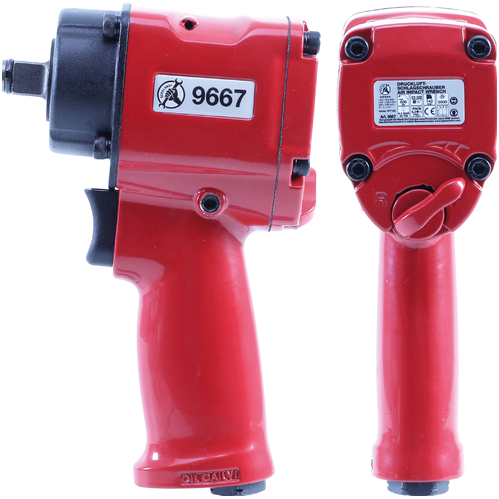

Description
short shape, particularly suitable for low space areas
twin hammer mechanism
compressed air inlet: 6.3 mm (1/4")
vibration level: ahd = 5,99 m/s² / K = 1,1 m/s²
min. working speed 450 Nm
sound pressure level 94. dB(A)
sound power level 105.6 dB(A)
air consumption 142 l/min
weight 1.45 kg
max. loosening torque 630 Nm
max. working speed 610 Nm
length 92 mm
operating pressure 6.3 bar
hose diameter 10 mm
max. drive speed 8500 rpm
Technical data
CE Standard Yes
Drive profile size, metric 12,5 mm
Output profile External square
Drive profile size, inch 1/2 "
Gross weight 1980 g
