Padangų montavimo staklės 1,1 kW 10–20" ratlankiams

Index
YT-08042
Barcode
5906083128752
Unit of measure
PCE
Volume
679.744
Weight
203

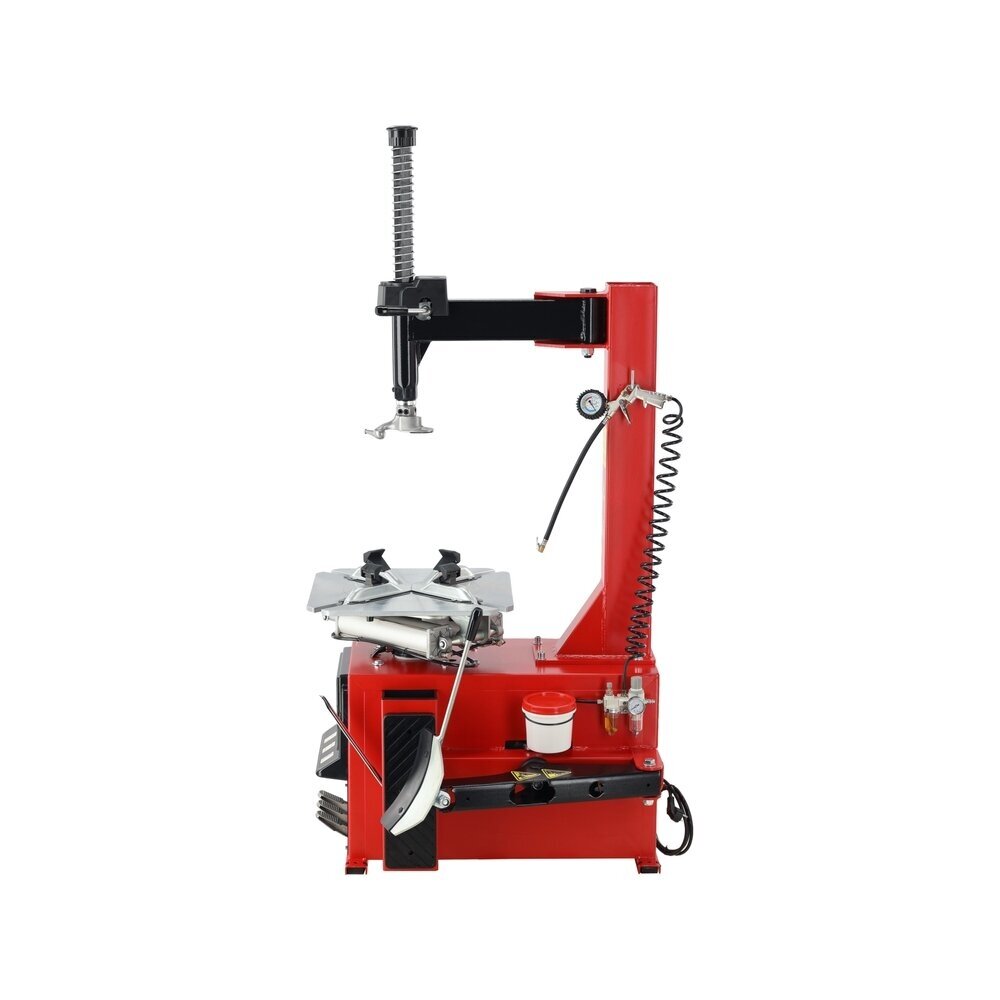

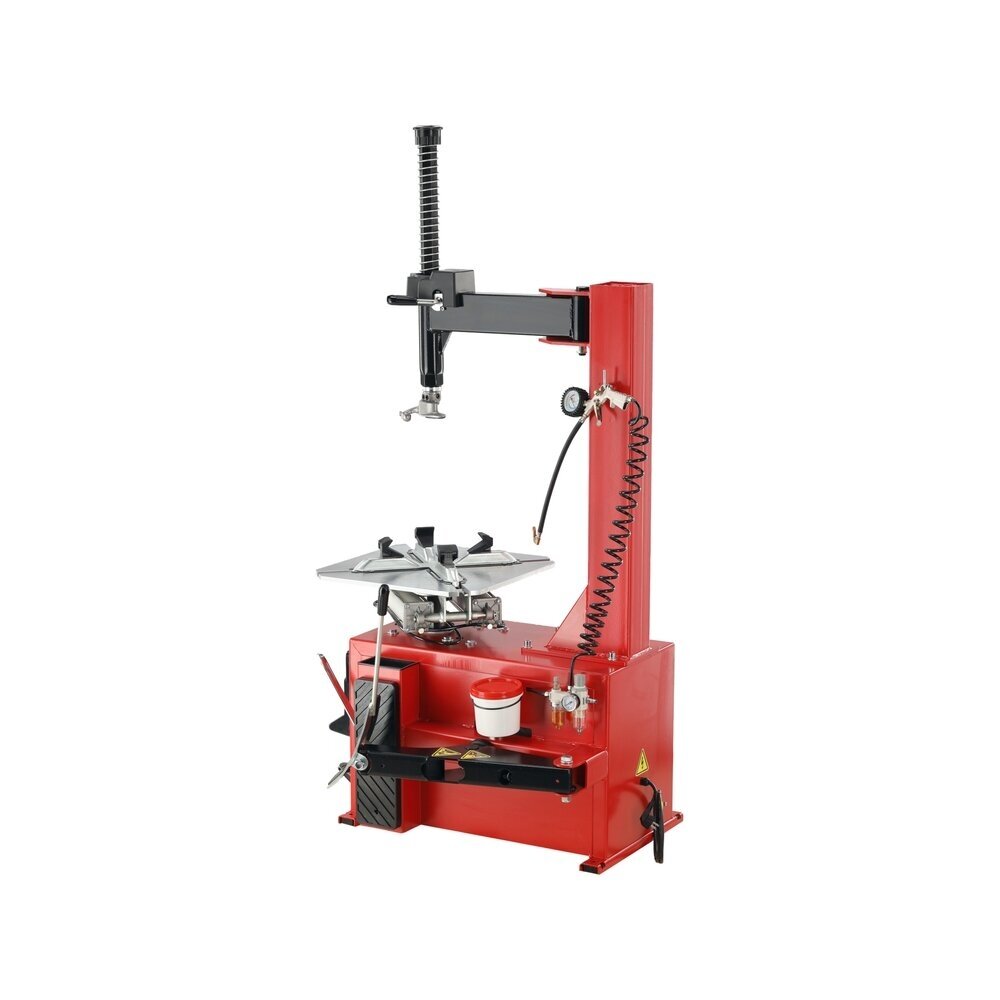

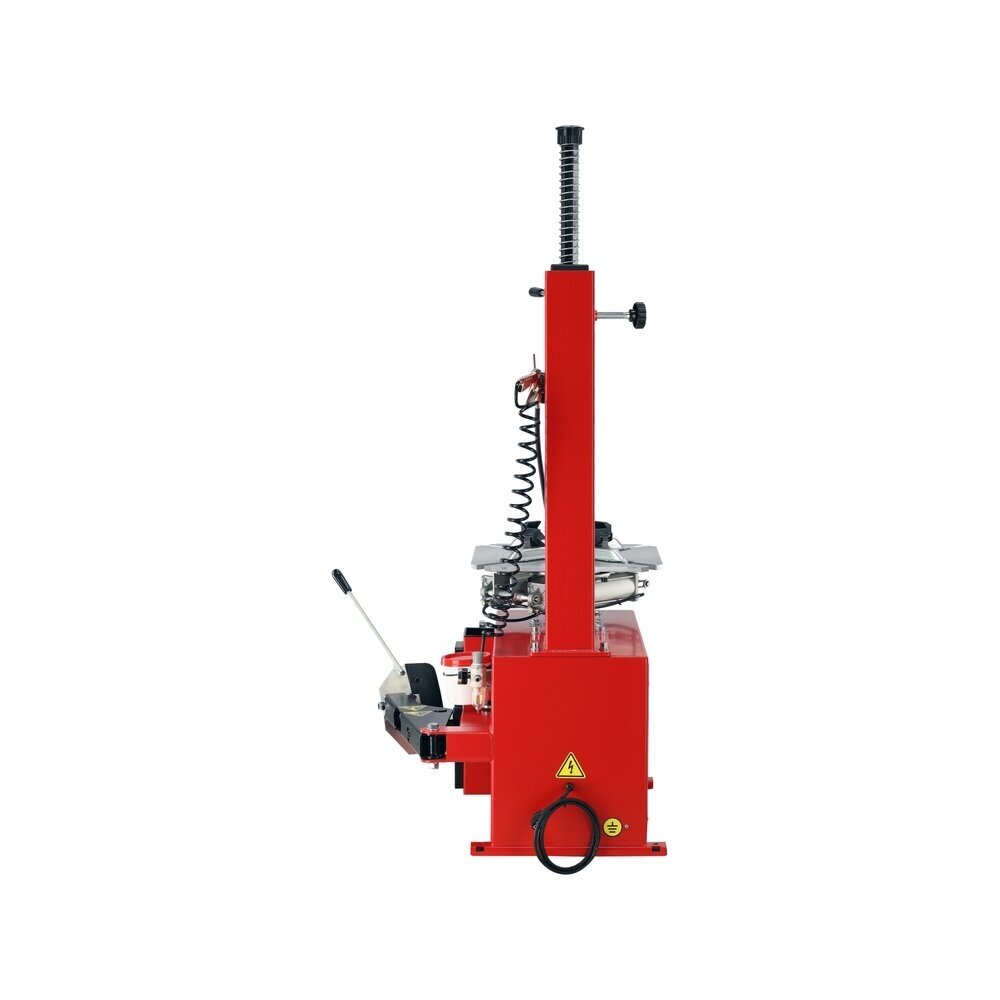

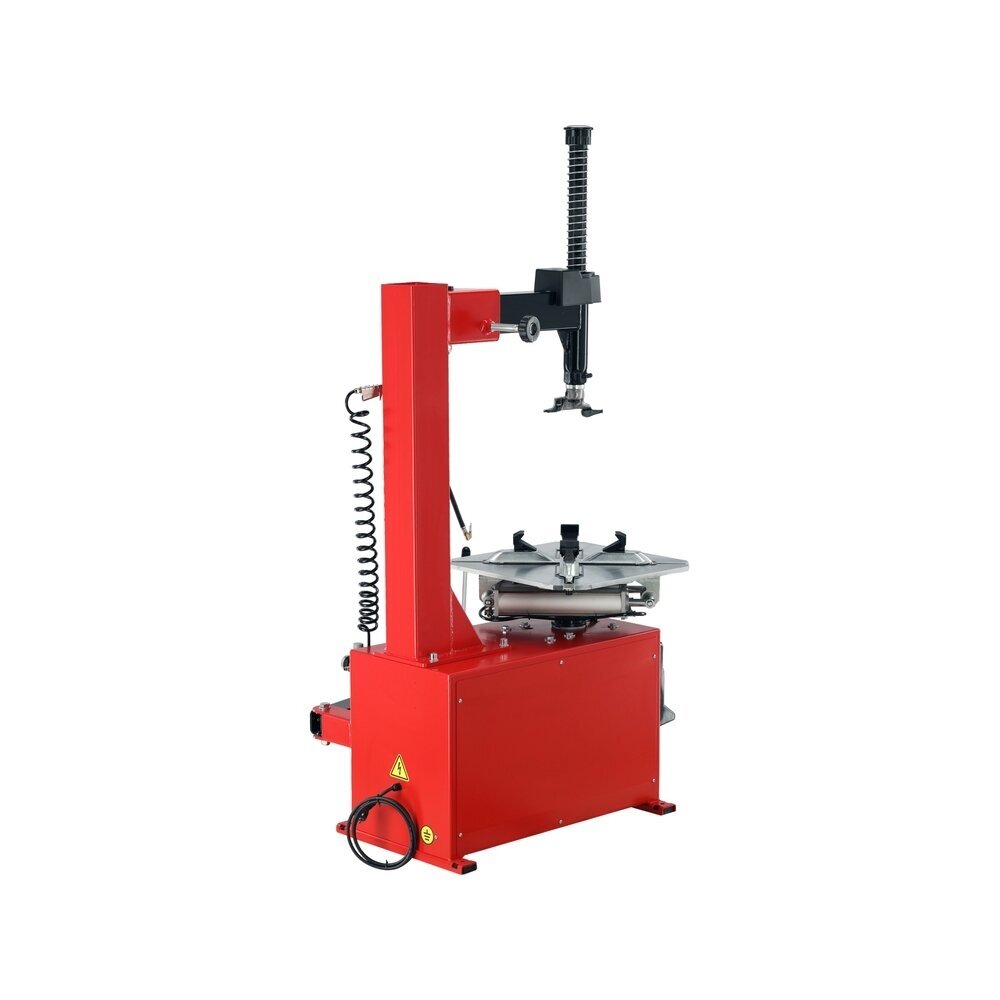

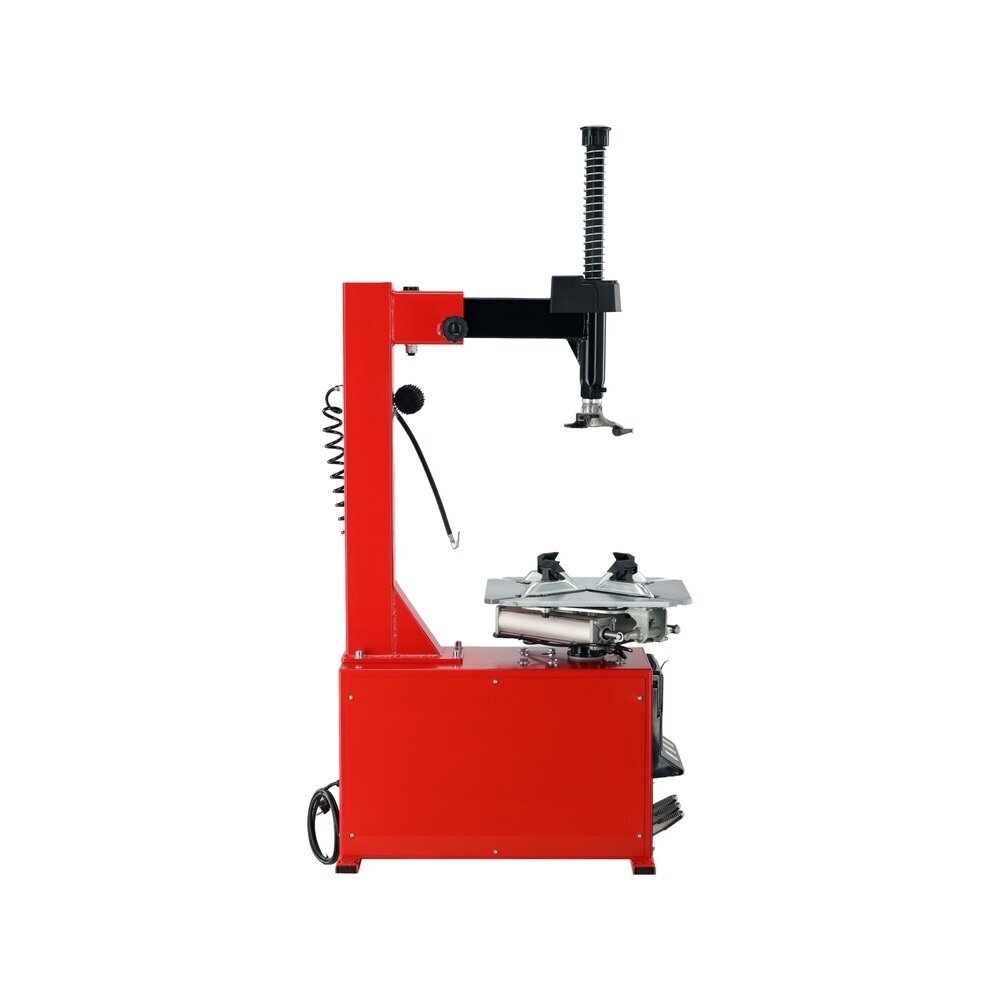

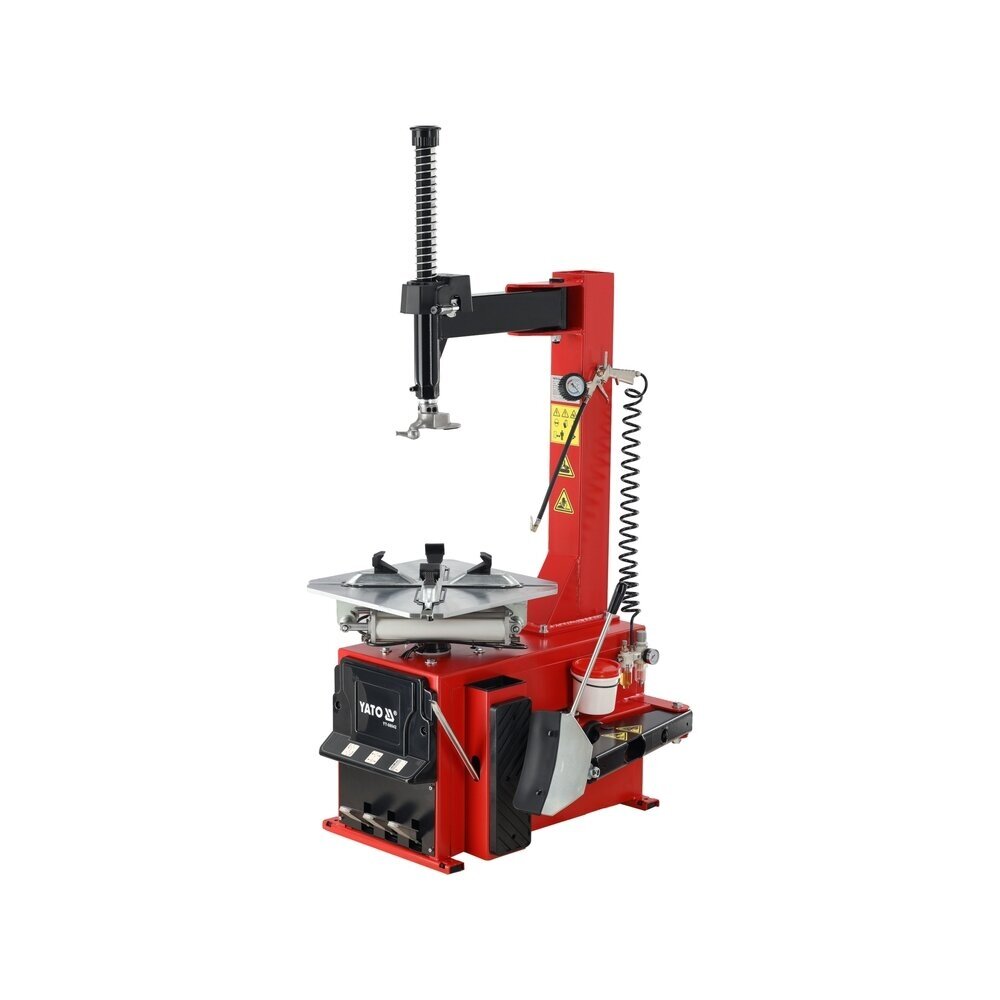

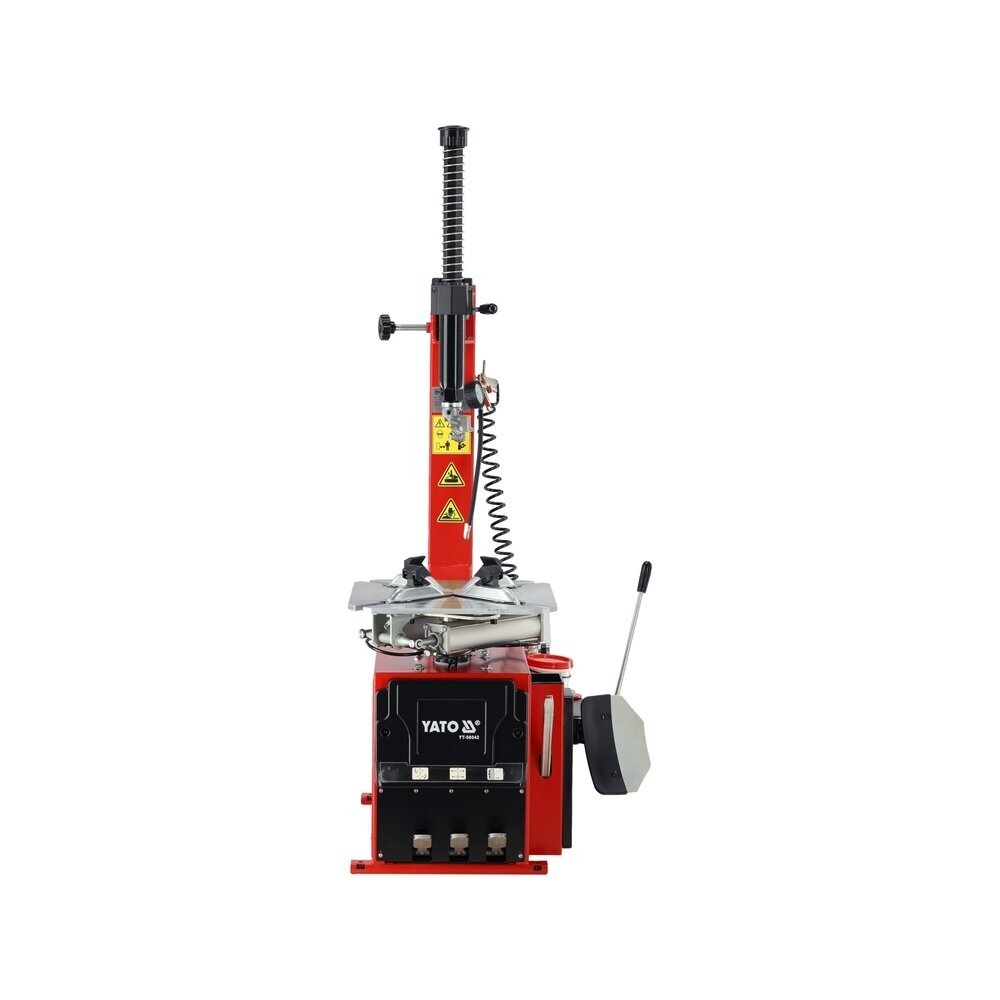

The tire changer YT-08042 is designed for professional mounting and demounting of automotive tires, as well as performing basic wheel maintenance tasks. Its robust construction, pneumatic control system, and appropriately selected working parameters enable efficient handling of a wide range of rims and tires used in passenger cars and light commercial vehicles.

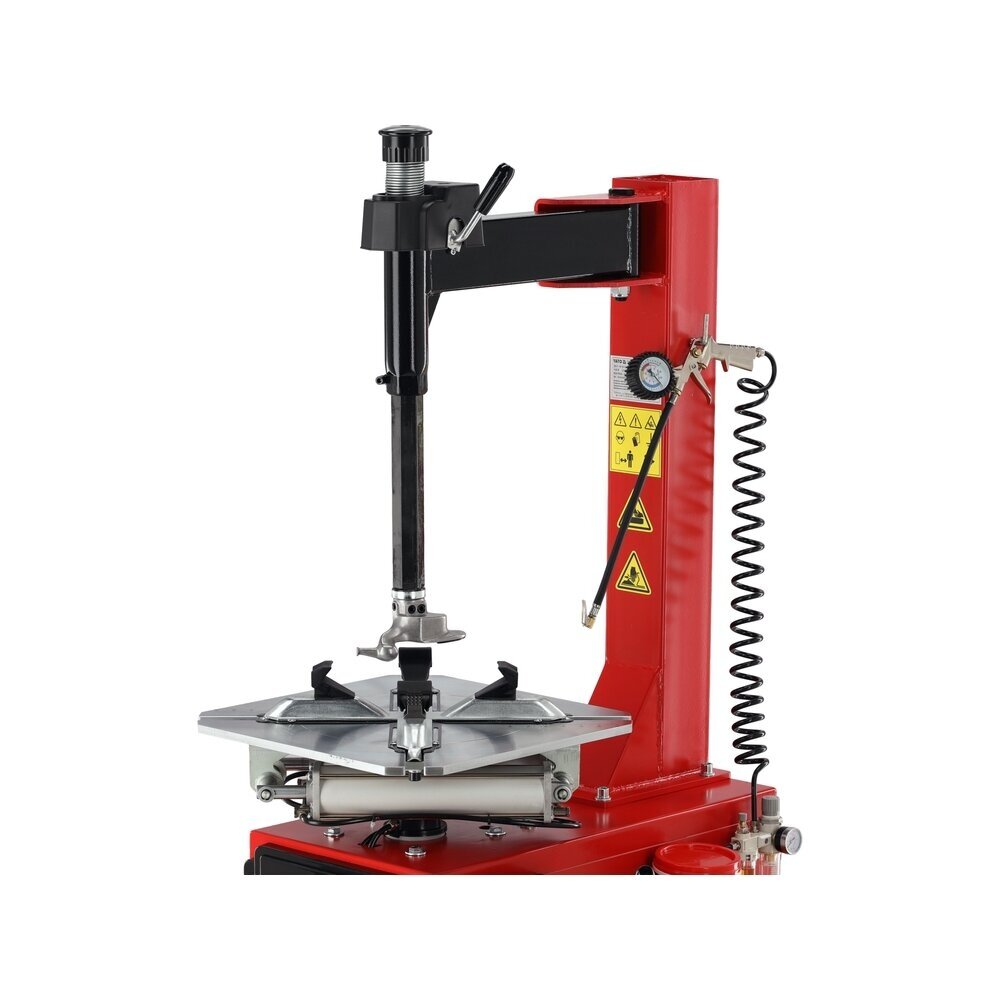

The device is equipped with a rotating table with clamps, an efficient tire bead breaker with a force of 2500 kg, and a mounting head that works in conjunction with an adjustable working arm. The integrated pneumatic system ensures effective rim clamping, bead separation from the rim, and tire inflation after the mounting process is completed. The ergonomic control system using foot pedals allows the operator to maintain full control over the workflow.

Key Features:

designed for mounting and demounting automotive tires
pneumatic rim clamping system

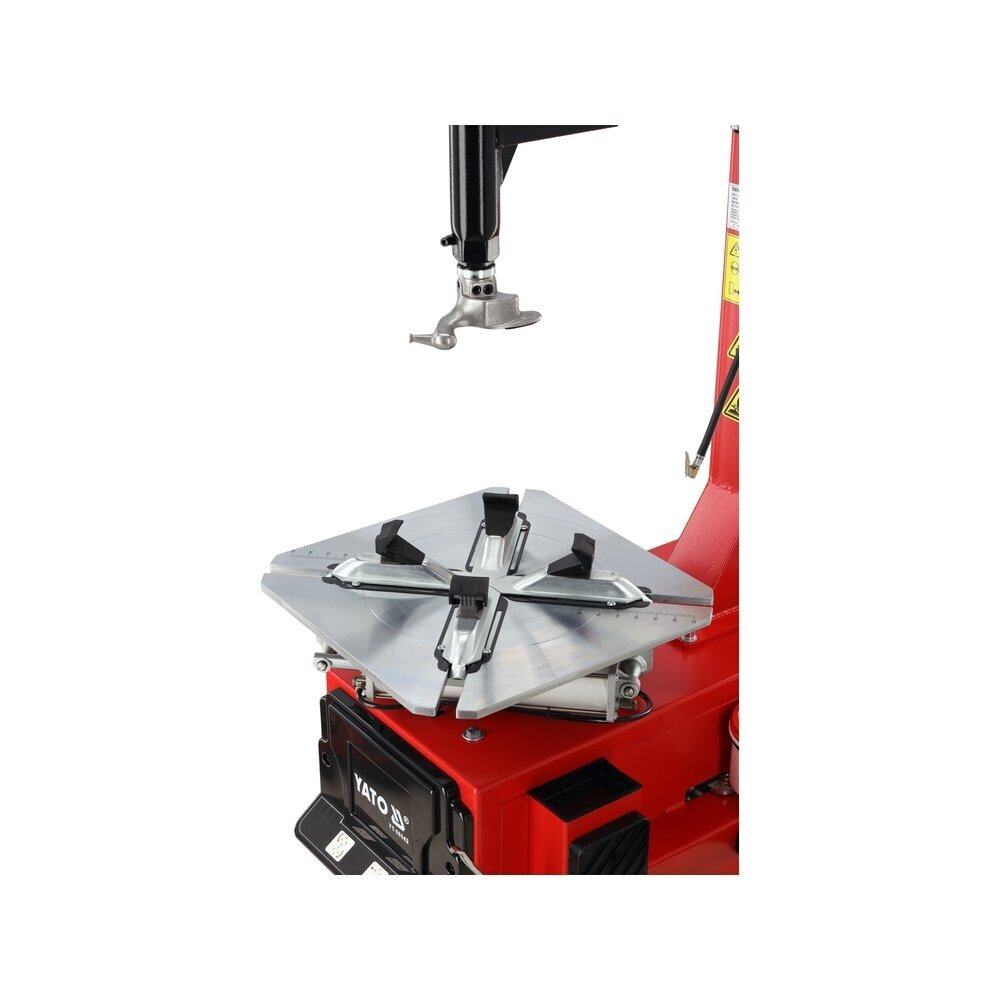

rotating working table with internal and external clamps

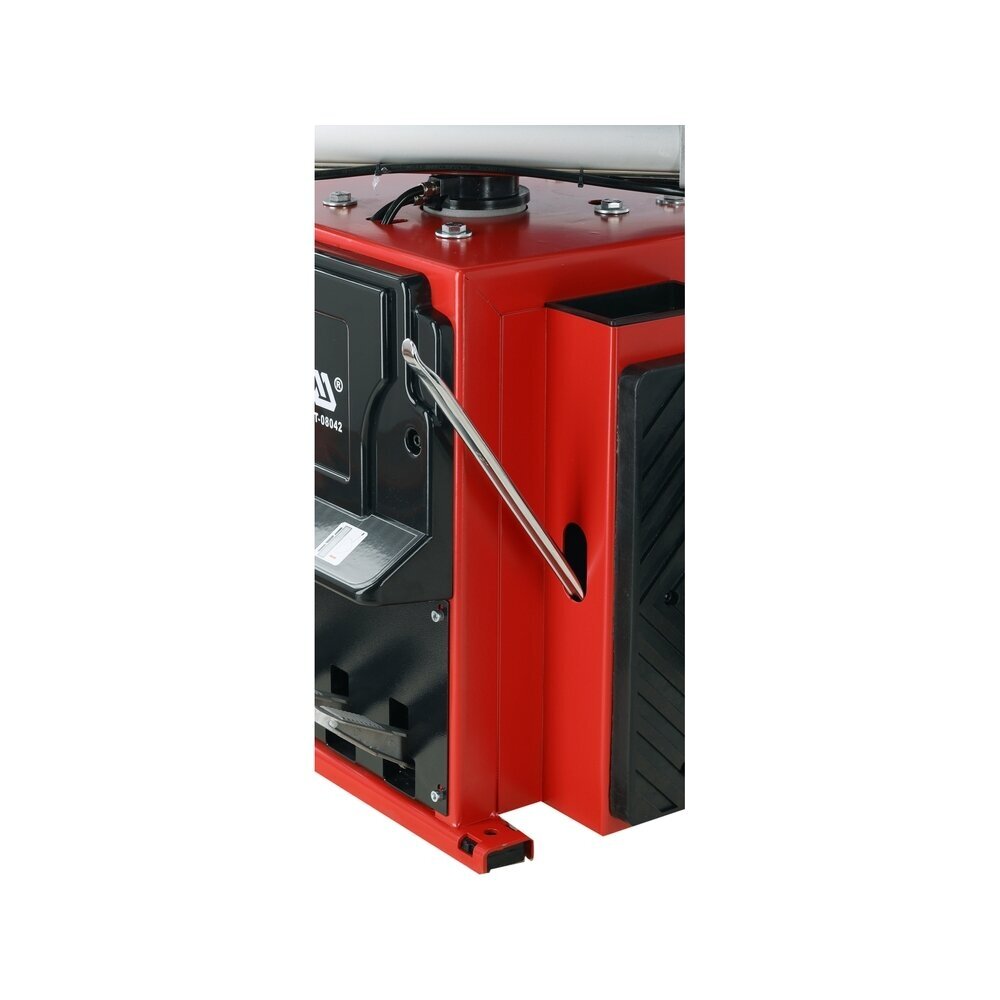

efficient tire bead breaker with a force of 2500 kg

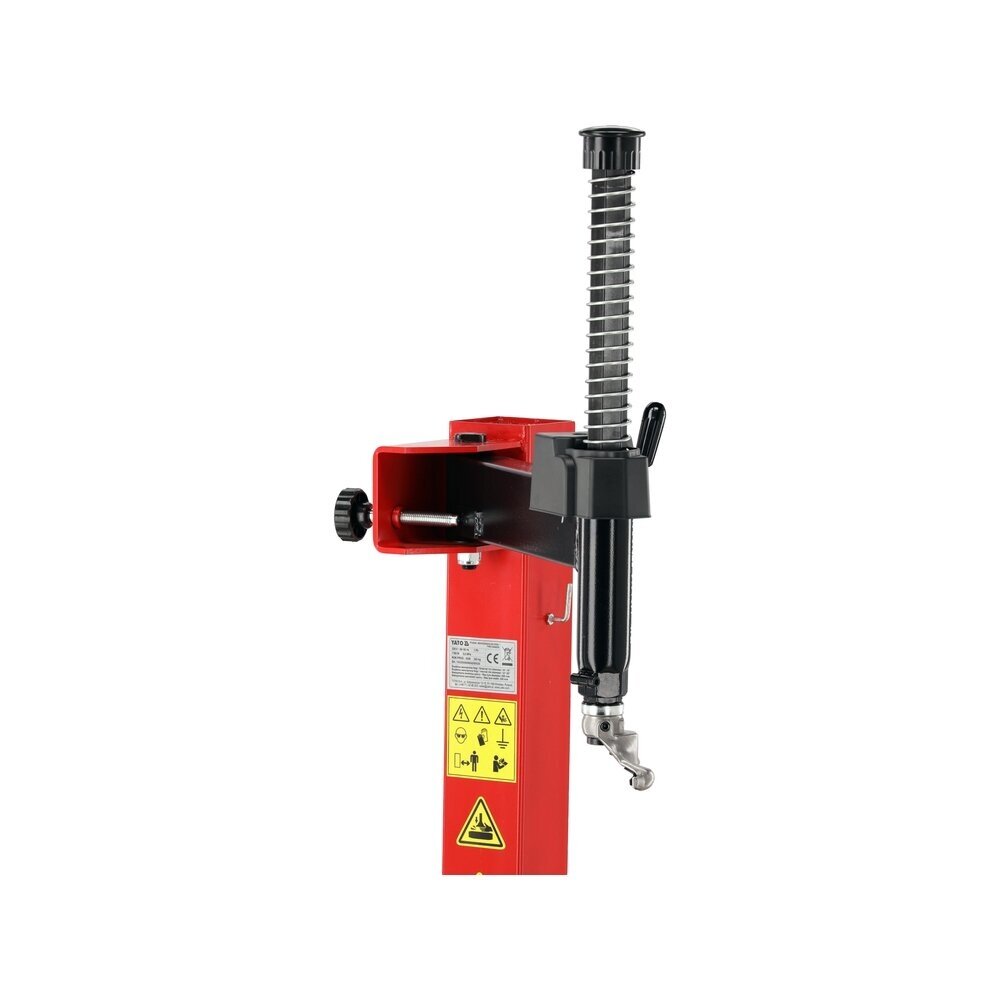

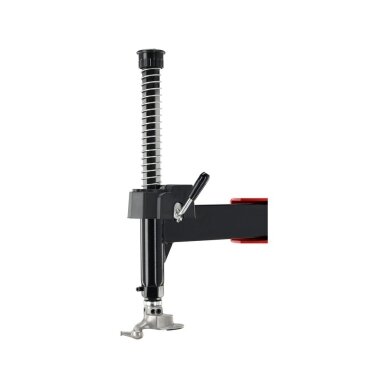

mounting head compatible with an adjustable hexagonal shaft

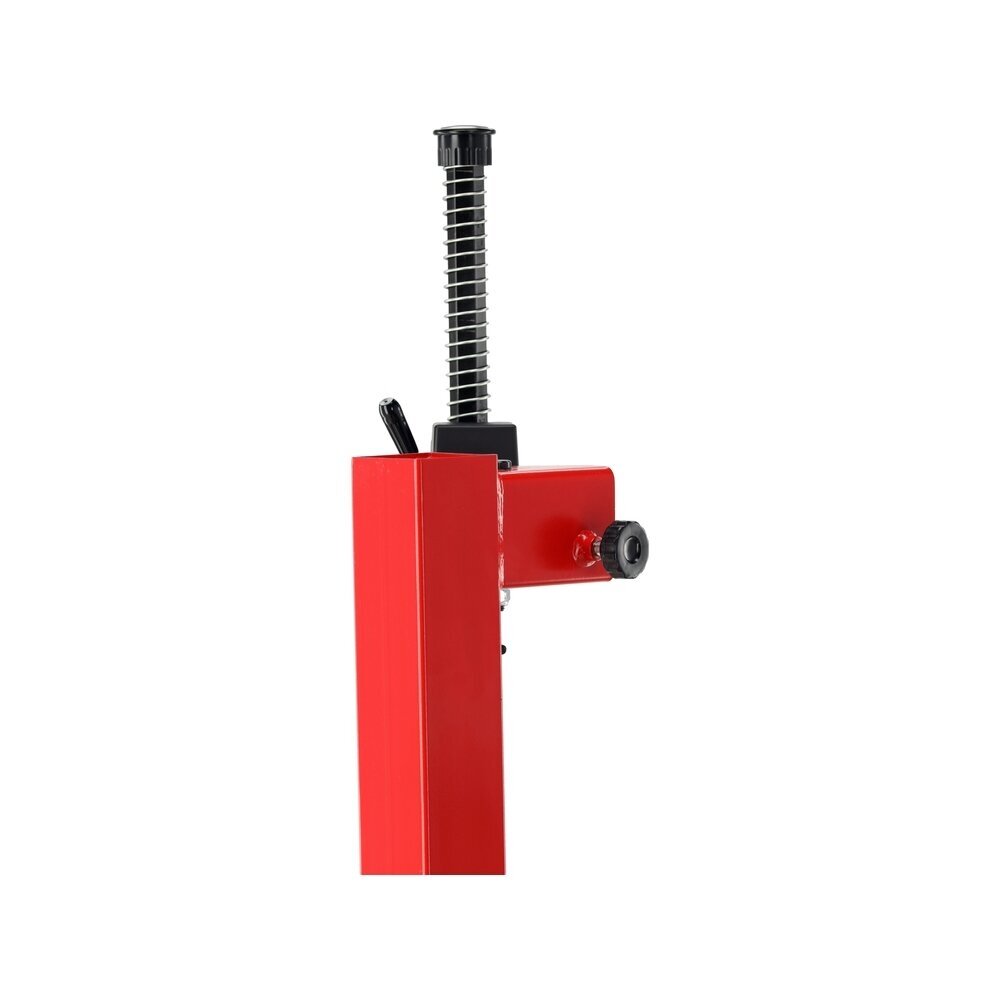

adjustable horizontal arm with position lock
control of working functions via ergonomic foot pedals

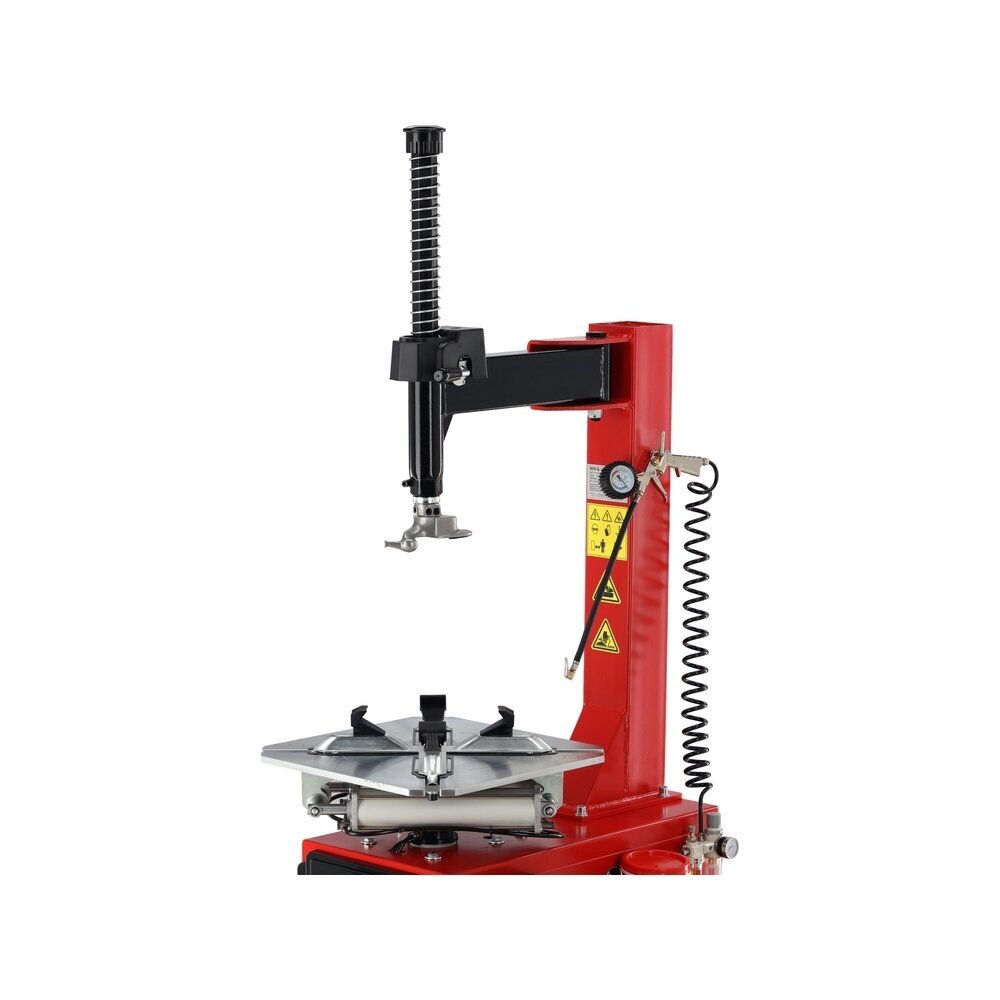

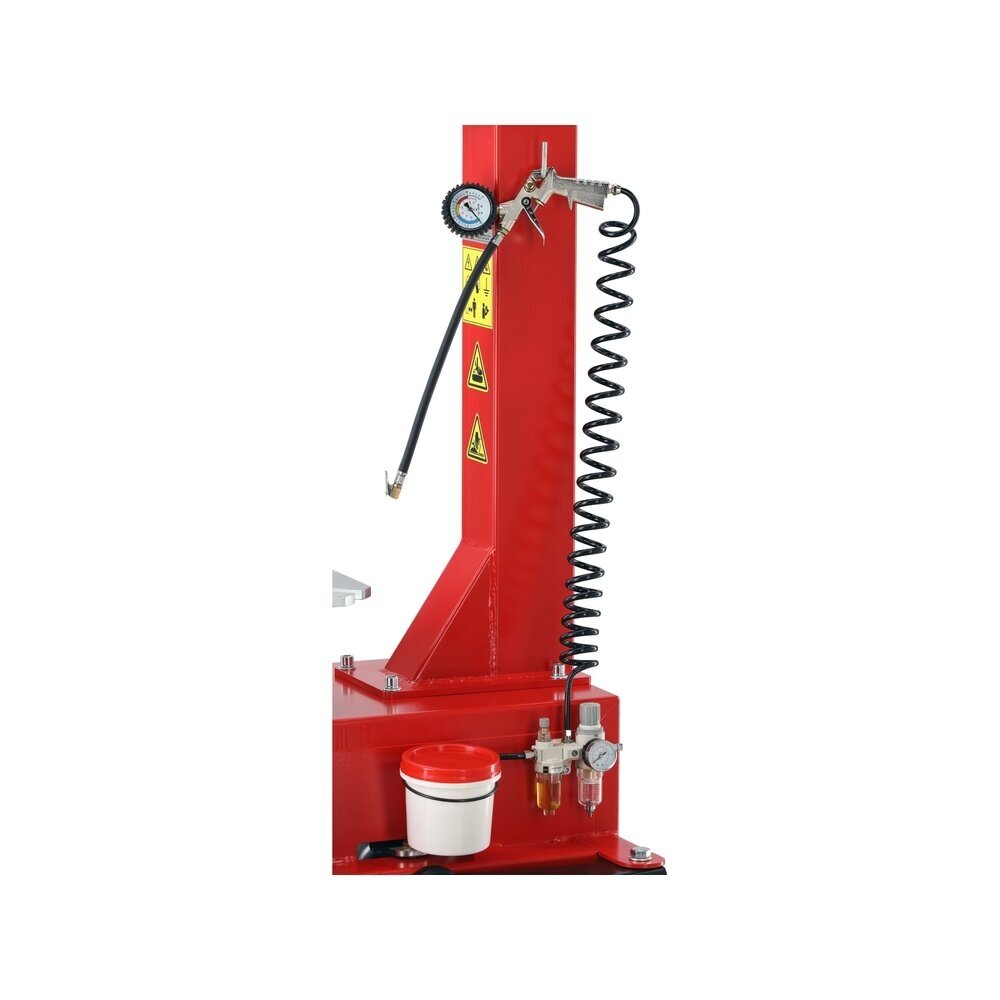

integrated tire inflation gun with pressure gauge
stable construction adapted for intensive workshop use
capable of handling a wide range of rim and tire sizes

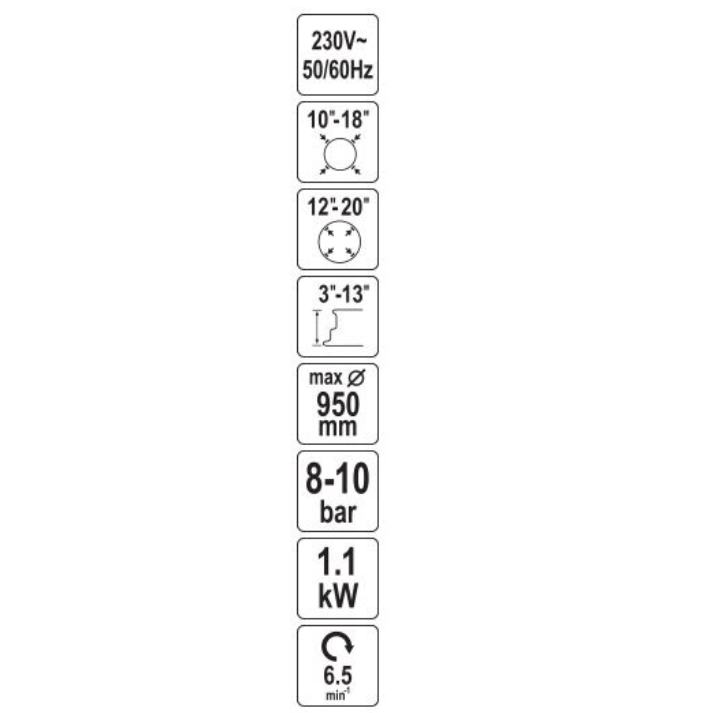

Technical Specifications:

motor power: 1.1 kW (1100 W)
number of phases: 1
table rotation speed: 6.5 rpm
required working pressure: 8-10 bar
air pressure at the inlet: 0.8-1.0 MPa
bead breaker force: 2500 kg
noise level: < 70 dB
device weight: 243 kg
Working Range:

external rim clamping: 10"-18"
internal rim clamping: 12"-20"
rim/wheel width: 3"-13"
maximum tire diameter: 950 mm
maximum tire width: 330 mm
Equipment and Working Elements:

rotating table with clamping fixtures

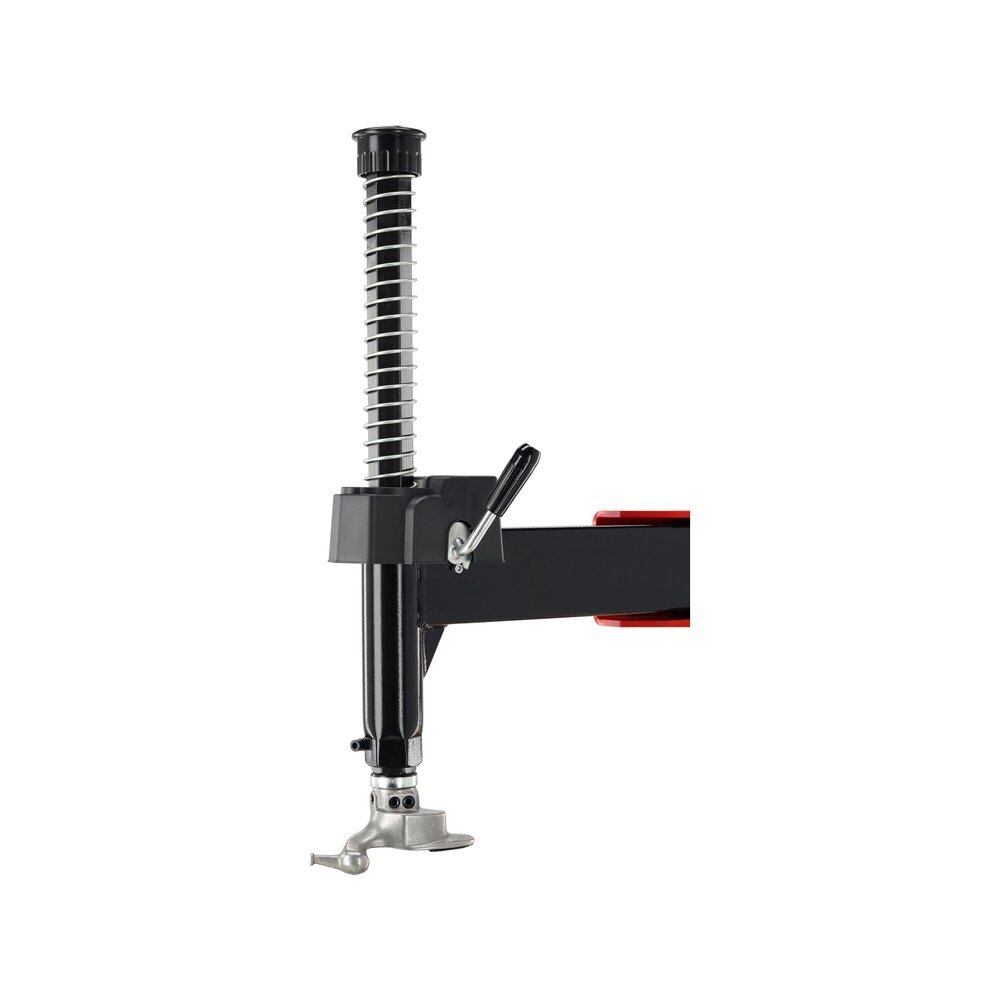

mounting head

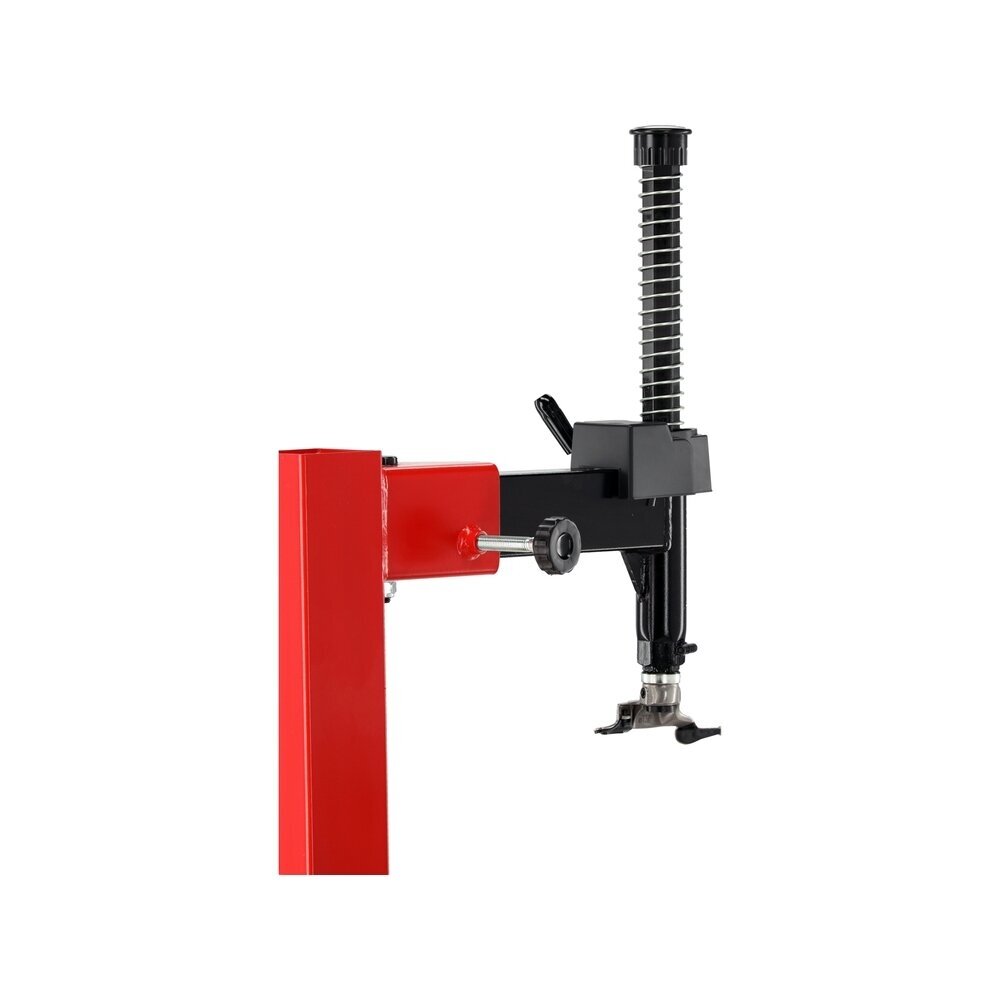

hexagonal shaft with horizontal arm

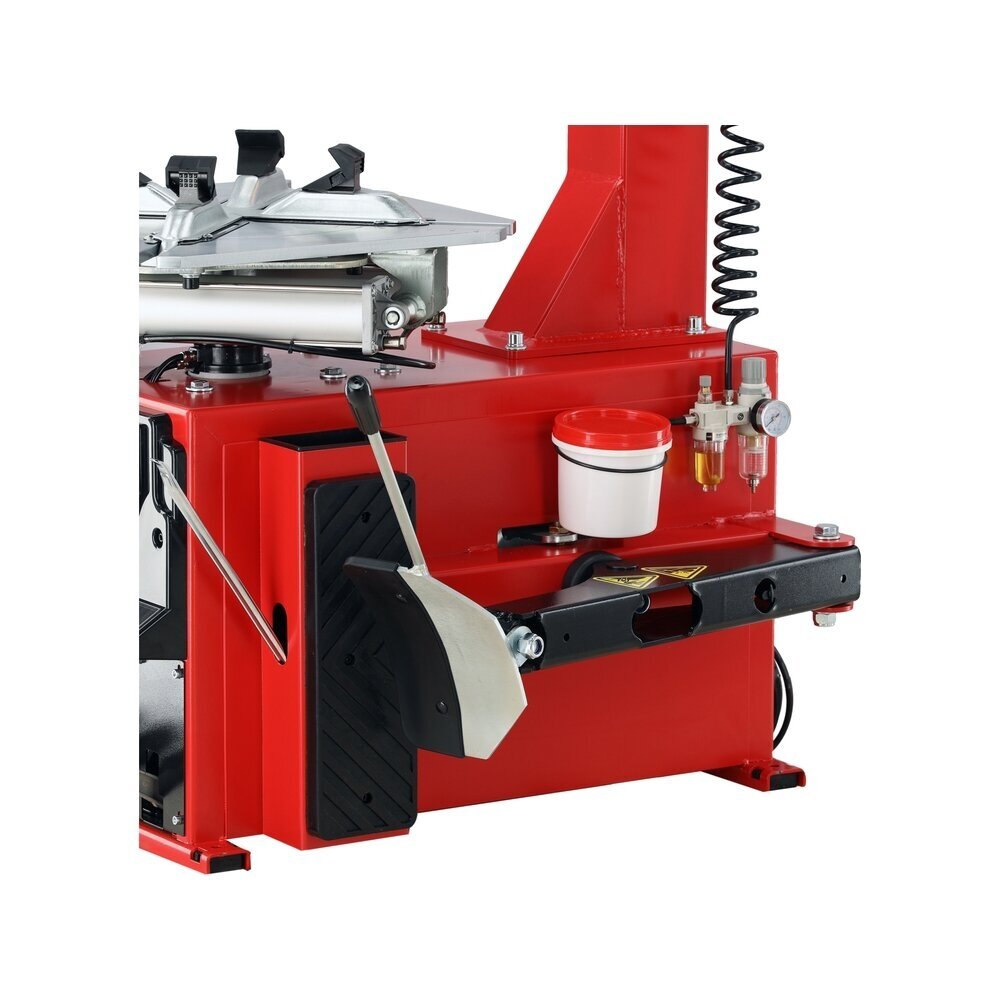

tire bead breaker with pneumatic actuator
tire inflation gun

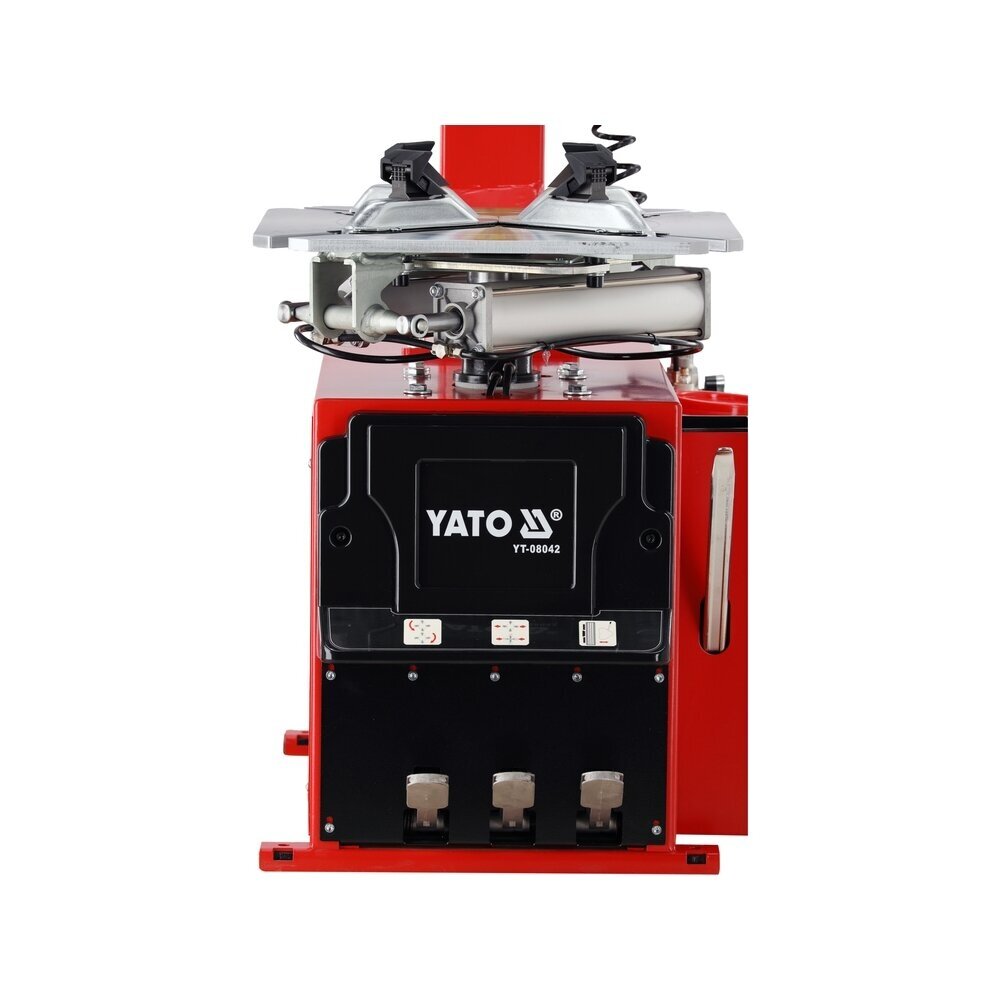

pedal control system
mounting lever (mounting spoon)
Application:

The tire changer is used in automotive workshops, tire service centers, and vehicle service points. It allows for efficient separation of the tire bead from the rim, safe demounting of worn tires, mounting of new tires, and inflation of the wheel to the required working pressure.
