  • Product description

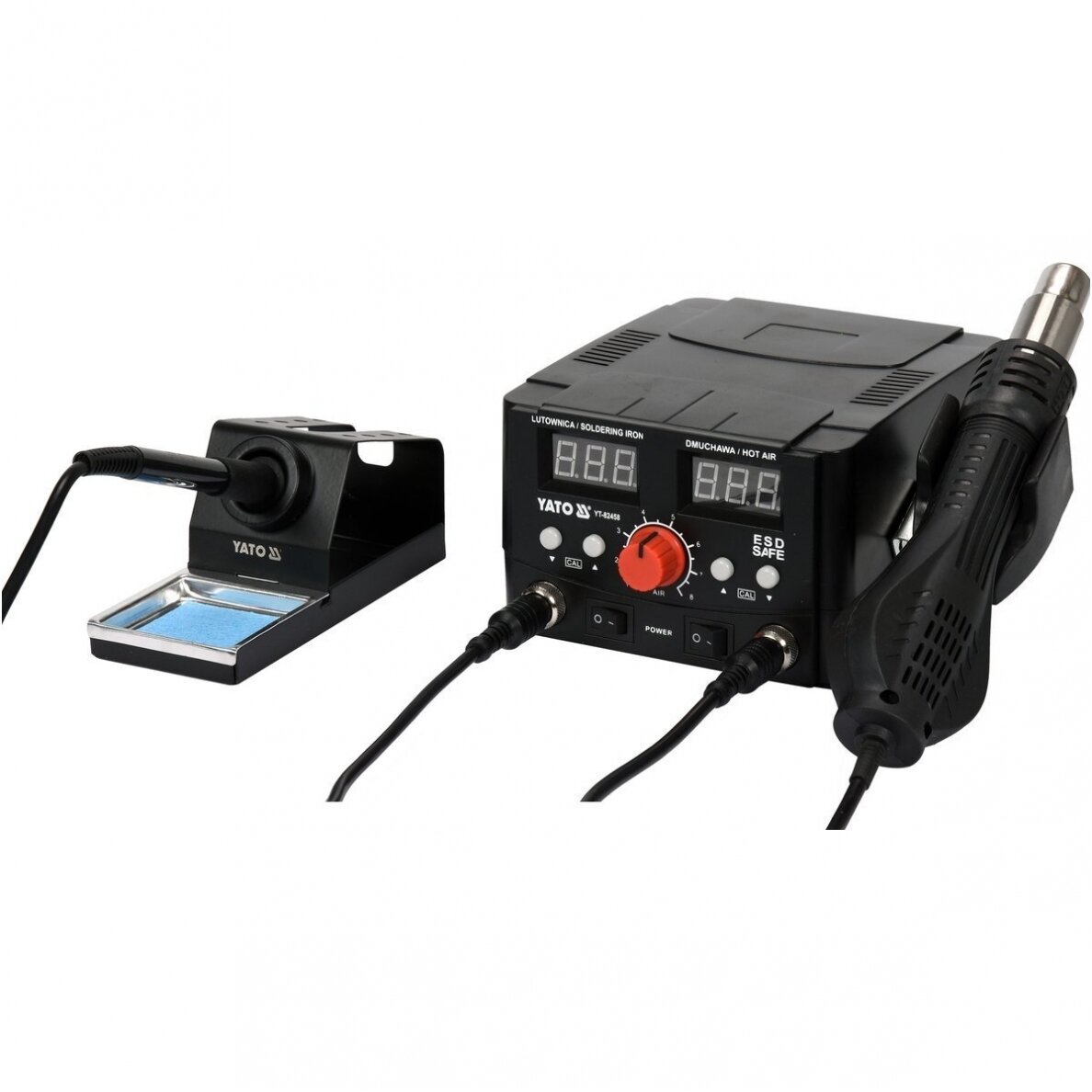

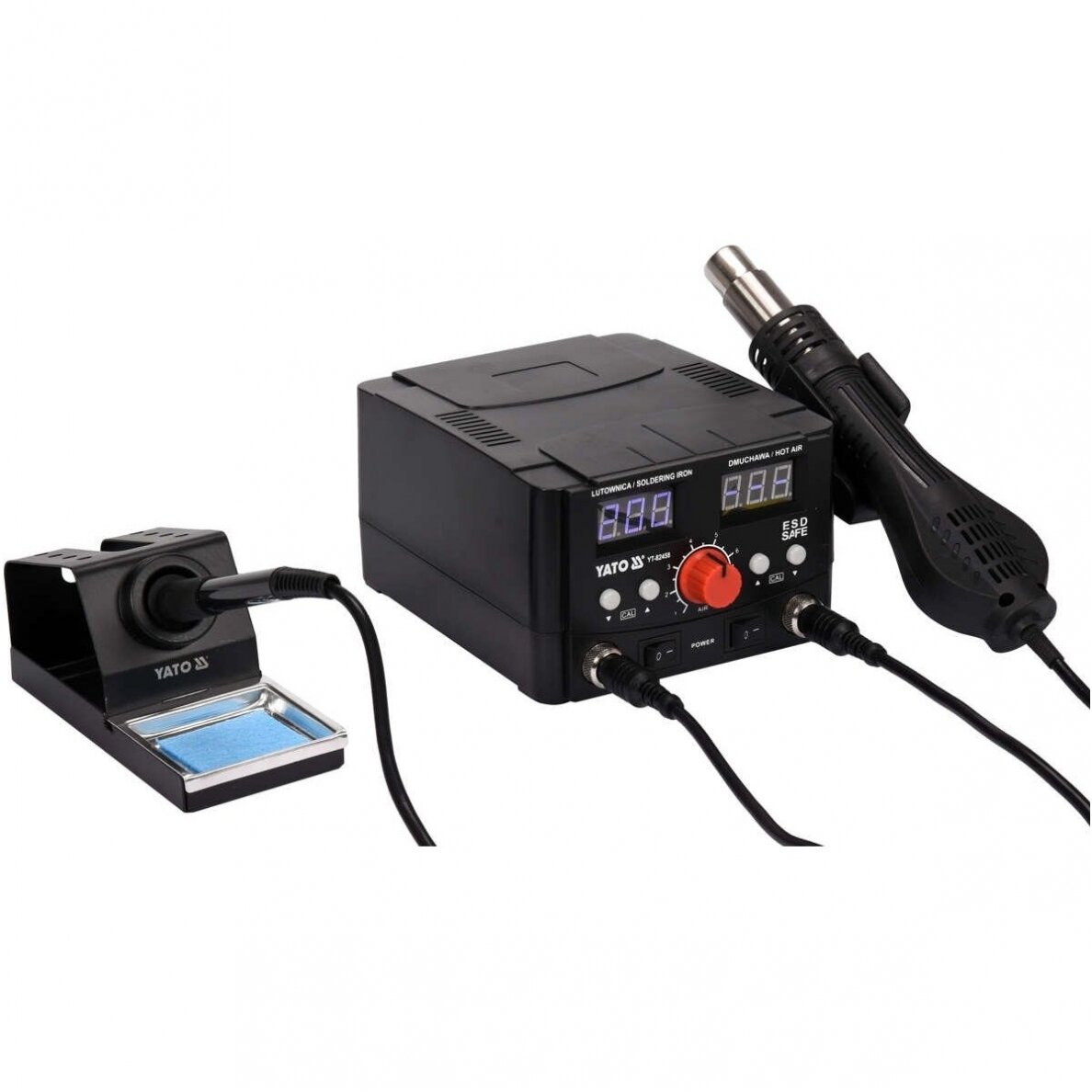

    2-in-1 hot blow soldering station with the symbol YT-82458 with a double LED digital display, temperature control and numerous functions facilitating proper soldering connections. The station supports a 908D soldering iron, adapted to the very popular 900M series interchangeable tips, and a HOT-AIR handle with a blow powered by a brushless fan.

    Soldering station:

    power: 75W
    temperature range: 200 - 480 ° C
    temperature accuracy: + - 1 ° C
    device hibernation: 10 min
    Hot-air station:
    power: 750W
    temperature range: 100 - 480 ° C
    temperature accuracy: + - 2 ° C
    air flow: max 120 l / min
    smooth regulation of air flow
    brushless fan ensures quiet operation
    automatic cooling and hibernation of the device after putting the hot-air handle in the holder on the side of the station
    three round hot-air nozzles with diameters: 4.4mm, 8mm, 10mm
    square hot-air nozzle with a side: 12mm
    Common Functions:
    temperature stabilization
    detection of sensor failures
    on-off buttons on the front
    fuse in the power socket
    The digital dual display with blue LED backlight informs us about:
    set and then the real temperature of the tip / air from the hot-air nozzle
    the station goes into sleep mode
    service messages
    heating tip / hot-air nozzle mode

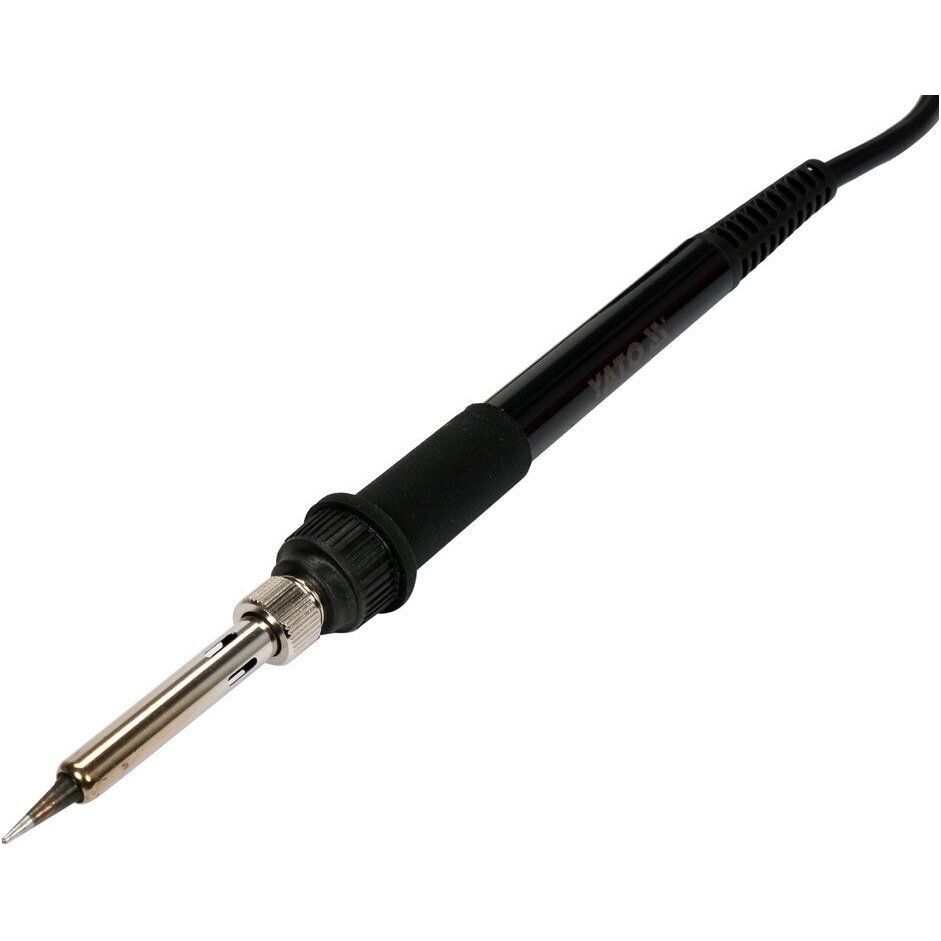

    908D soldering iron to be put on a solid metal stand:
    heater operating voltage: 24V
    tip type: 900M
    ceramic heater
    cable length: 1m
    stock weight: about 100g

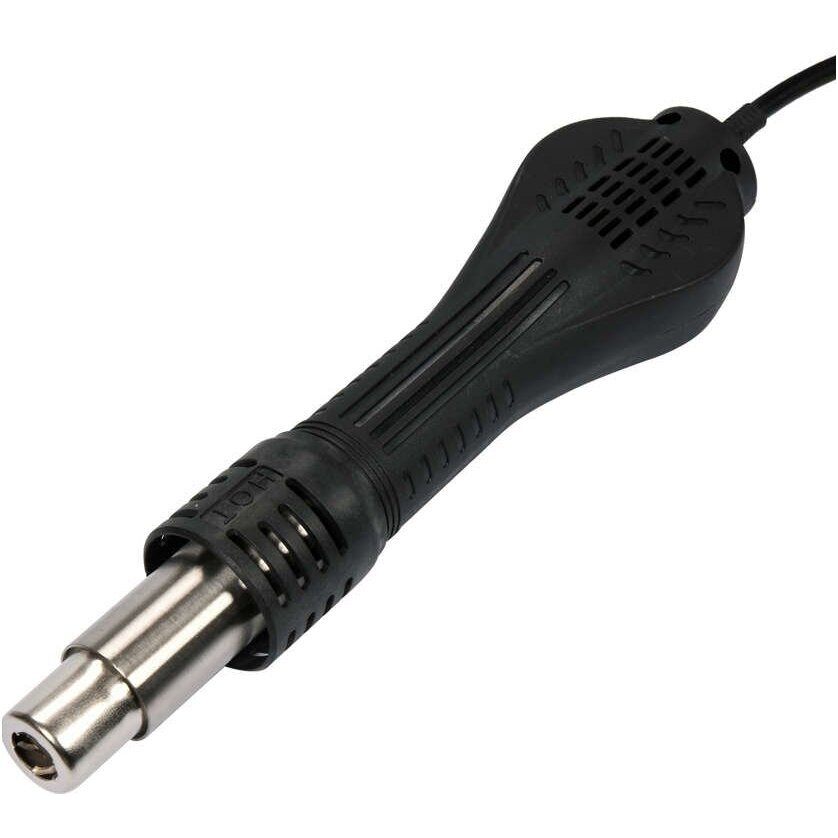

    Hot-Air handle with blower driven by brushless fan:
    nozzle holder diameter: 21mm
    ceramic heater
    cable length: 1m
    handle weight: about 200 g
    The 2-in-1 hot blow soldering station with the YT-82458 symbol is made in ESD-safe technology, which guarantees that excess electrostatic charge will not accumulate on the housing. Thanks to this, we limit the risk of damage to, for example, sensitive SMD circuits. To an operating temperature of 350 ° C, the soldering station heats up in about 15 seconds, the hot blast in about 10 seconds.

    The temperature stabilization function allows to maintain the set temperature of the tip in various conditions of heat demand for the proper soldering connection. The tip, depending on the size of the soldered element and the soldering field, gives off more or less heat, and the device, using the built-in tip temperature sensor, reads its real value on an ongoing basis and compares it to the set one, then, depending on the needs, it increases or decreases the power consumption to maintain the set temperature.

    The device's hibernation function allows the soldering station to go into standby mode, which automatically lowers the operating temperature to 200 ° C. Thanks to this, we avoid unnecessary heating of the tip, which significantly extends its life. The YT-82458 model, or more precisely the soldering station module, will enter the sleep mode after 10 minutes of operator inactivity.

    The automatic cooling function combined with the hibernation function allows the hot-air module to cool the nozzle to 100 ° C, and then go into sleep mode. After the work is done, the operator should put the handle in a plastic handle with a built-in sensor activating element, then the nozzle cools down and automatically hibernates. Lifting the handle from the handle automatically activates the hot-air module to the previously set parameters

    The sensor failure detection function enables auto-diagnosis of electronic circuits necessary for the proper operation of the device. After turning on the power button, the station goes through a self-diagnosis and in case of problems it displays an error message.
