Product description

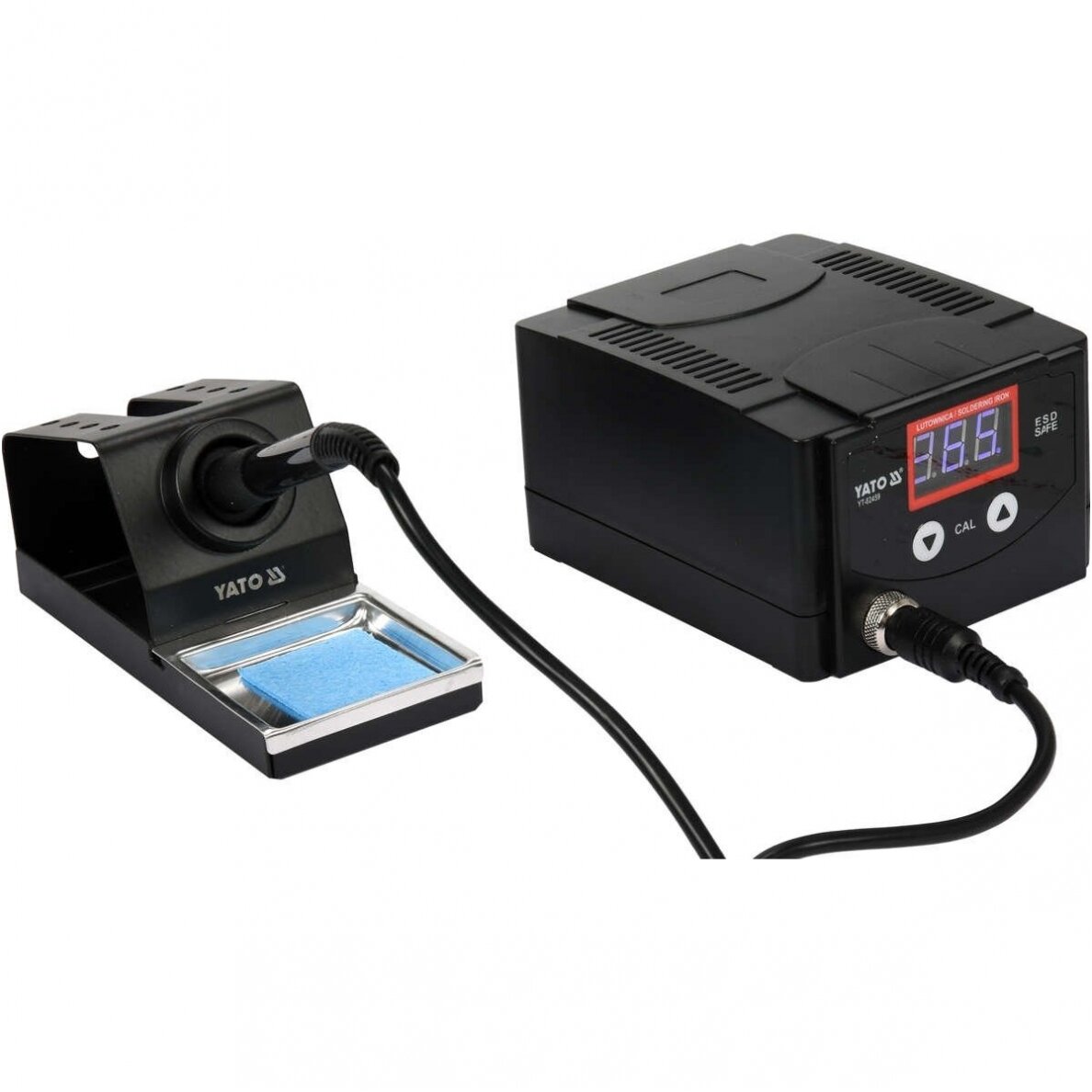

YT-82459 soldering station with digital LED display, temperature control and many functions facilitating proper soldering connections. The station supports a 908D soldering iron adapted to the very popular interchangeable tips from the 900M series.

power: 70W
temperature range: 200 - 480 ° C
temperature accuracy: + - 1 ° C
temperature stabilization
device hibernation: 1 - 99 min
automatic shutdown of the device: 1 - 99 min
on-off button on the side

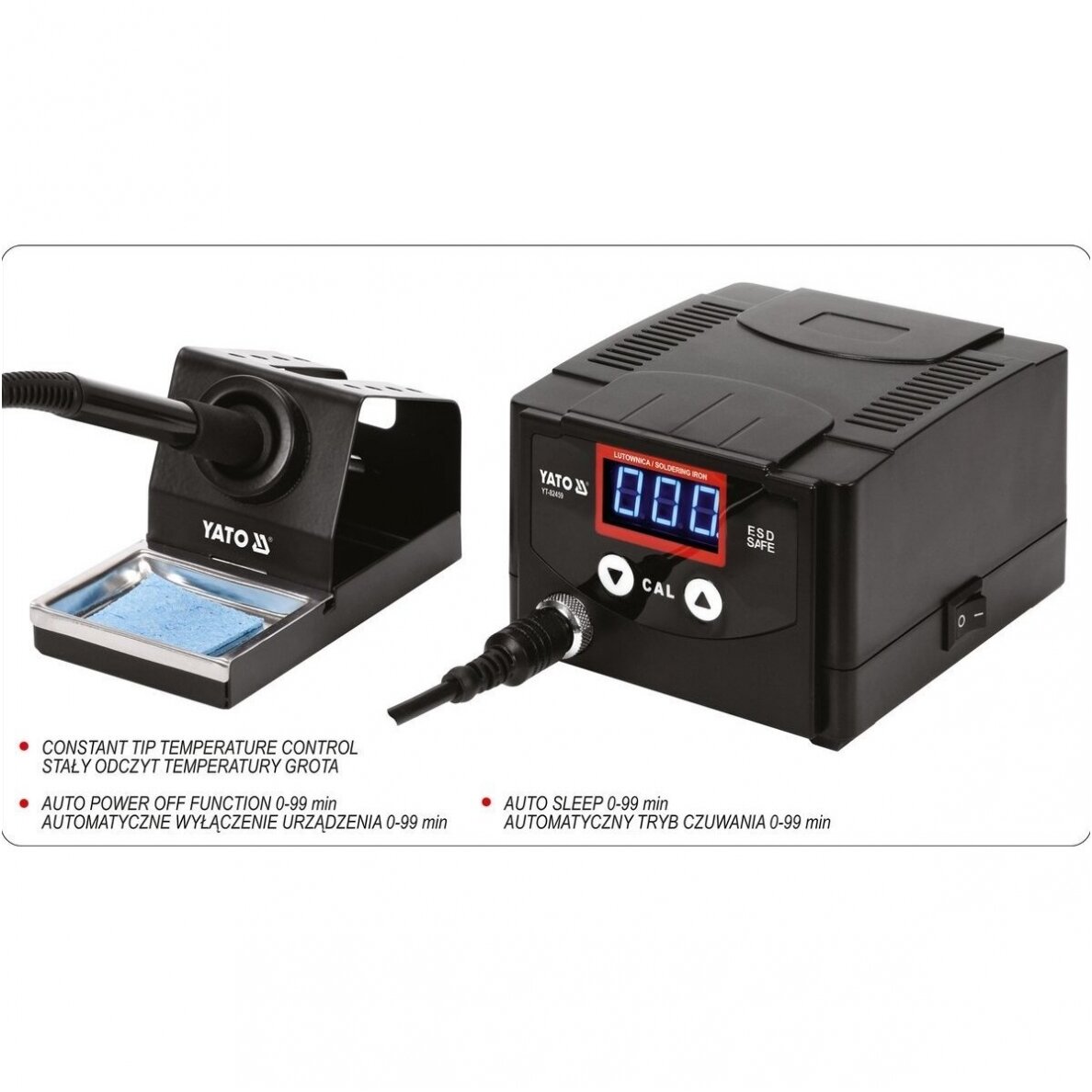

The digital display with blue LED backlight informs us about:
set and then the real temperature of the tip
device hibernation settings
the settings for the automatic shutdown of the device
tip heating operation mode

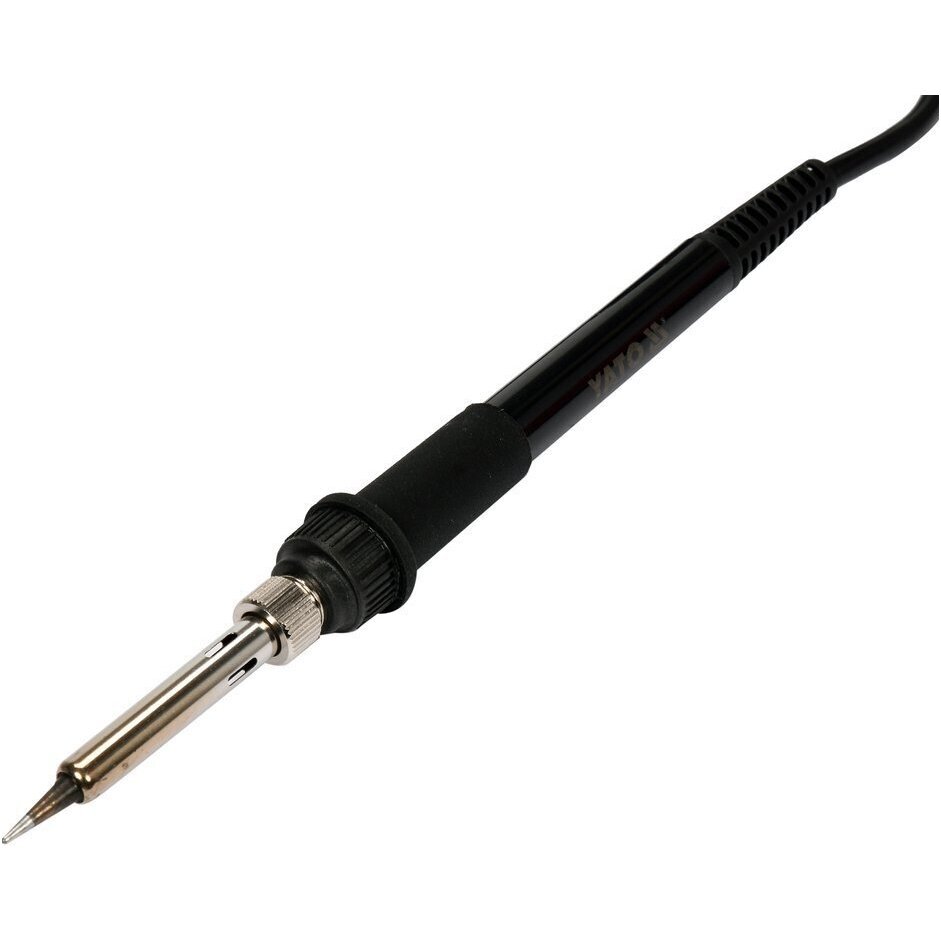

908D soldering iron to be put on a solid metal stand.
heater operating voltage: 24V
tip type: 900M
ceramic heater
cable length: 1m
stock weight: about 100g
The YT-82459 soldering station is made in ESD-safe technology, which guarantees that excess electrostatic charge will not accumulate on the housing. Thanks to this, we limit the risk of damage to e.g. sensitive SMD circuits. Heats up in about 25 seconds to an operating temperature of 350 ° C.

The temperature stabilization function allows to maintain the set temperature of the tip in various conditions of heat demand for the proper soldering connection. The tip, depending on the size of the soldered element and the soldering field, gives off more or less heat, and the device, using the built-in tip temperature sensor, reads its real value on an ongoing basis and compares it to the set one, then, depending on the needs, it increases or reduces the power consumption to maintain the set temperature.

The device's hibernation function allows the station to go into standby mode, which automatically lowers the operating temperature to 200 ° C. Thanks to this, we avoid unnecessary heating of the tip, which significantly extends its life. The YT-82459 model allows you to set the operator inactivity time after which the station will go into standby mode from 1 to 99 minutes.

The automatic switch-off function allows the station to turn off after the device idle time selected in the settings. The YT-82459 model allows you to set the operator inactivity time after which the station turns off from 1 to 99 minutes.

Parameters
Weight [g]: 1400
Power [W]: 70
Dimensions [mm]: 140 x 115 x 85
Warm-up time [s]: 25 s to 350 ° C
Max temperature of the tip [° C]: 480
