  • Kniediklis pneumatinis 3,2-6,4mm.

    Kodas: YT-3618
    19743
    Šią prekę turime sandėlyje.
    Į krepšelį
    Skaičiuojama...
    i

    Profesionalių įrankių linija.

    Prekės ženklas
    YATO
  • Product description

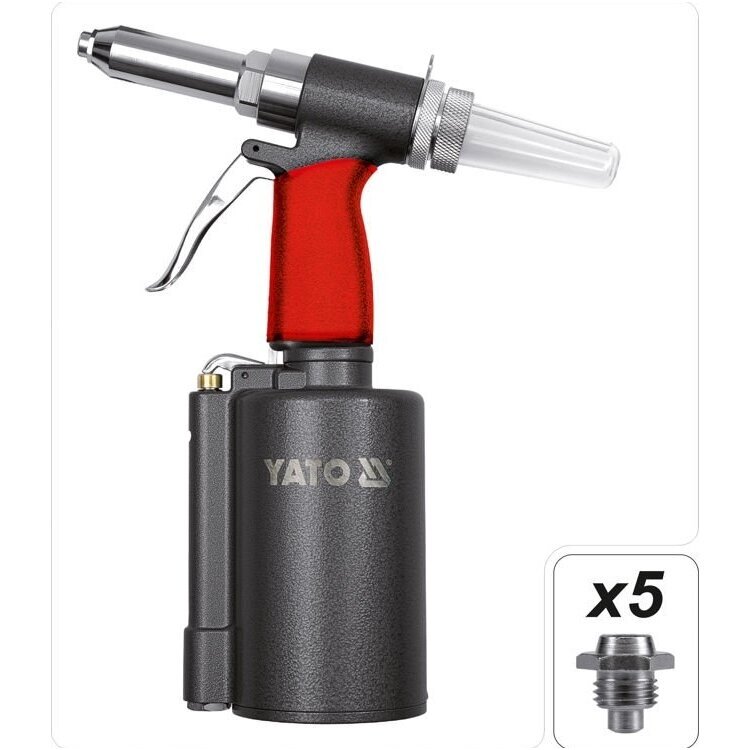

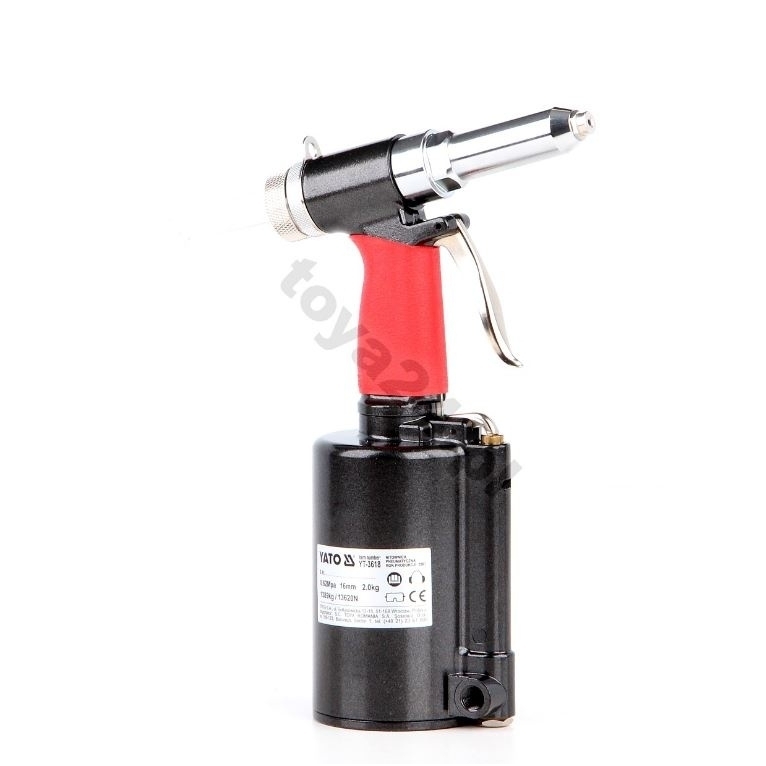

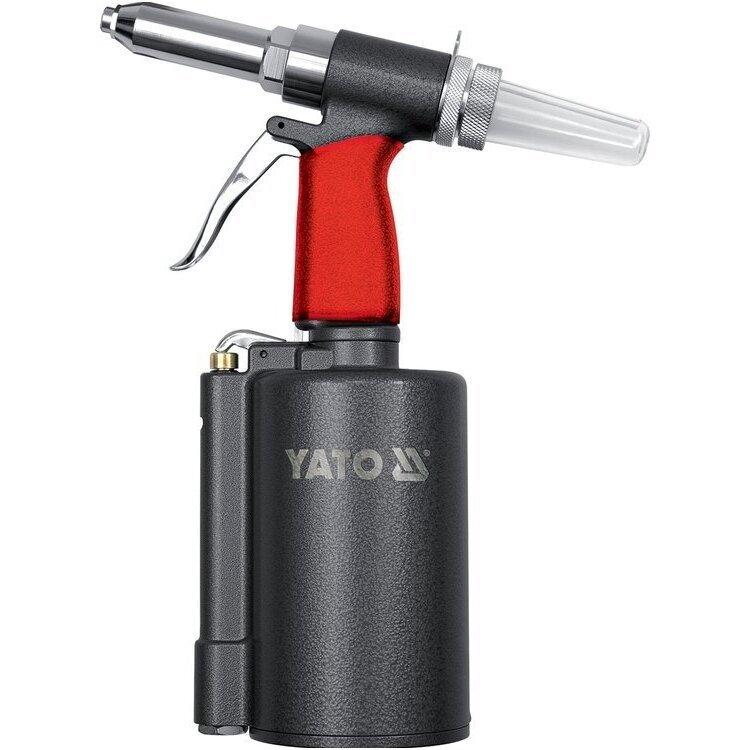

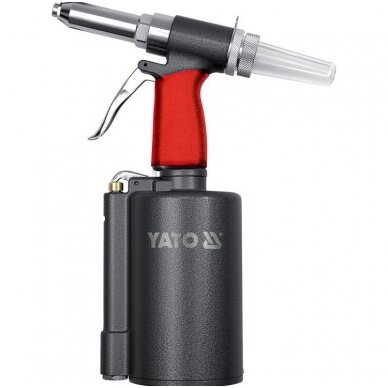

    The pneumatic riveter is a tool powered by a stream of compressed air under the right pressure.
    Blind rivets, steel, including stainless steel or aluminum, can be joined together. Provides more efficient and convenient work than a manual riveting machine.

    The riveting machine is equipped with a connector enabling it to be connected to the pneumatic system.

    The equipment includes:

    additional heads for rivets of different diameters
    keys for exchange

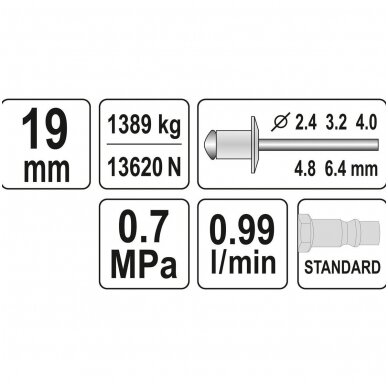

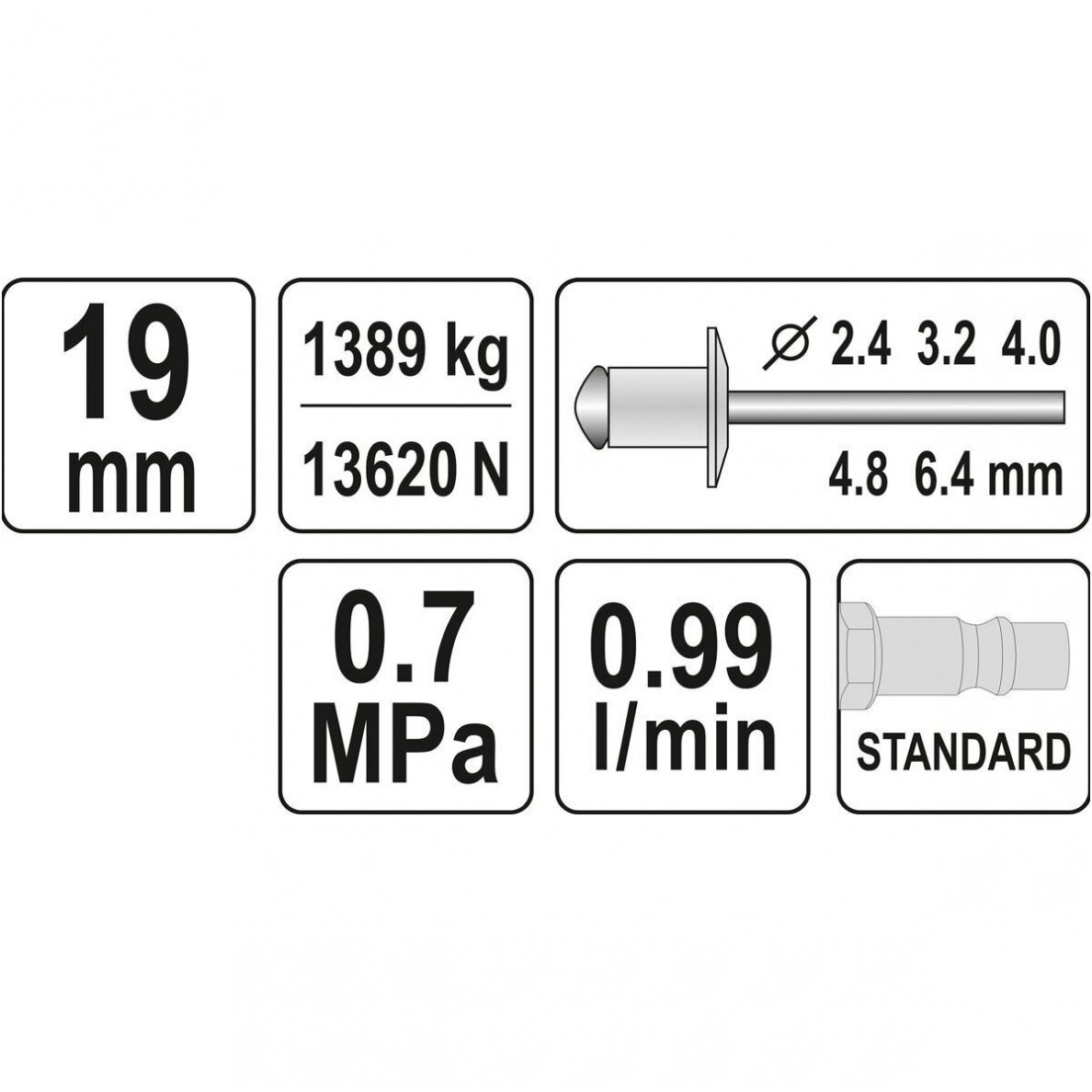

    parameters:
    Weight [kg] - 2.0
    Air connection diameter (PT) [”] - 1/4
    The diameter of the air supply hose (internal) [”] - 3/8
    Diameter of supported rivets [mm] - 2.4; 3.2; 4.0; 4.8; 6.4
    Crushing force [kg] / [N] 1389 / - 13 620
    Maximum piston stroke [mm] - 19
    Maximum working pressure [MPa] - 0.70
    Recommended working pressure [MPa] - 0.62
    Required air flow (at 6.2 bar) [l / min] - 0.99
    Sound pressure (EN ISO 15744) [dB (A)] - 81.2 ± 3.0
    Sound power (EN ISO 15744) [dB (A)] - 92.2 ± 3.0
    Vibration (EN 28662-1) [m / s2] - 0.4 ± 1.5

    Technical data
    Index number YT-3618
    EAN 5906083936180
    Brand Yato
    Gross weight (kg) 2.9170
    Master Carton MC 6
    Pal 84
    Black colour
    Rivet diameter [mm] 2.4-6.4
