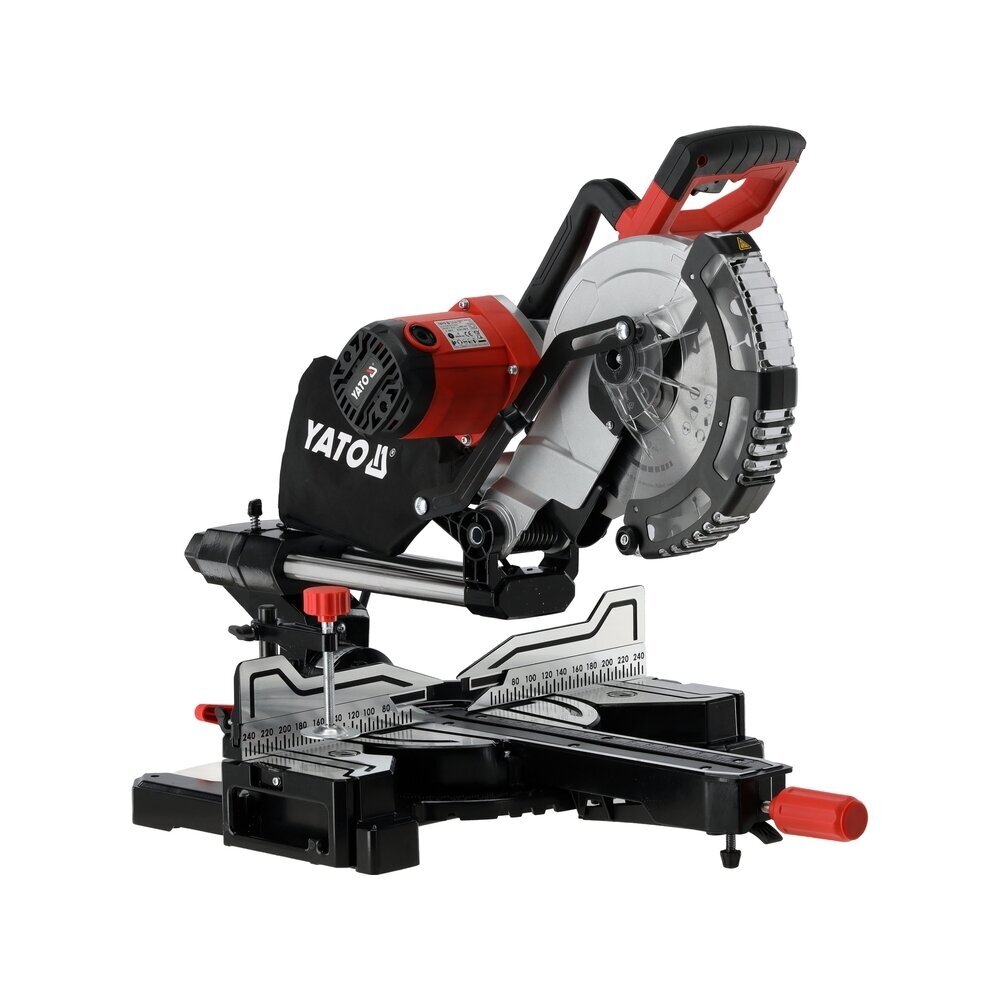

Kampinis skersinio pjovimo pjūklas 2000 W Ø255 mm. su lazeriu ir slankiojančia galva

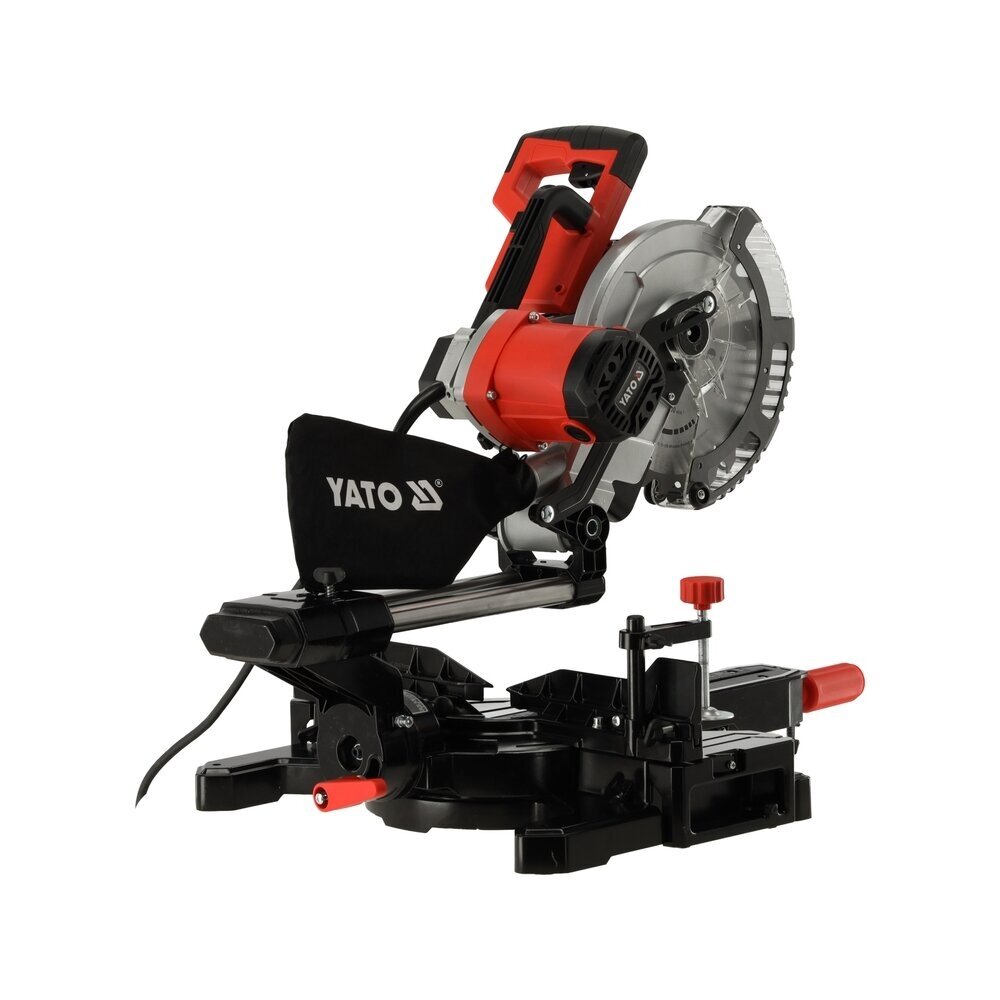

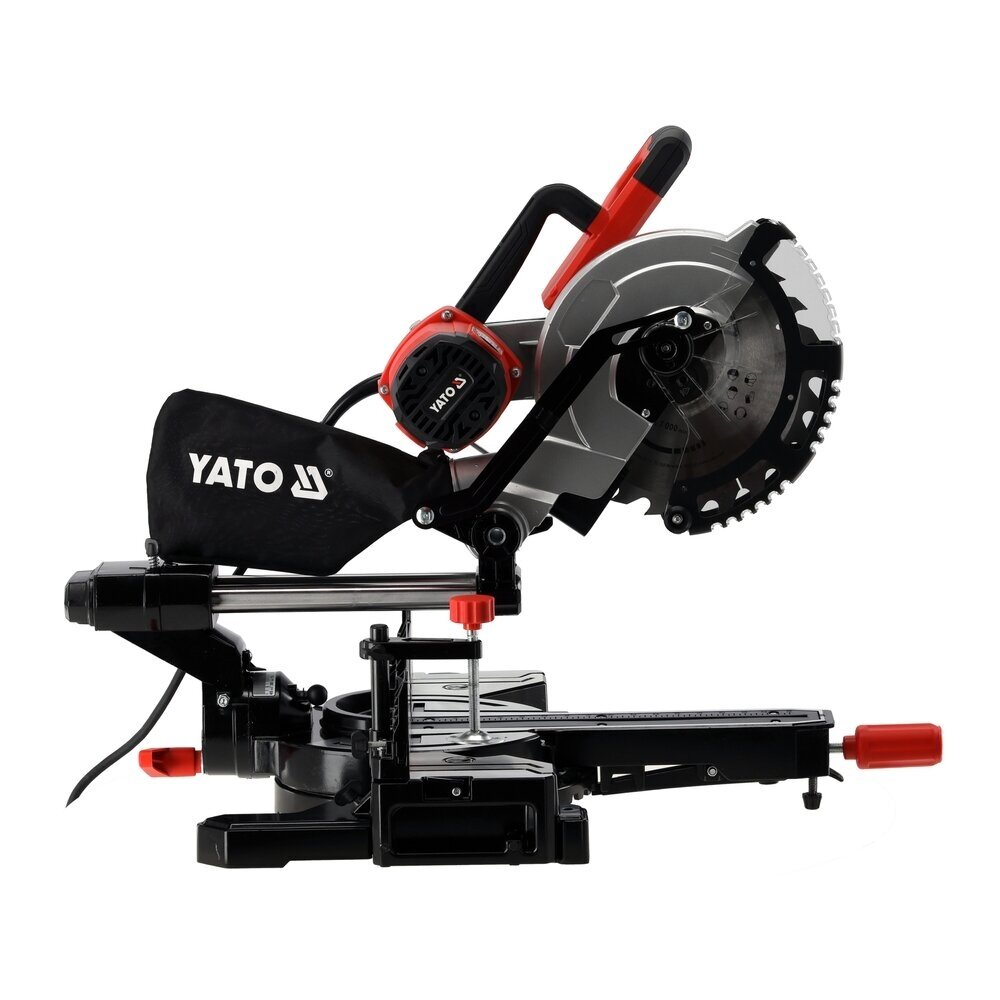

The YATO YT-821732 miter saw is a powerful and versatile tool designed for precise cutting of wood and wood-based materials during carpentry, assembly, and finishing work. Its design with head feed, bevel cutting, and double-sided blade tilt allows for both crosscuts and complex angle cuts requiring high accuracy. A precise guiding system and stable construction enable repeated cuts at precisely set angles, which is particularly important during serial machining of structural and finishing elements.

A powerful 2000 W motor, 255 mm blade, and wide working range allow for efficient processing of moldings, panels, square timber, countertops, and larger structural elements. A stable base, guides for smooth head feed, and a laser cutting line indicator enhance material control and facilitate precise alignment of the tool with the workpiece.

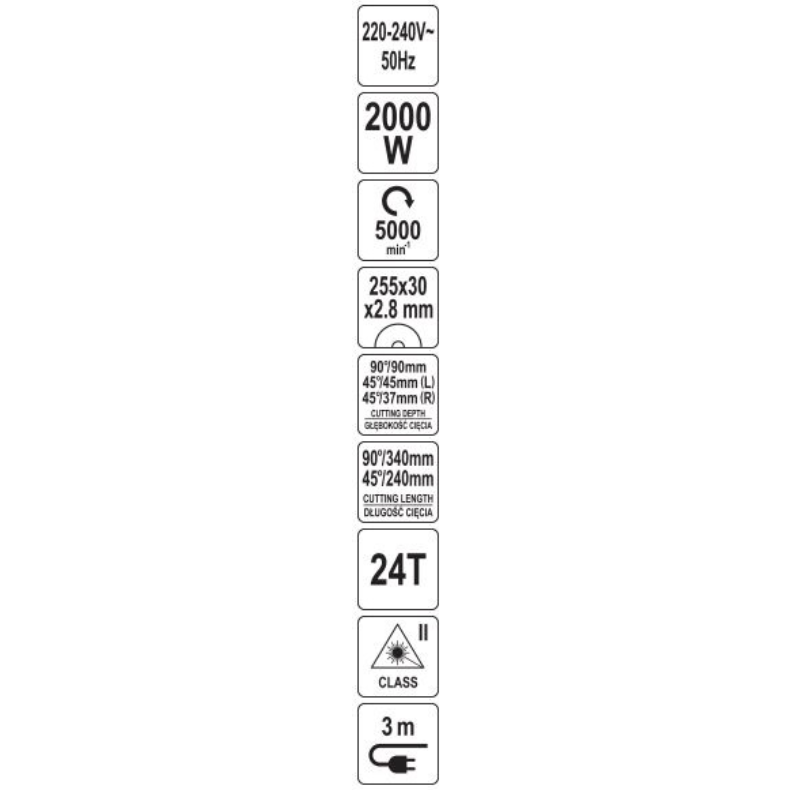

Key Features and Parameters:

Maximum Power: 2000 W
Rotation Speed: 5000 rpm
Saw Blade: 255 x 30 x 2.8 mm
Bevel Cutting Range: -45° to +45°
Head Tilt Function: Left and Right to 45°
Multiple Repeatability of Precise Cuts at Set Angle
Laser Wavelength: 650 nm
Laser Power: Less than 1 mW
Device Weight: 15 kg
Maximum Cutting Ranges:

90 x 340 mm — Straight Cut 0° / 0°
90 x 240 mm — Mitre 45° / 0°
45 x 340 mm — 45° Left Bevel
45 x 240 mm — 45° Left Bevel + 45° Left Bevel
37 x 340 mm — Tilt 45° right
37 x 240 mm - 45° mitre + 45° right tilt
Design and functionality:

Sliding head on guides for cutting wide workpieces
Feed lock for working without feed during standard cuts
Rotating worktable with a clear angle scale and detents for typical settings
Two-sided head tilt for a wider range of applications during assembly
Class 2 laser pointer for marking the cutting line on the material
Table extensions for improved support of long workpieces
Material clamp to stabilize the workpiece during operation
Spindle lock for easy blade changes
Effective dust extraction system with the option of connecting a dust bag or external dust extractor
Standard equipment:

YT-821732 mitre saw
Saw blade (24 T)
Dust collection bag
Worktable clamp
Head mounting hardware and adjustment screws
Parameters Acoustic:

Sound pressure level LpA: 94.2 ± 3.0 dB(A)
Sound power level LwA: 107.2 ± 3.0 dB(A)
This miter saw is designed for intermittent operation at an S6 20% duty cycle, suitable for workshop and assembly applications requiring intermittent load. The head's guides allow for smooth, wide cuts, while the feed lock function increases control when precisely cutting shorter workpieces. Thanks to its combination of high power, wide adjustment range, and sturdy construction, the YT-821732 is ideal for the production of cabinetry, the installation of moldings, cutting structural elements, and finishing work.
Index
YT-821732
Barcode
5906083133657
Unit of measure
PCE
Volume
176
Weight 18 kg
