Description

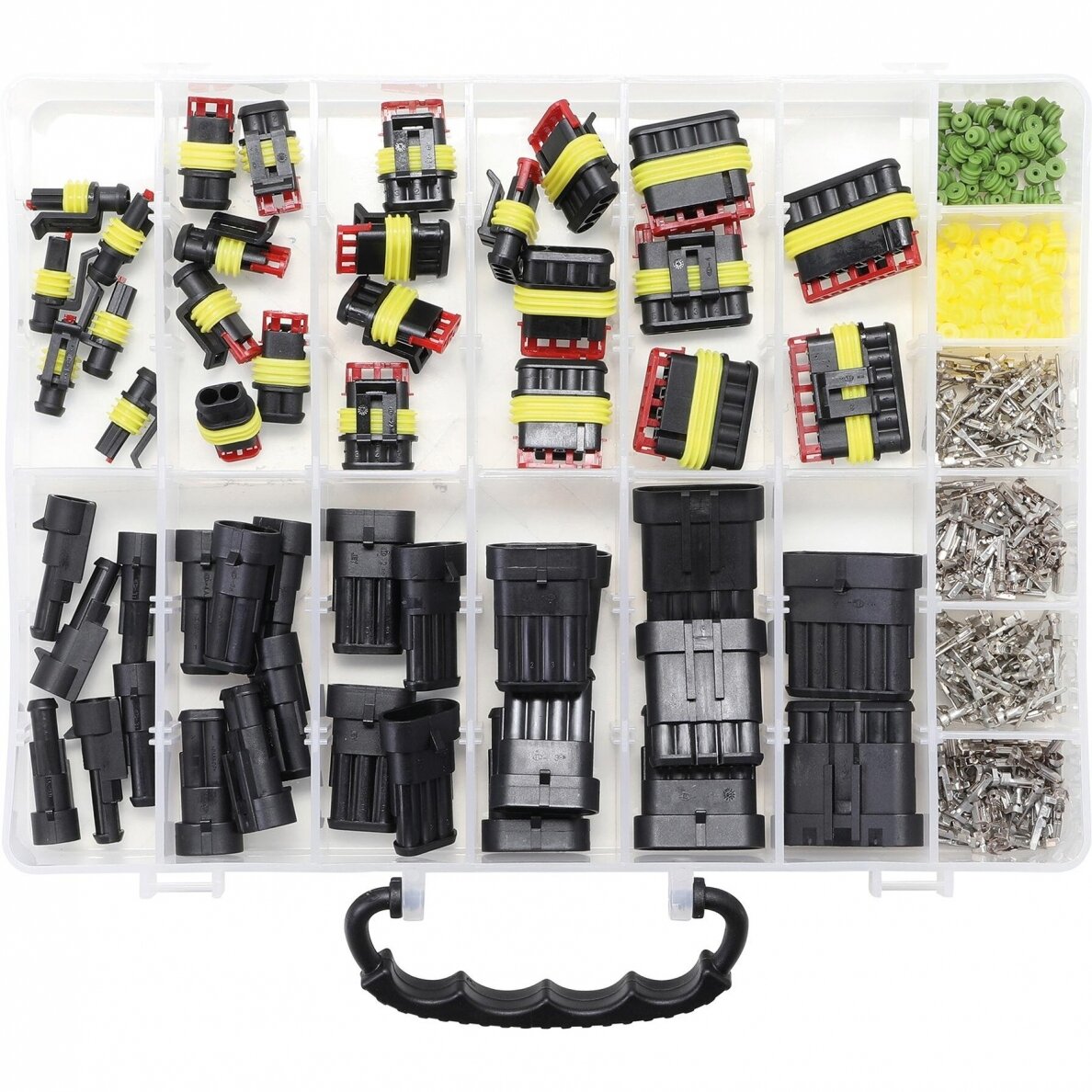

for repairing of existing cabling and for new wiring with Superseal 1.5 splash water protected and dustproof connectors

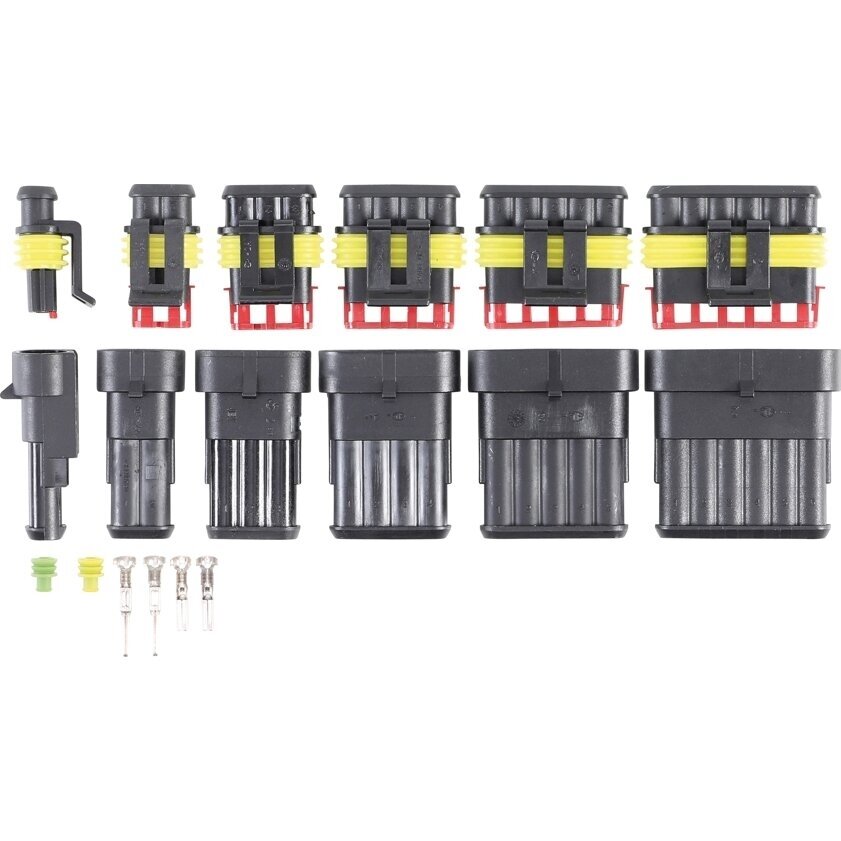

includes the following connector parts:

50 green F1.0 wire seals for outer diameter 1.2 - 1.8 mm
50 yellow F1.4 wire seals for outer diameter 1.6 - 2.4 mm
50 male terminals for cable cross section 0.3 - 0.5 mm²
50 female terminals for cable cross section 0.3 - 0.5 mm²
50 male terminals for cable cross section 0.85 - 1.25 mm²
50 female terminals for cable cross section 0.85 - 1.25 mm²
6 male housings (1 Pole)
6 female housings (1 Pole)
6 male housings (2 Pole)
6 female housings (2 Pole)
4 male housings (3 Pole)
4 female housings (3 Pole)
4 male housings (4 Pole)
4 female housings (4 Pole)
3 male housings (5 Pole)
3 female housings (5 Pole)
2 male housings (6 Pole)
2 female housings (6 Pole)
wire seal material: silicone, seal outer diameter: 6.1 mm
terminal material: brass
housing material: PA66+GF
temperature range: -40°C to 120°C
Technical data
Gross weight 870 g
