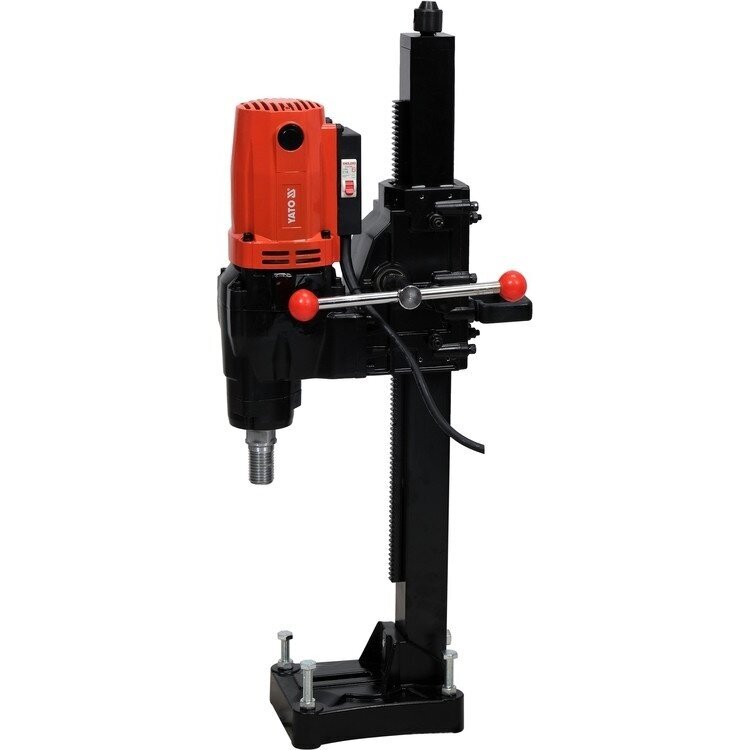

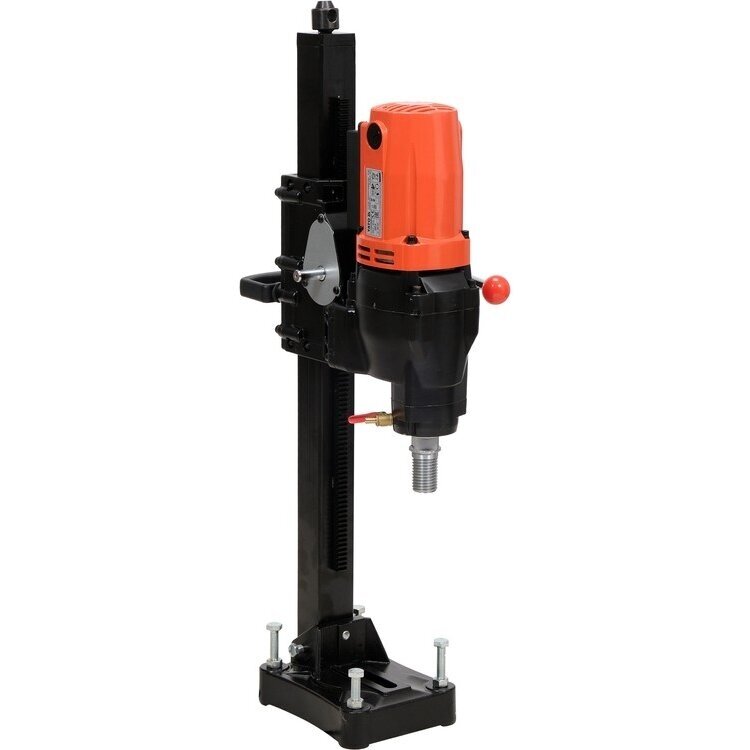

2800W DIAMOND DRILL WITH A STAND INCLUDED
Product description
The YT-81983 industrial diamond drilling rig is designed for drilling in reinforced concrete, concrete and natural stone. This type of device is necessary in the hydraulic industry for drilling for sewage pipes passing through building ceilings, as well as during the installation of ventilation and air conditioning systems (HVAC industry) and heat pumps, or storm sewerage (drilling in circles).

In the above-mentioned applications, it is necessary to make serial drillings with diameters of more than 200mm or of considerable length (from 1m to even approx. 4m for the renovation of monuments, rainwater drainage or resin injection during the renovation of bridges and other engineering structures).

The new Yato drill rig combines solid workmanship comparable to other branded drill rigs with a drilling range of up to 300mm and an actual power of 2800W.

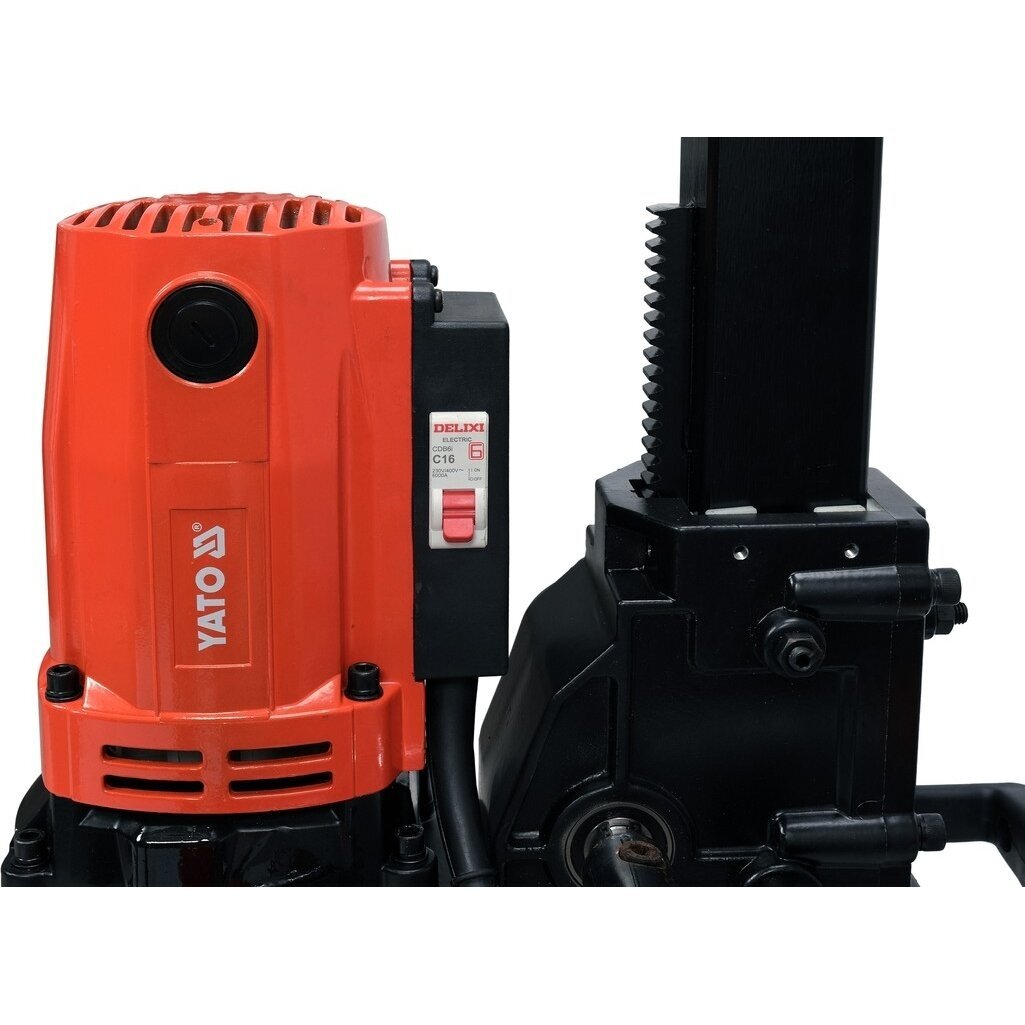

The construction of the device is based on a planetary gear, in which the quality of the steel used to build the gears (hardness 53-56 HRC) determines durability with high torque at the same time. This enables drilling in a wide range of diameters, even in the hardest materials.

Technical data:

Power: 2800W
Rotation: 700 rpm
Drilling range: 32 to 300mm

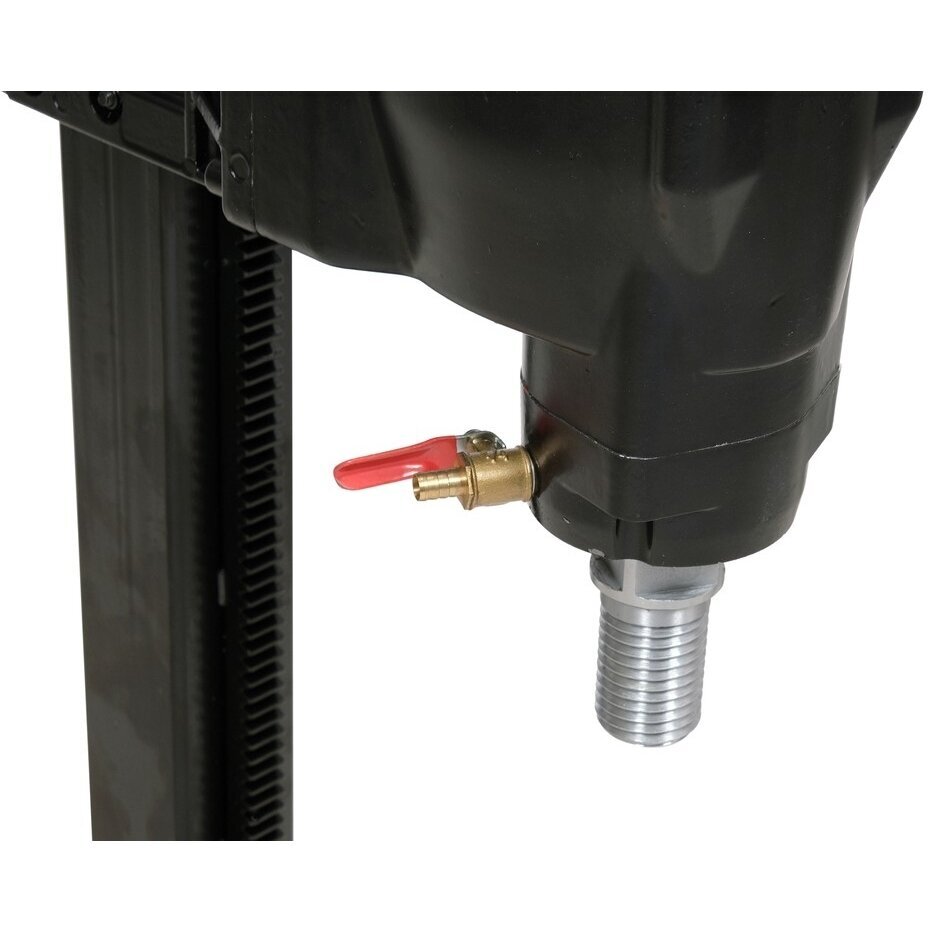

Tool holder: UNF thread 1 ¼ '' (standard)
Dry / wet operation
Rotor and stator windings are 100% copper

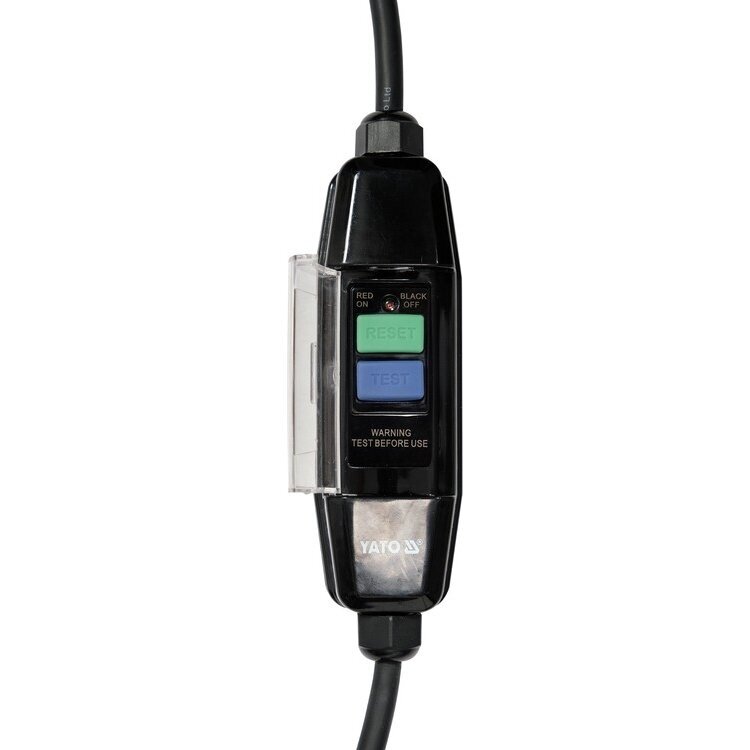

Residual current protection with reset button
Motor thermal protection

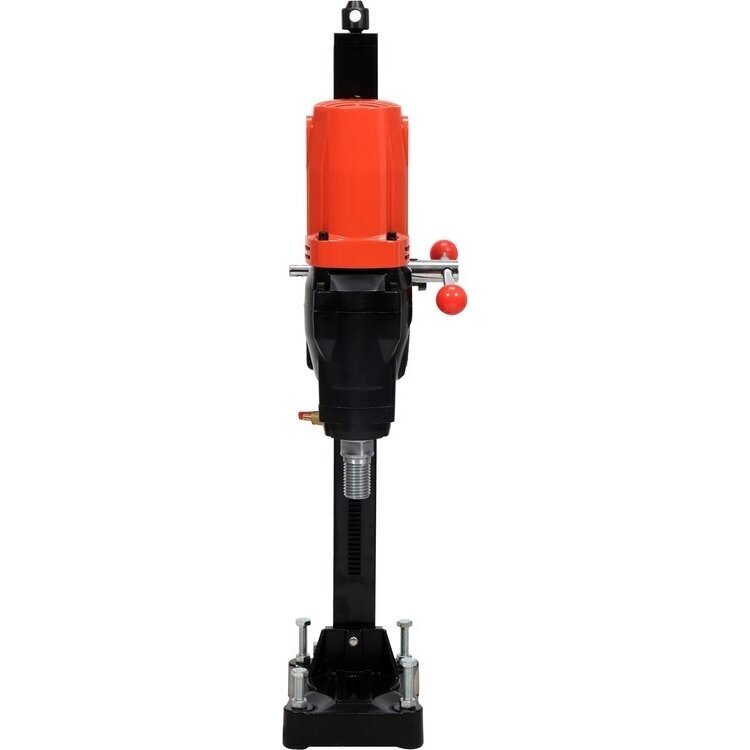

The tripod is complete with the drive
Complementary items:

YT-86211 (battery hydronet)
Core drills: YT-60371 - 32 mm; YT-60372 - 42 mm, YT-60373 - 52 mm, YT-60374 - 68 mm, YT-60375 - 82 mm, YT-60376 - 102 mm, YT-60377 - 122 mm, YT-60378 - 152 mm, YT -60379 - 182 mm
