Description
principle of operation:

extra strong heater for trucks and agricultural machines

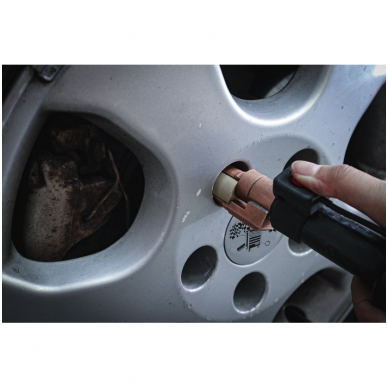

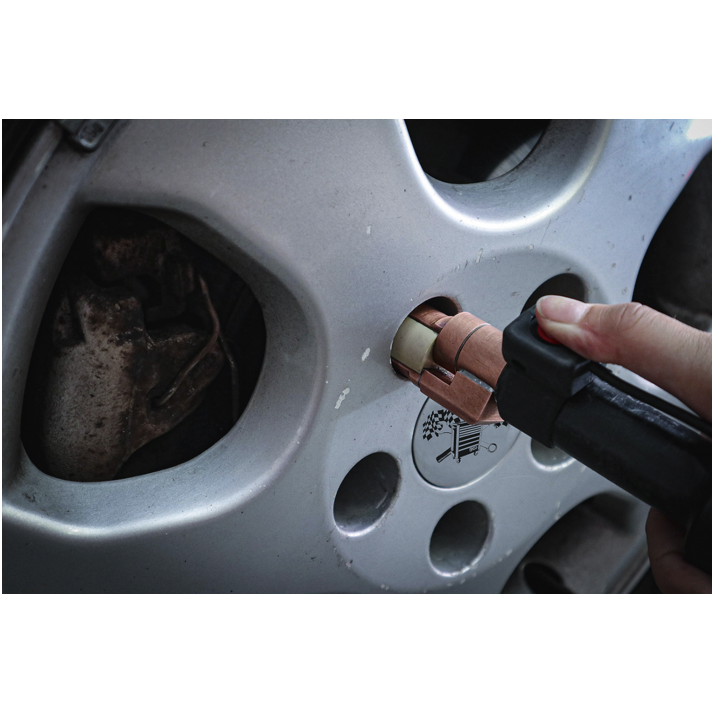

allows heating of screws/nuts without heating surrounding components too much or even destroying them, as it is often the case when heated with a torch
within the shortest possible time, e.g. rusty nuts are heated and can be loosened

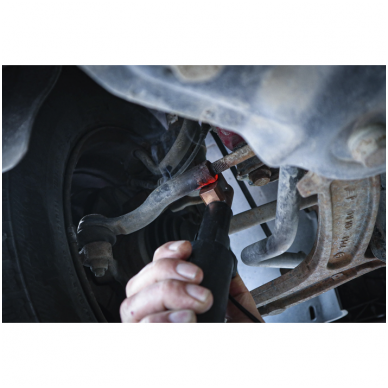

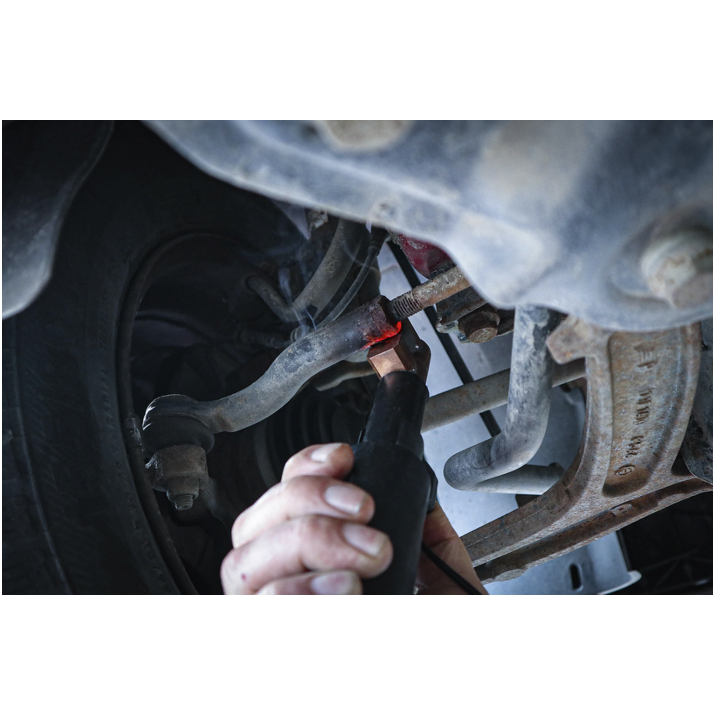

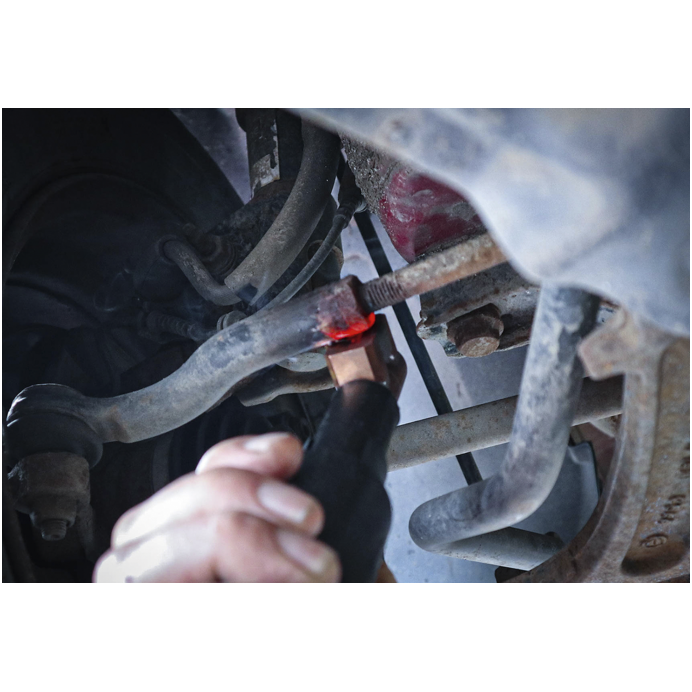

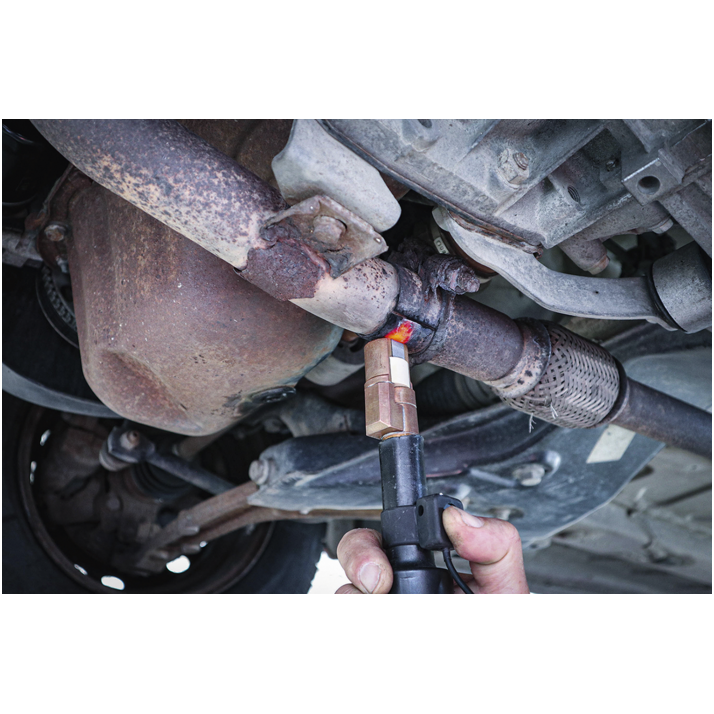

using for e.g. ball joint pinch bolts and other items on axle and engine
input power max. 3.5 kW
output induction power max. 3.7 kW
max. operating temperature: 900 °C
max. current 16 A
scope of delivery:

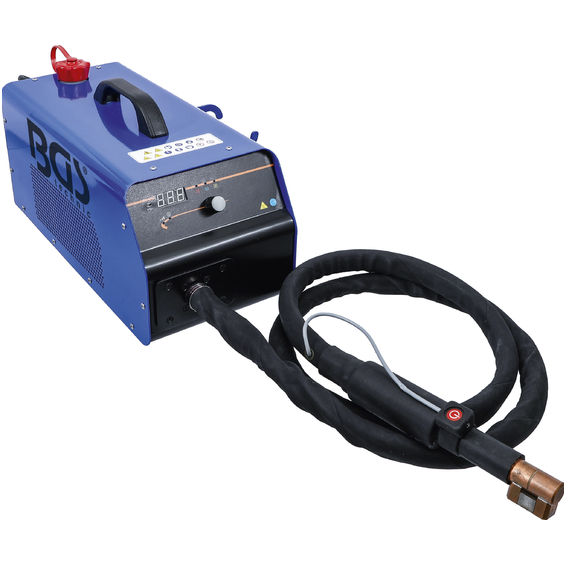

1 induction heater
1 hose-/induction cable, length 2 m
1 coolant reservoir 2.5 l (BGS 2170-5)
1 focus coil, 90° angled, length 40 mm, width 20 mm
1 focus coil, straight, length 59 mm, width 20 mm
Technical data
CE Standard Yes
Length 440 mm
Width 240 mm
Height 200 mm
Weight 14,11 kg
Net weight (kg) 11,5 kg
Protection class IP 22
Power supply voltage (AC) 230 V
Power supply frequency 50 - 60 Hz
