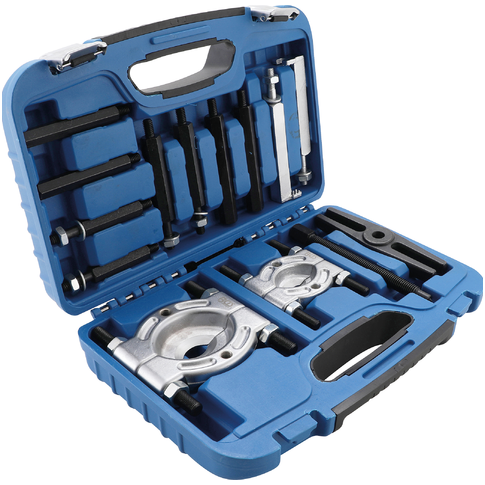

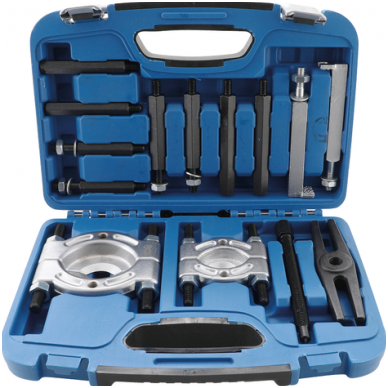

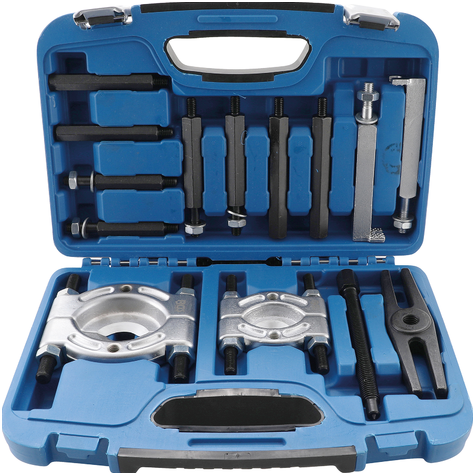

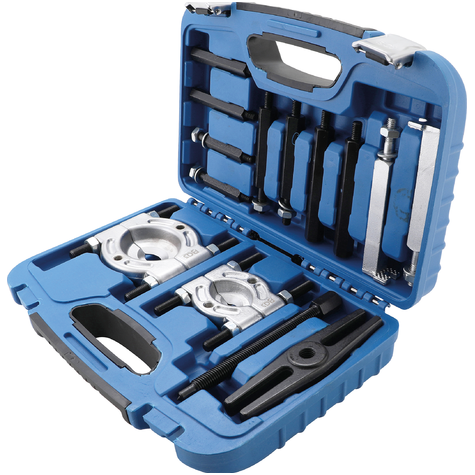

Description
incl. shifter
for removing bearings, internal rings and other tightly and narrowly mounted parts

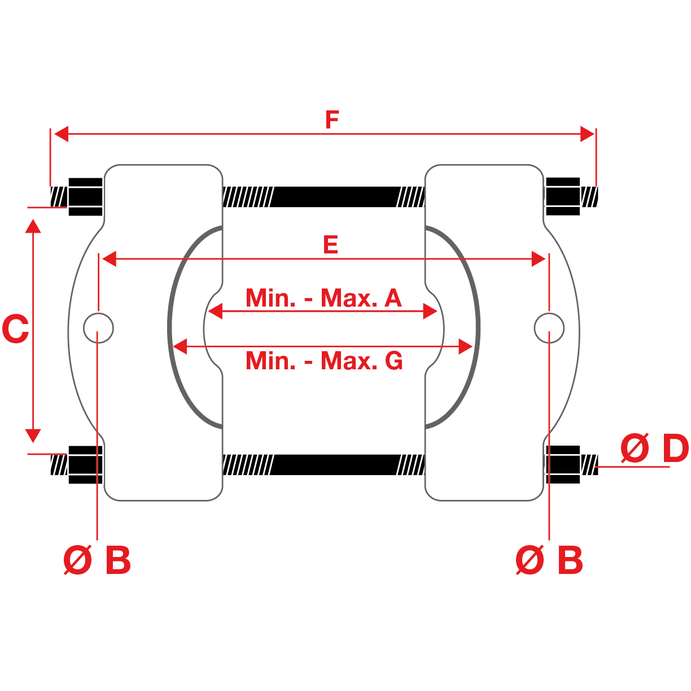

clamping width (A) min. / max. in mm: min. 8 mm / max. 64 mm
puller bolt receiving thread (B): 3/8" x 16 UNC
clamping bolt distance (C) in mm: 63 mm
camping bolt thread (D): 3/8" x 24 UNF
puller bolt distance (E) min. / max. in mm: min. 50 mm / max. 106 mm
clamping bolt length (F): 125 mm
splitting knife base (G) min. / max. in mm: min. 26 mm / max. 82 mm
clamping width (A) min. / max. in mm: min. 17 mm / max. 60 mm
puller bolt receiving thread (B): 3/8" x 16 UNC
clamping bolt distance (C) in mm: 90 mm
camping bolt thread (D): 1/2" x 20 UNF
puller bolt distance (E) min. / max. in mm: min. 84 mm / max. 127 mm
clamping bolt length (F): 136 mm
splitting knife base (G) min. / max. in mm: min. 52 mm / max. 95 mm
Technical data
Gross weight 5300 g
