Symbol
YT-84877
Kit contents
saw|chain guide|cutting chain|bar guard|handle extension|carrying belt
Telescopic
Yes
Mass
1.1 kg
Tension
230-240Vac
Power
750W
Cable length
0.35m
Soft grip
Yes
Chain pitch
3/8" (9.525mm)
Frequency
50 Hz
Electrical insulation class
II
sound pressure
89.5 ± 3.0dB(A)
Acoustic power
102.7 ± 2.47dB(A)
Bar length
10" (250mm)
Number of cells
40
Automatic chain lubrication
Yes
Working angle
handle: -180, -90, -45, 0, +45, +90|cutting head: -20, 0, +20, +40, +60 ˚
Functions
chainsaw|pruner
Vibrations
2.67 ± 1.5 / 3.32 ± 1.5 m/s²
Handle length
1100-1700mm
chain feed speed
12 m/s
Chain type
3/8,043x40
Chain guide type
AP10-40-437P
Number of teeth of the chain drive sprocket and pitch
6 teeth x 9.525mm
Oil tank capacity
60 ml

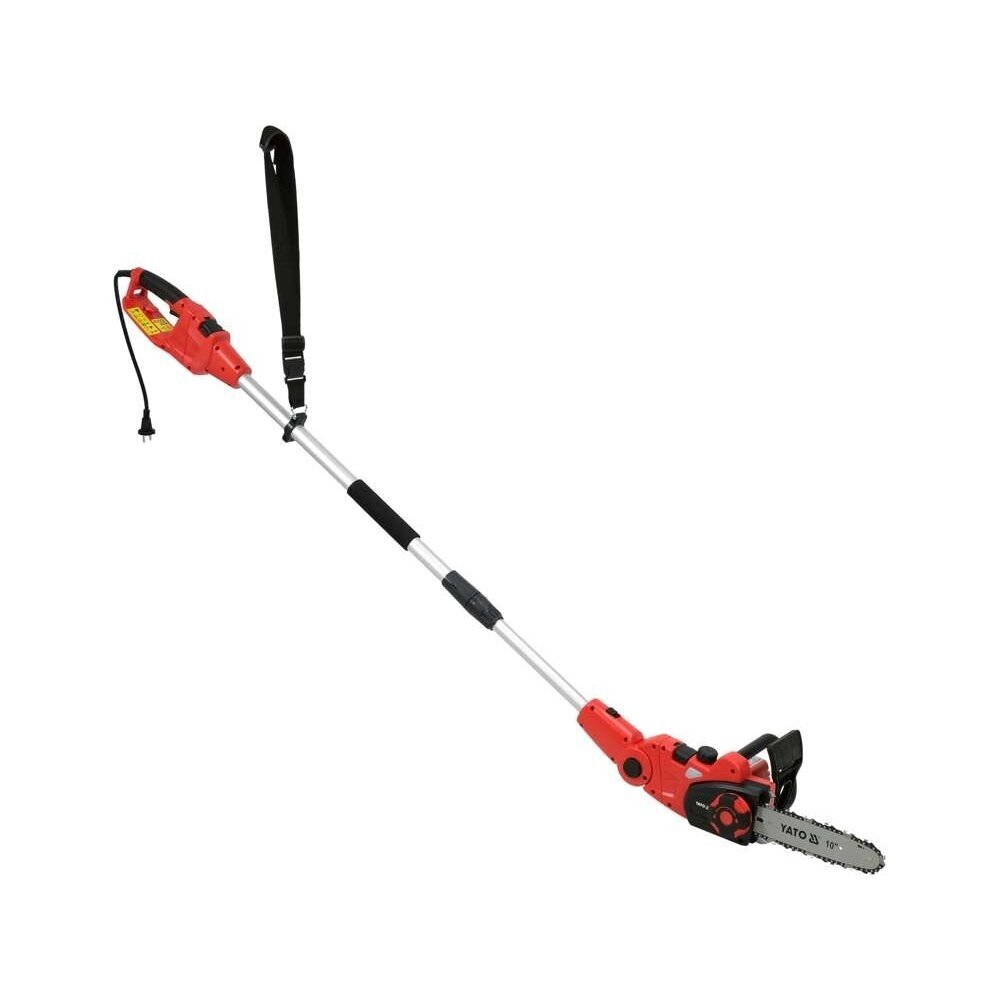

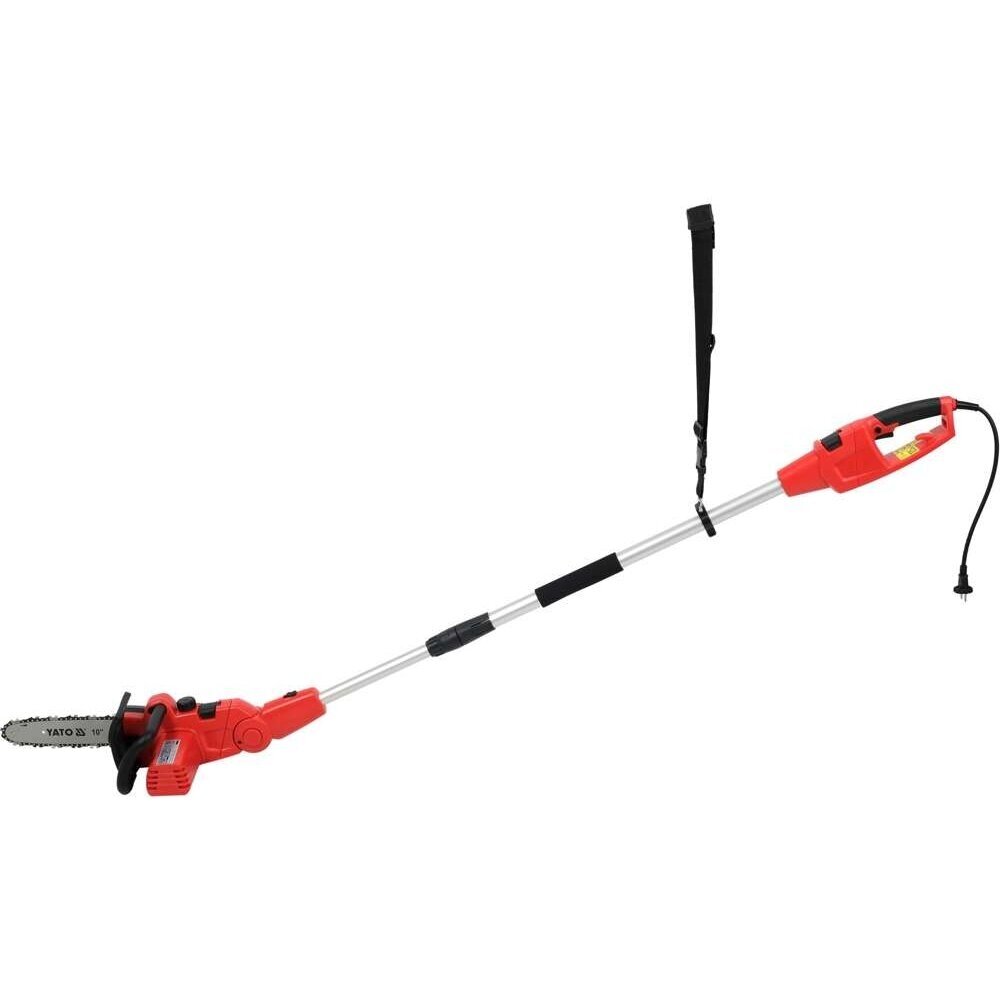

The device combines two functions - it is an electric chain saw and a telescopic pruner for cutting branches. For the user's convenience, when cutting branches, the saw head can be adjusted in two planes - inclination in relation to the stick and rotating around the axis.

setting the angle of inclination of the pruner: -60, -40, -20, 0, +20 degrees
saw handle rotation: -180, -90, -45, 0, +45, +90 degrees

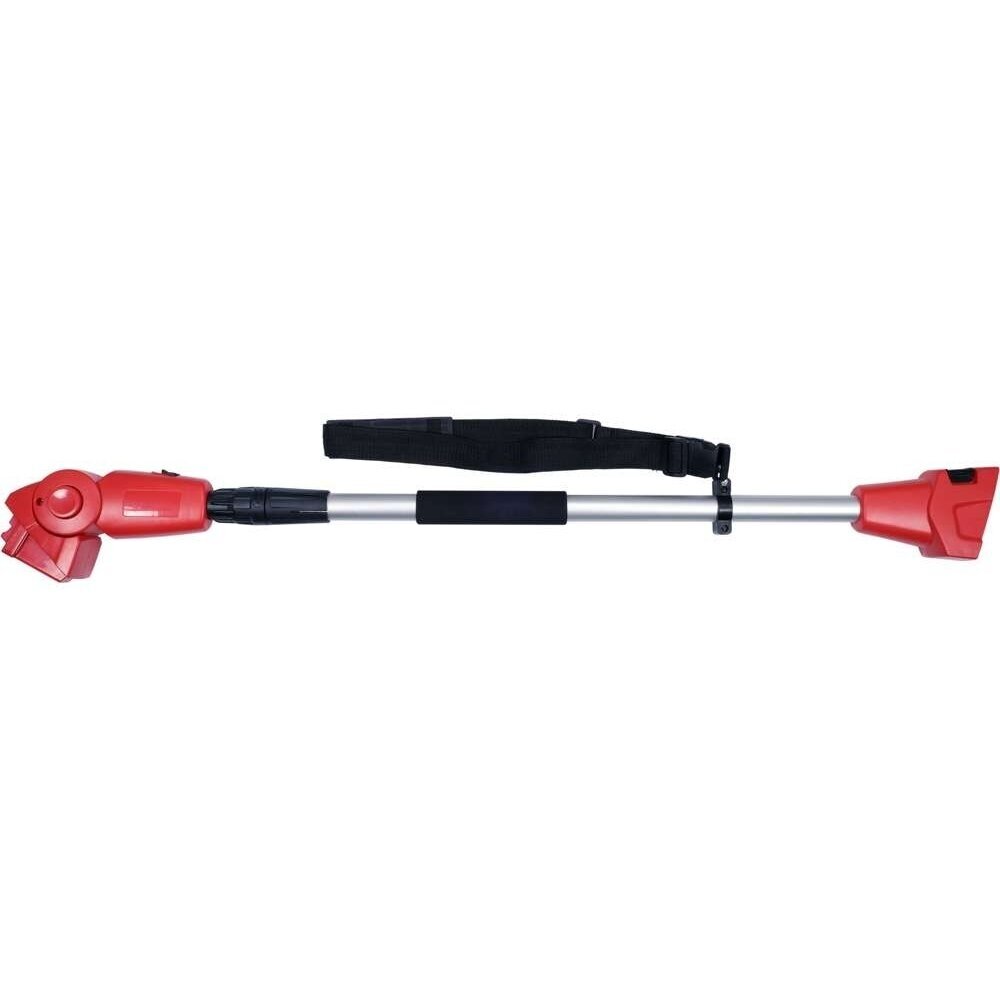

The pole of the pruner is telescopically extended: 110-170 cm

The user can maintain proper chain tension with the SDS quick adjustment system without tools.

Rubber accessories on the handles increase the grip.

power: 750W
bar length: 25 cm (10 inches)
guide assembly: P (A041)
chain: 0.043", 3/8", 40 links, low kickback
chain speed: 12 m/s
oil tank capacity: 60ml
cable length: 0.35 m
shoulder strap and plastic guide cover included
