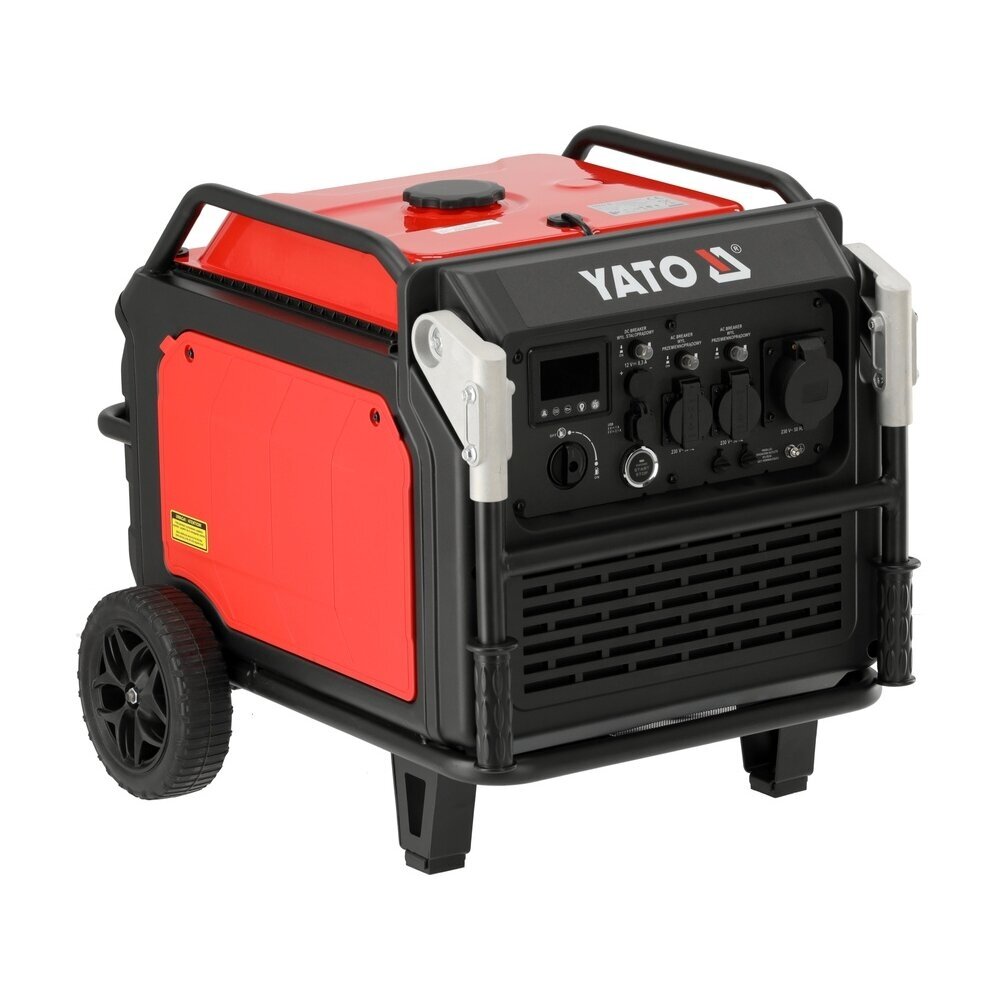

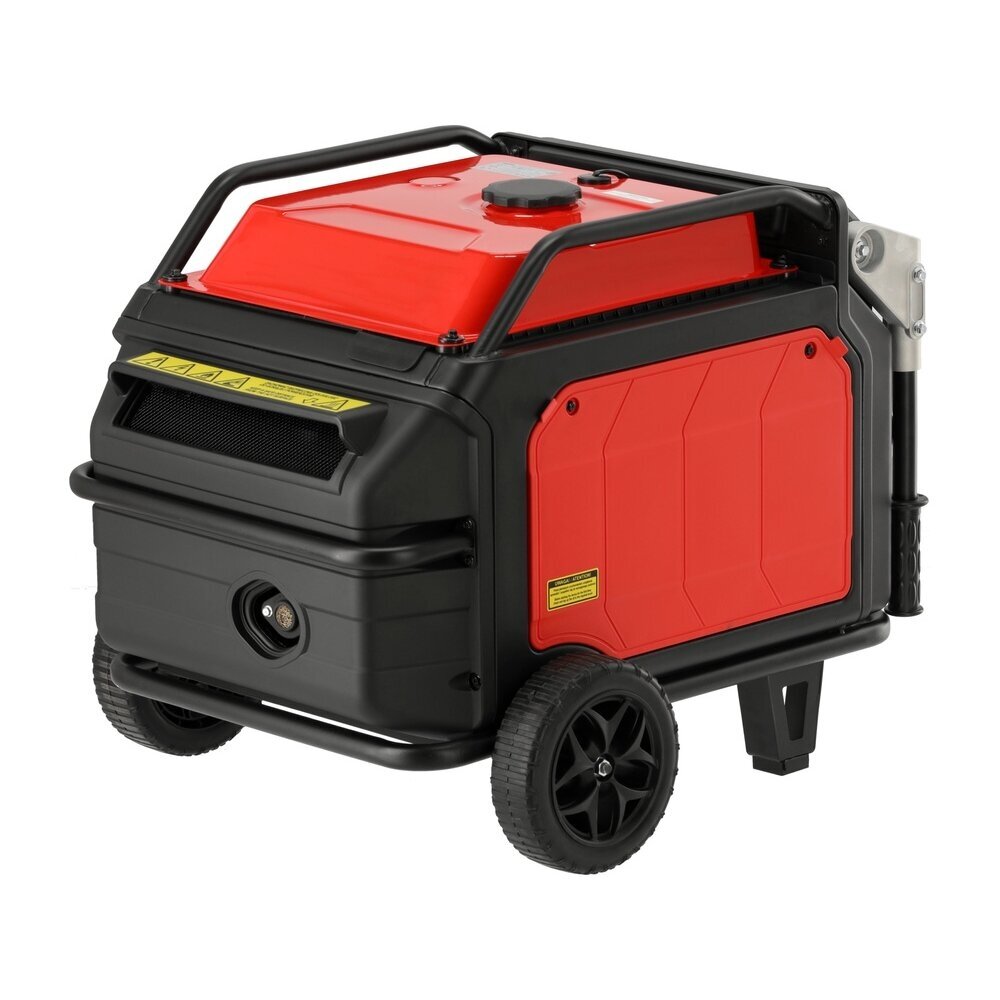

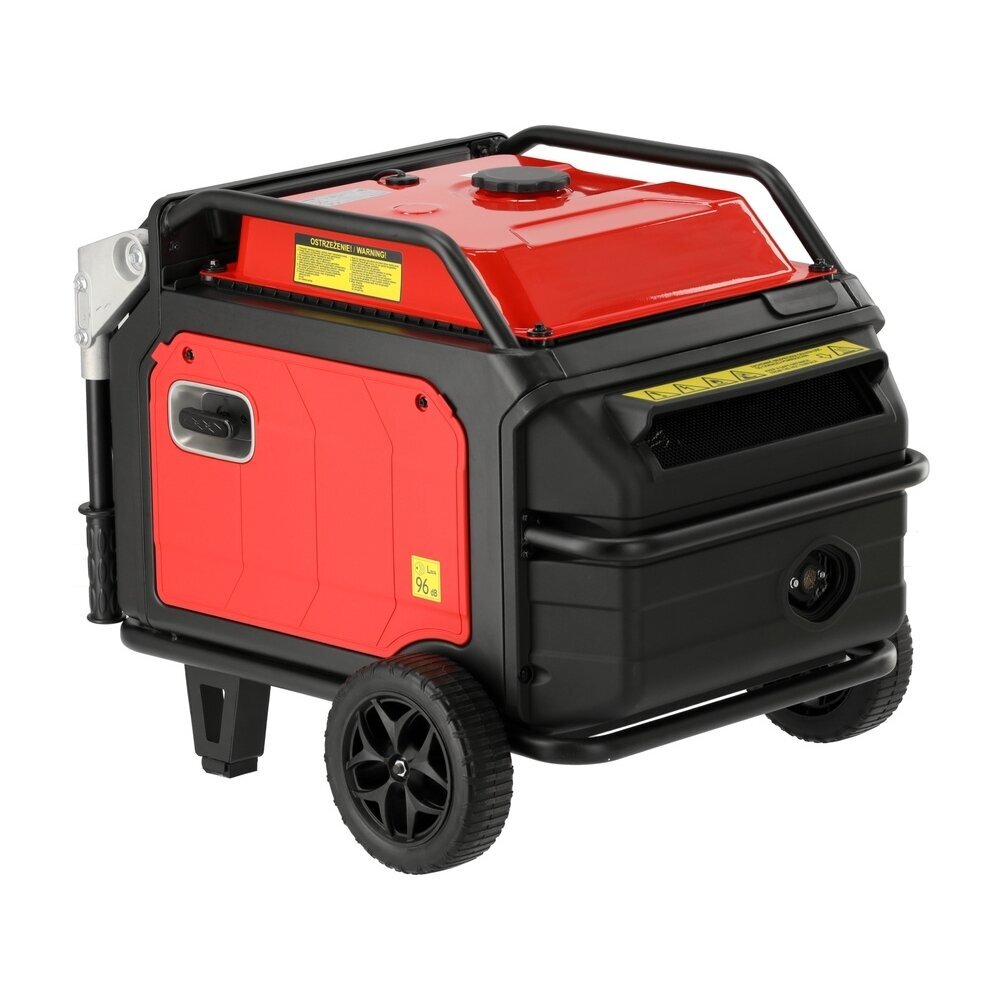

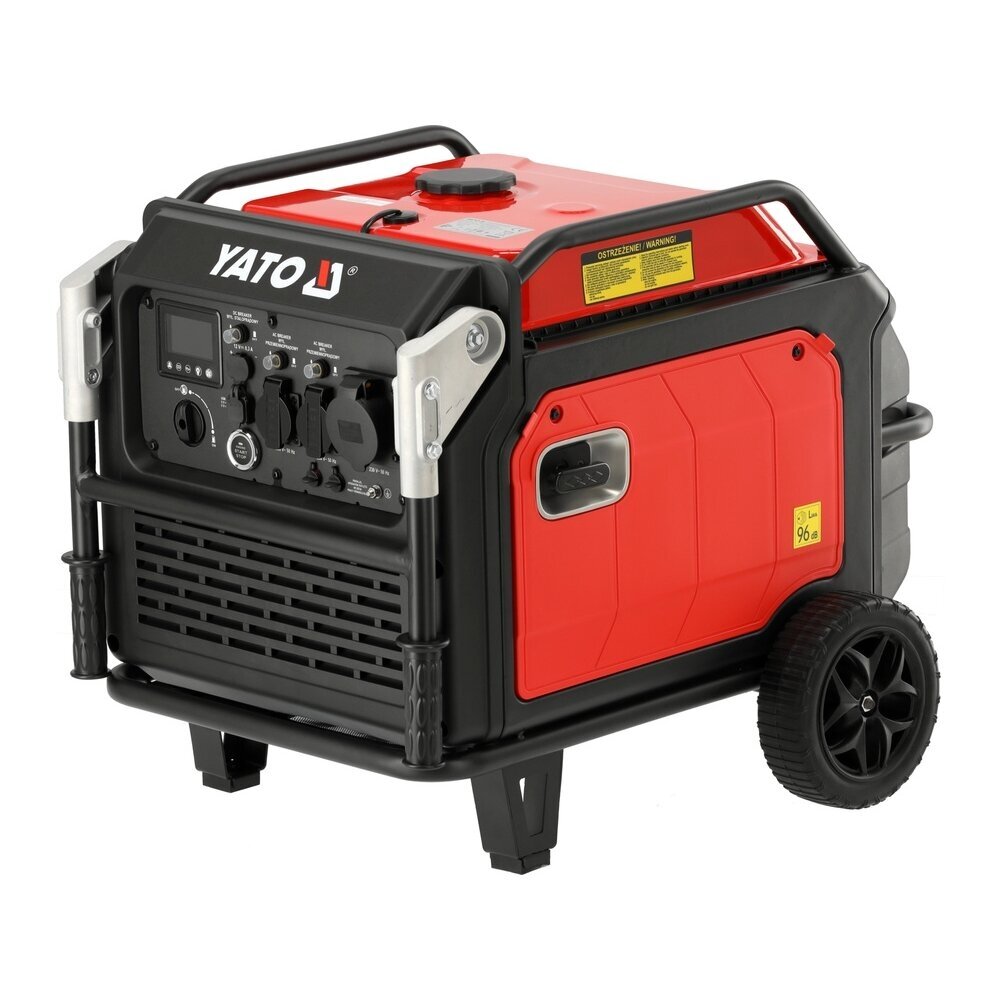

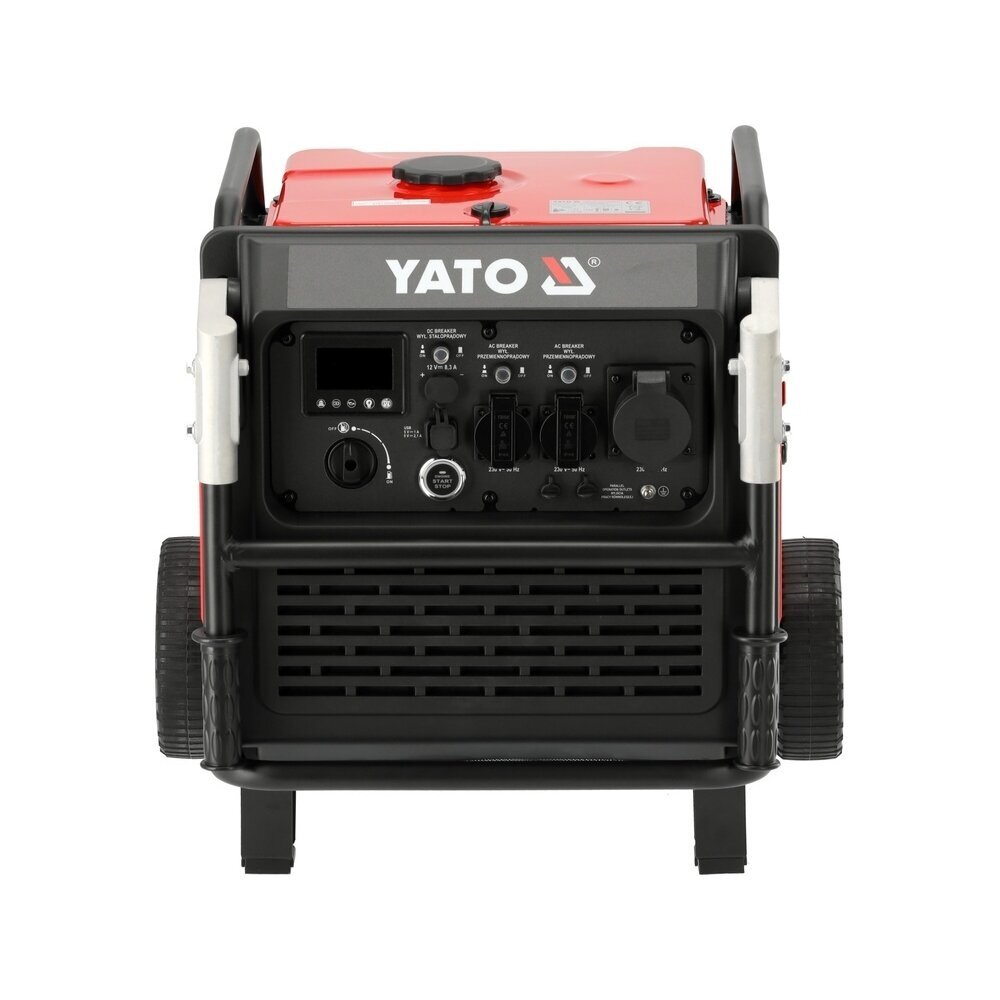

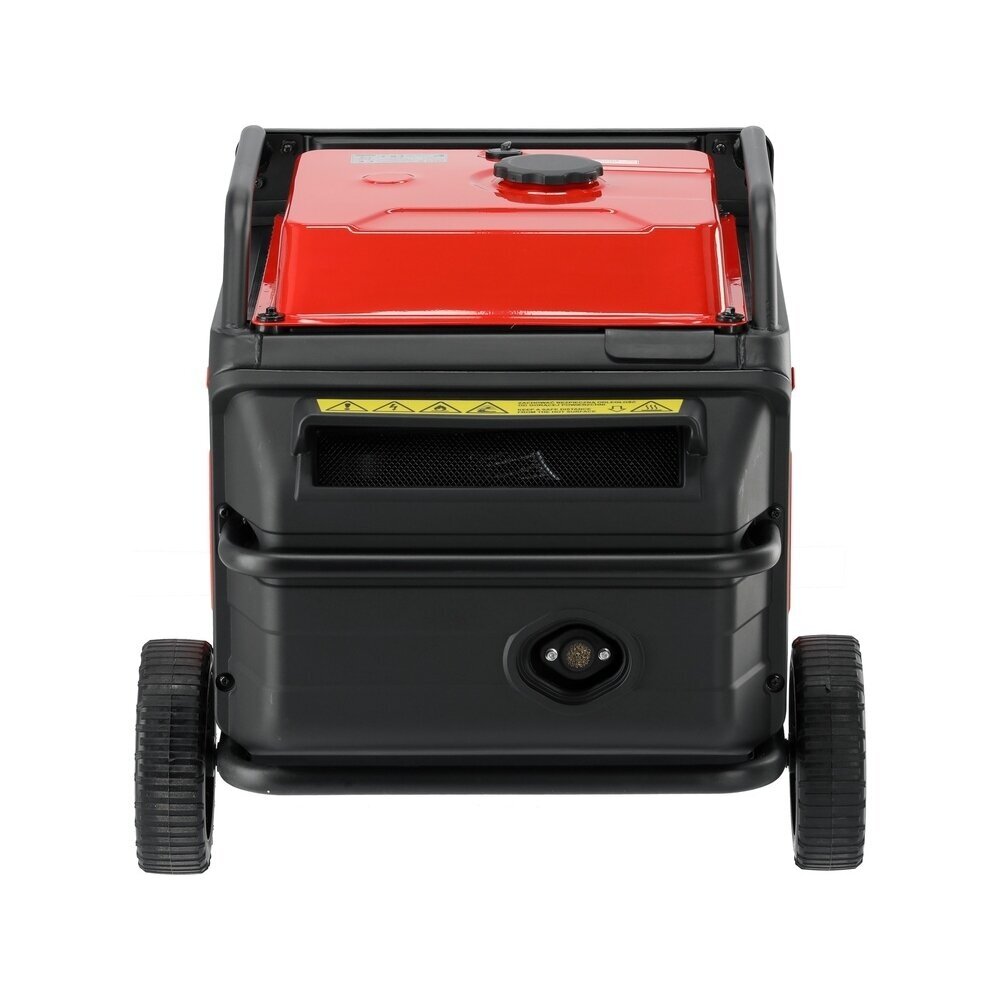

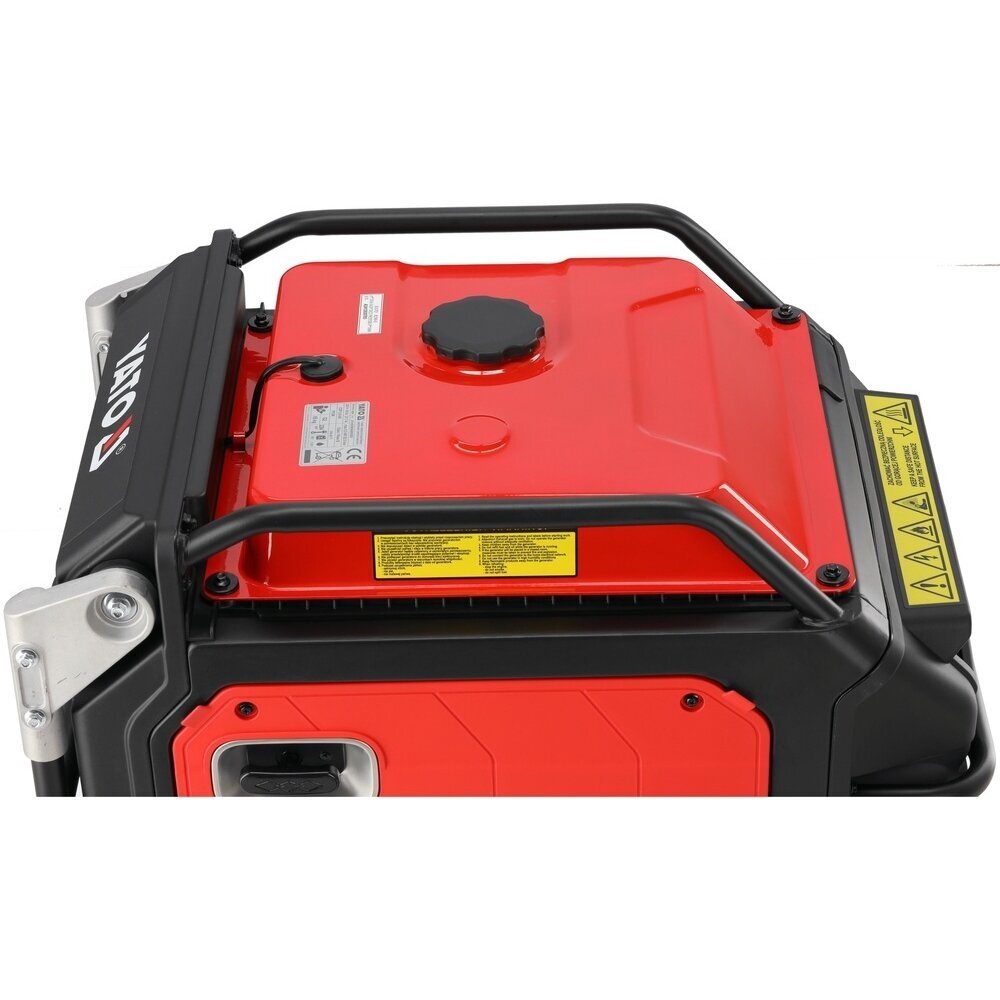

Generatorius inverterinis 5000W

YT-85486

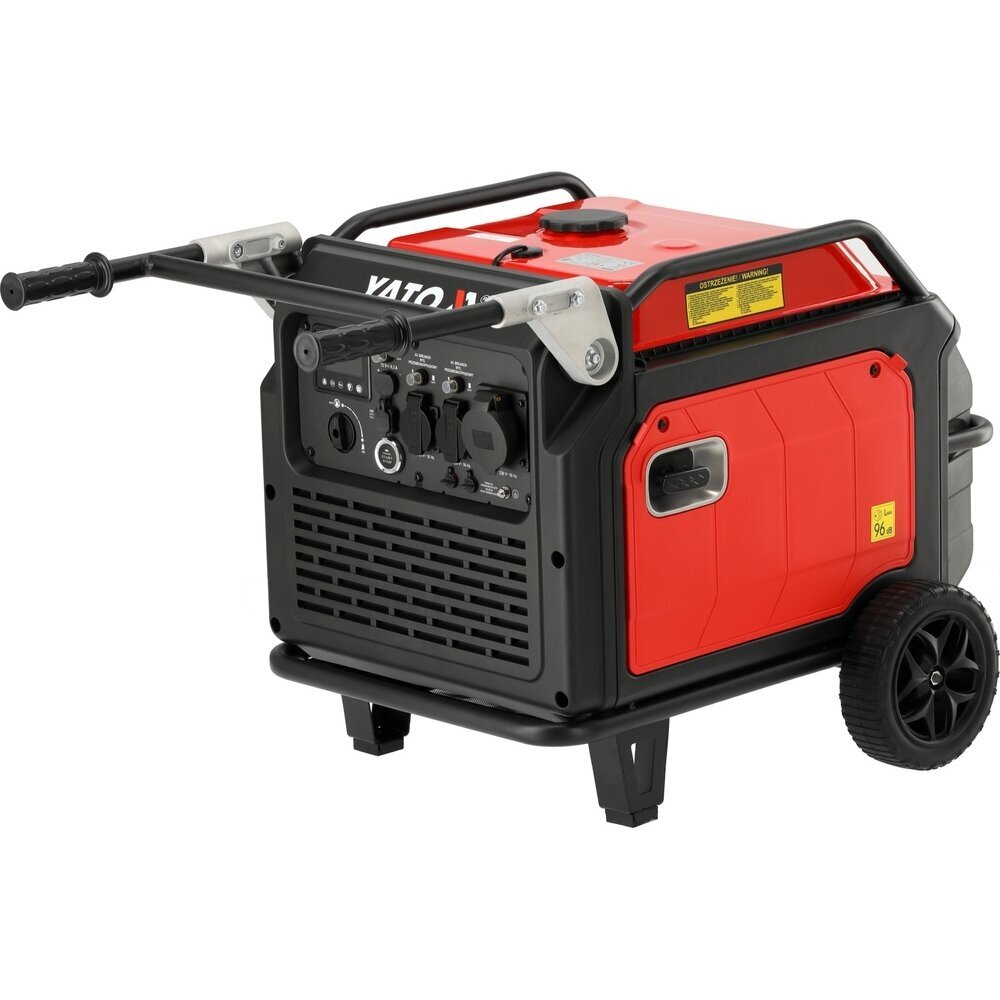

5000W INVERTER GENERATOR
Bran Yato
Entity responsible for this product in the EU TOYA S.A.More
Maximum power 5500 (S2 5 min) W
Power 5000 W
Voltage 230 V a.c.
Frequency 50 Hz
Engine capacity 224 cm³
Fuel tank capacity 19 l
Fuel type unleaded petrol
Oil tank capacity 0.8 l
Oil type SAE 15W-40
Direct current 21.7 A
Alternating current 8.3 A
Wheels yes
Number of wheels 2
Carrying handle yes
Number of handles 2
Dimensions 746x634x605 mm
Starting type manual, electric
Cooling air
Engine type R290-S
Spark plug type F7RTC
Max engine power 6.9 kW
Max engine speed 3600 min⁻¹
Number of cylinders in the engine 1
Number of cycles in the engine 4
Degree compression 8.7:1
Power factor 1
Operating temperature range 0~40 ˚C
Max. operating altitude 1000 m above sea level
Quality class B
Efficiency class G2
Electrical insulation class I
Protection class IP23M
Acoustic pressure 73.7 ± 1.88 dB(A)
Acoustic power 94.4 ± 1.89 dB(A)
Weight 65 kg
Symbol YT-85486
The combustion generator is a reliable source of energy on recreational plots, campsites, in summer cottages and wherever there is no access to electricity or it is necessary to use an emergency source of electricity. The inverter power supply system allows safe connection of even sensitive devices and electronic equipment.

Generator:
power: 5000 W
maximum power: 5500 W (S2 5 min)
voltage: 230 V, 5, 12 V d.c.
frequency: 50 Hz
power factor: 1
direct current: 21.7 A
alternating current: 8.3 A
protection class: IP23M
quality class: B
efficiency class: G2
electric insulation class: I
Engine:
engine type: R290-S
single-cylinder, four-stroke engine
fuel type: unleaded petrol
oil type: SAE 15W-40
starting: manual and electric
engine capacity: 224 cm3
max. engine power: 6.9 kW
max. engine speed: 3600 rpm
air cooling
compression ratio: 8.7:1
fuel tank capacity: 19 l
oil tank capacity: 0.8 l
spark plug type: F7RTC
Device:
operating temperature: 0-40˚C
max. operating altitude: 1000 m above sea level

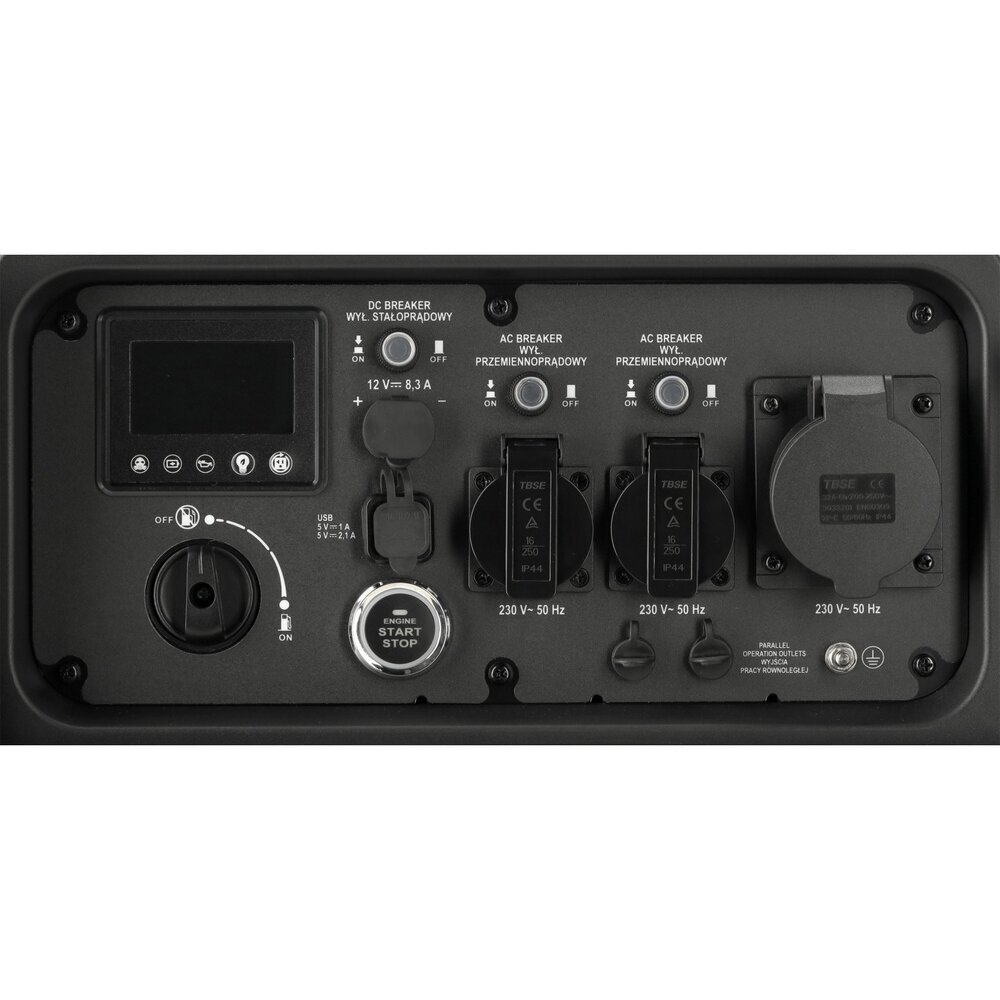

clear control panel with indicator lights
AC and DC protection
ECO mode
2 carrying handles
2 wheels for easy transport
2 230 V power sockets
noise level: 96 dB
dimensions: 746 x 634 x 605 mm
weight: 65 kg
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Caution! Exhaust fumes are toxic. Do not operate the generator in rooms without adequate ventilation. 3. Do not allow children near the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator is placed in a closed room, take measures to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
