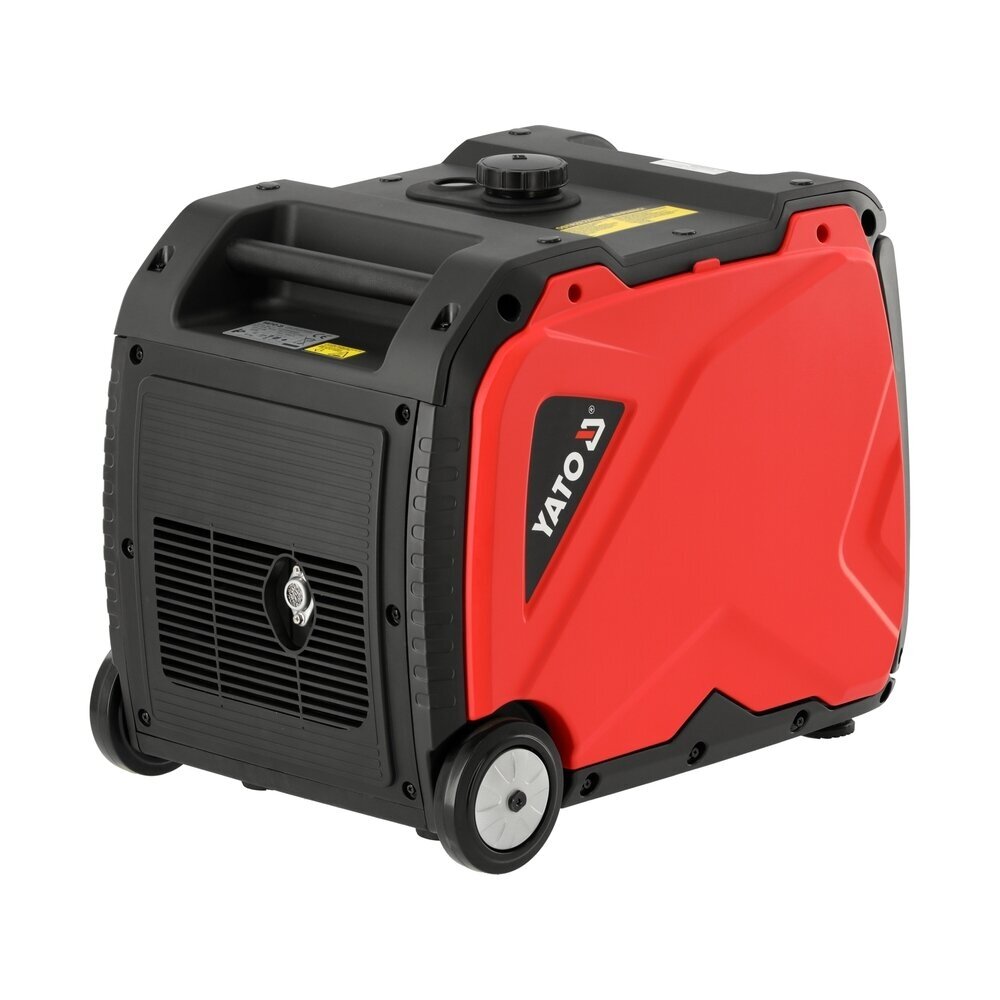

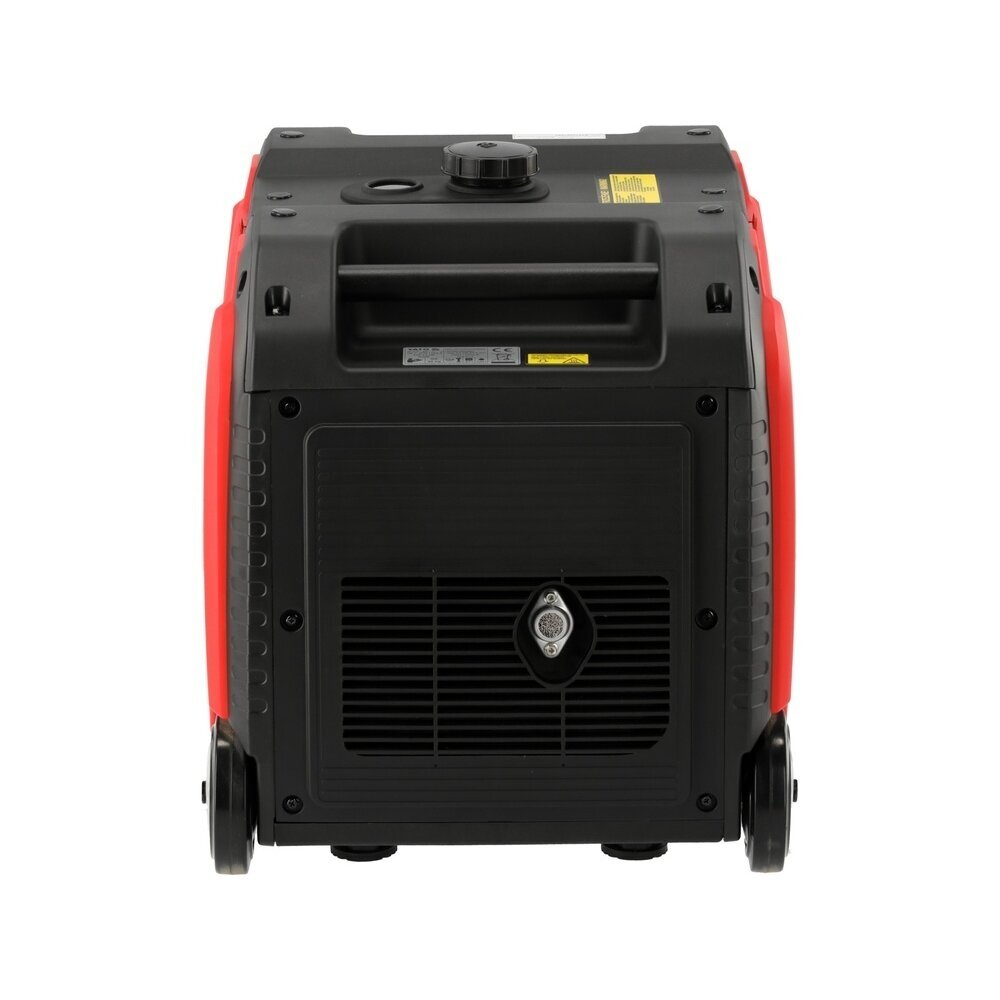

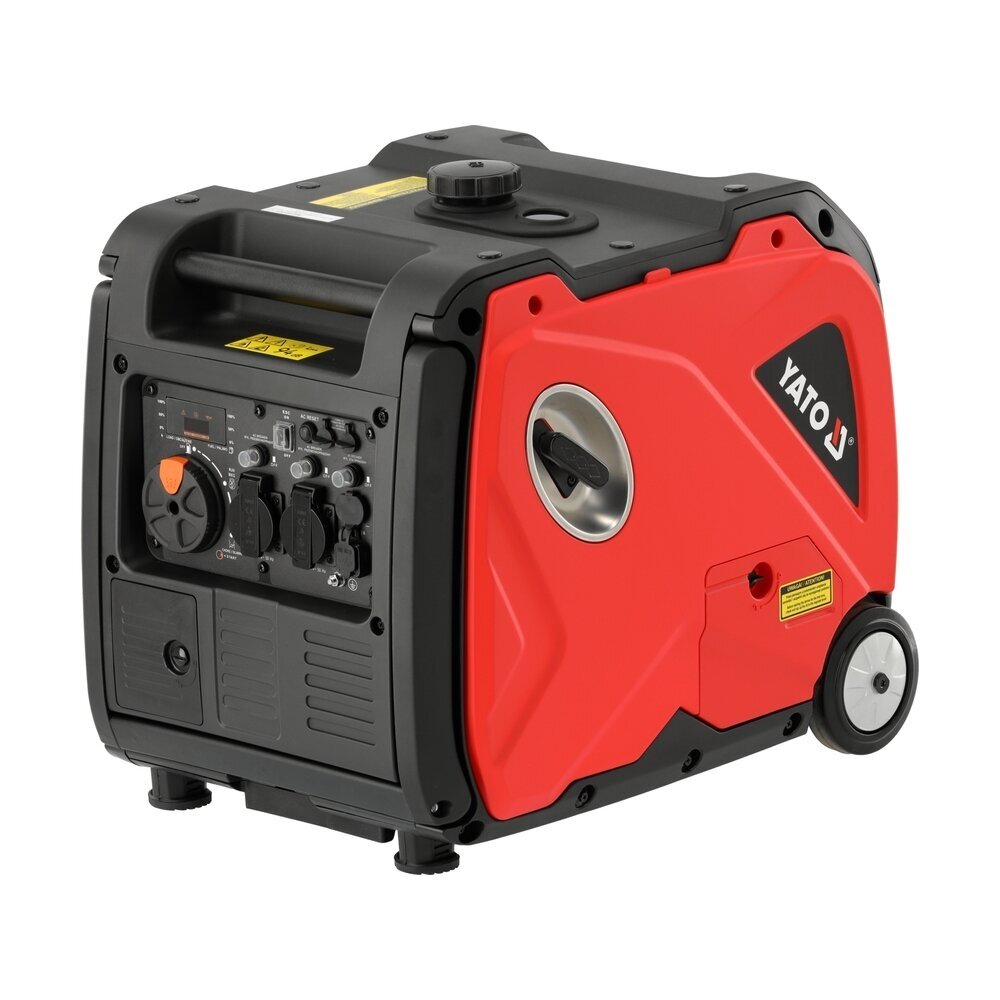

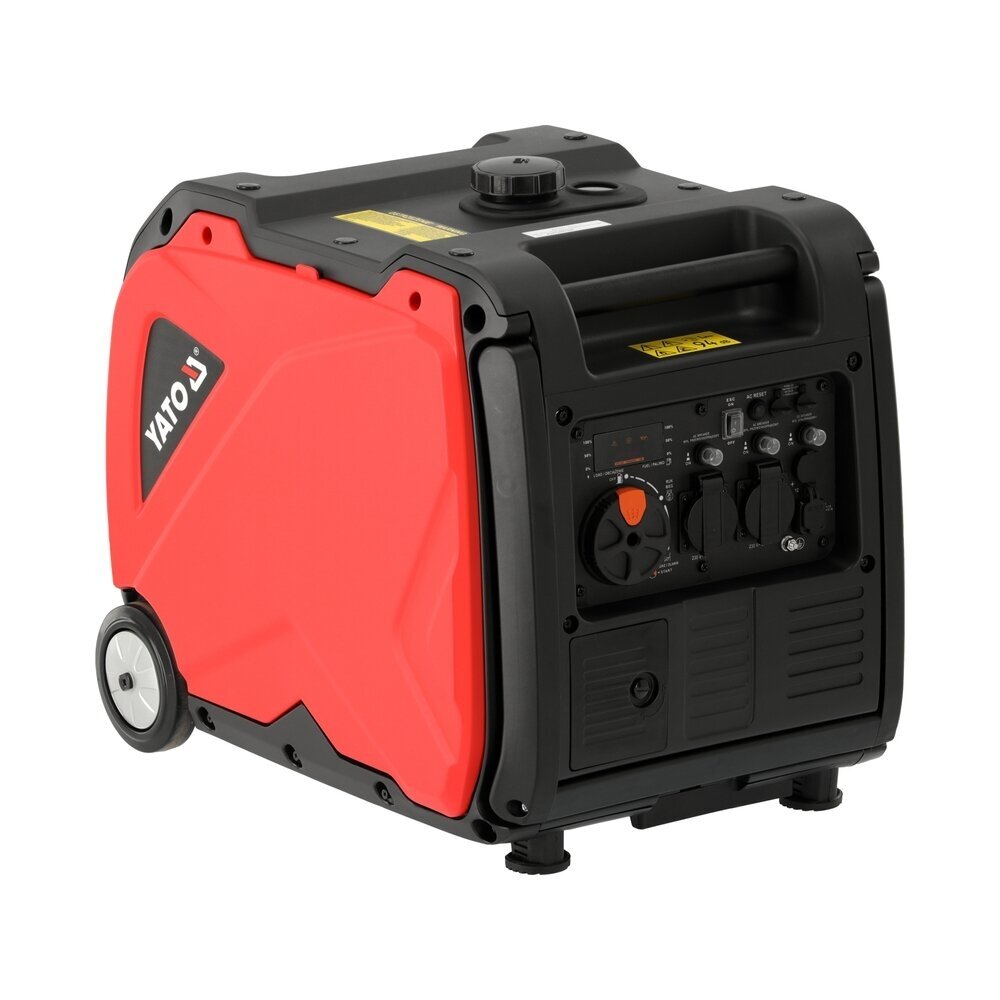

Generatorius inverterinis 4000W.

Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Moc maksymalna
4000 (S2 5 min) W
Power
3800 W
Voltage
230 V a.c.
Frequency
50 Hz
Engine (motor) capacity
224 cm³
Fuel tank capacity
8.3 l
Fuel type
unleaded petrol
Oil tank capacity
0.55 l
Oil type
SAE 15W-40
Direct current
16.5 A
Alternating current
8.3 A
Wheels
yes
Wheel quantity
2
Transportation holder
yes
Handle quantity
1
Dimensions
590x456x511 mm
Boot type
manual, electric
Cooling
air
Engine (motor) type
R225-V
Ignition plug type
F6RTC
Max. engine (motor) power
5.3 kW
Max. engine (motor) rotations
3600 min⁻¹
Cylinders number in engine (motor)
1
Strokes number in engine (motor)
4
Compression stage
8.0:1
Power factor
1
Working temperature range
0~40 ˚C
Max. operating altitude
1000 m n.p.m.
Quality class
B
Performance class
G2
Electric insulation class
I
Protection grade
IP23M
Acoustic pressure
71.7 ± 1.90 dB(A)
Acoustic power
91.7 ± 1.90 dB(A)
Weight
45 kg
Set includes
generator, pilot
Symbol
YT-85485

The petrol generator is a reliable source of energy in recreational plots, campsites, summer houses, and everywhere where there is no access to electricity or where the use of emergency electrical power is necessary. The inverter power system allows safe connection of even sensitive electronic devices and equipment.

Generator:

power: 3800 W
maximum power: 4000 W (S2 5 min)
voltage: 230 V, 5, 12 V d.c.
frequency: 50 Hz
power factor: 1
DC current: 16.5 A
AC current: 8.3 A
protection class: IP23M
quality class: B
efficiency class: G2
electrical insulation class: I
Engine:

engine type: R225-V
single-cylinder, four-stroke engine
fuel type: unleaded petrol
oil type: SAE 15W-40
start: manual and electric
engine capacity: 224 cm3
max engine power: 5.3 kW
max engine speed: 3600 rpm
air cooling
compression ratio: 10.5:1
fuel tank capacity: 8.3 l
oil tank capacity: 0.55 l
spark plug type: F6RTC
Device:

operating temperature: 0-40˚C
max operating altitude: 1000 m above sea level

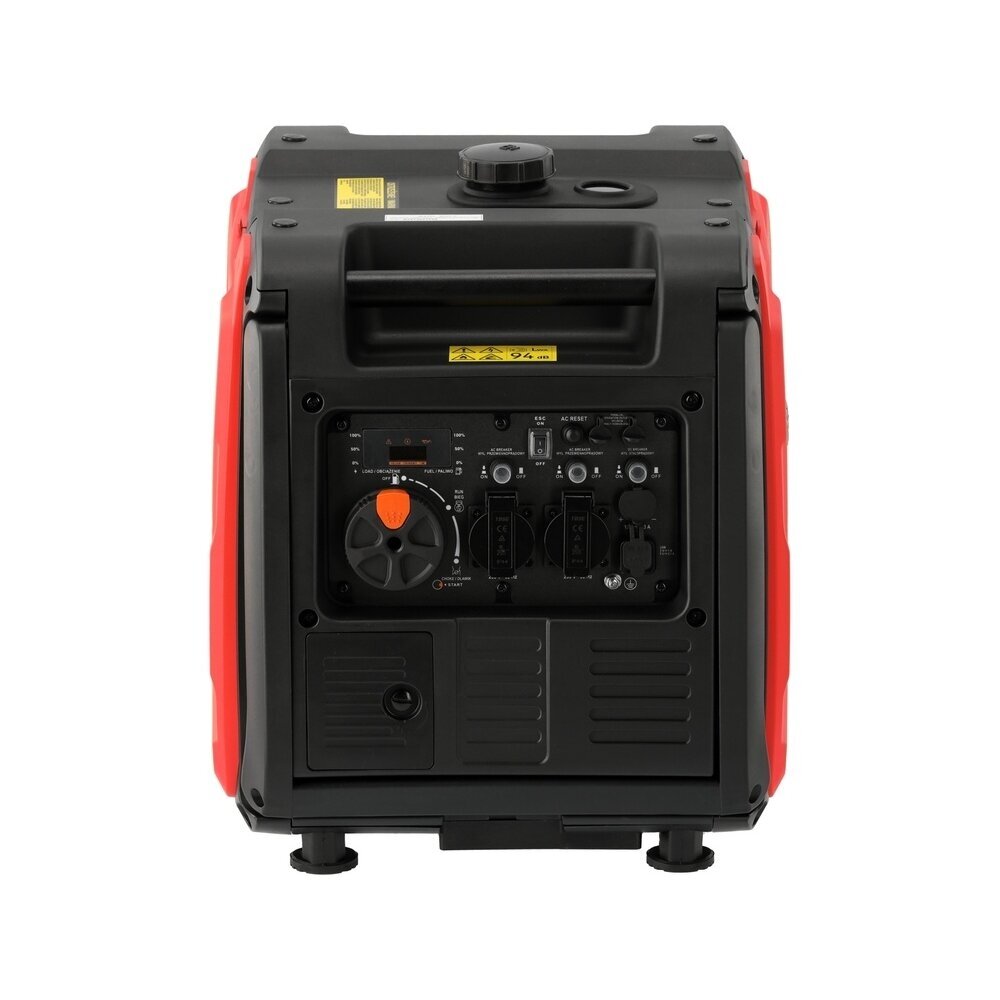

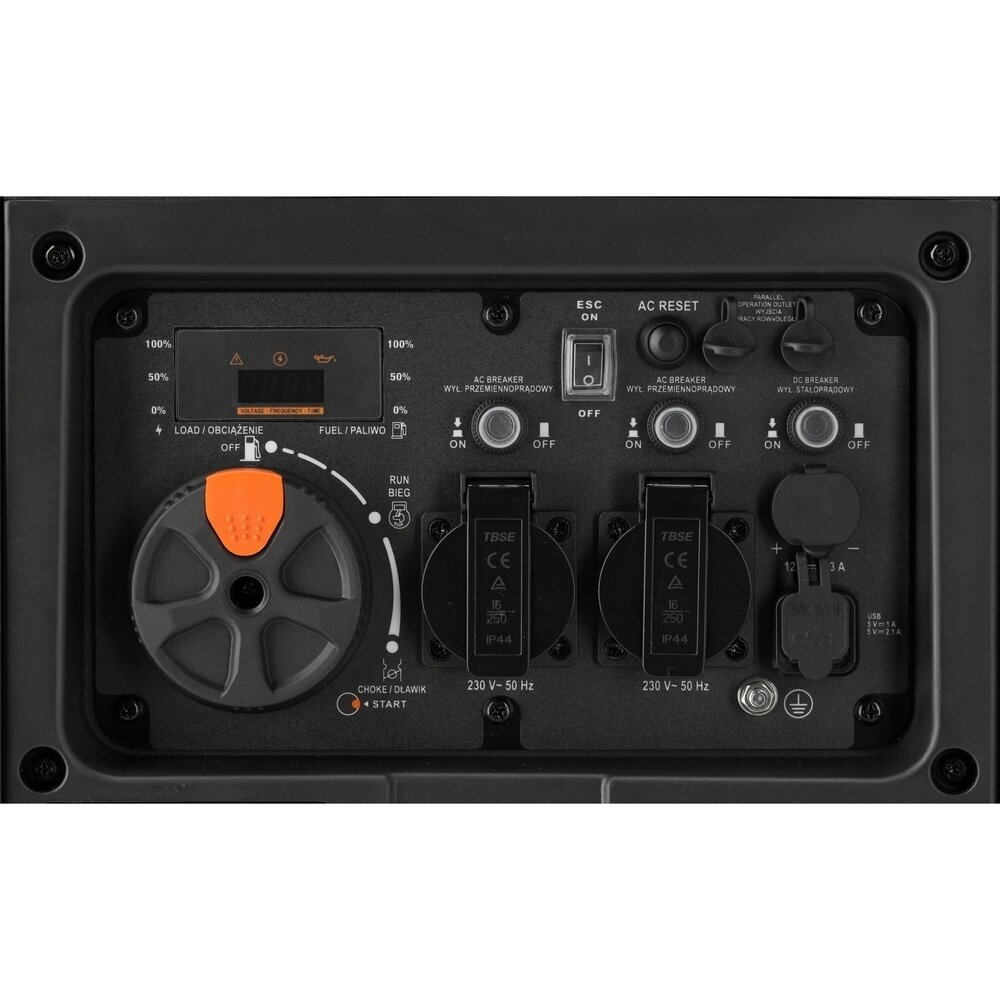

clear control panel with indicators
AC and DC protection
eco mode

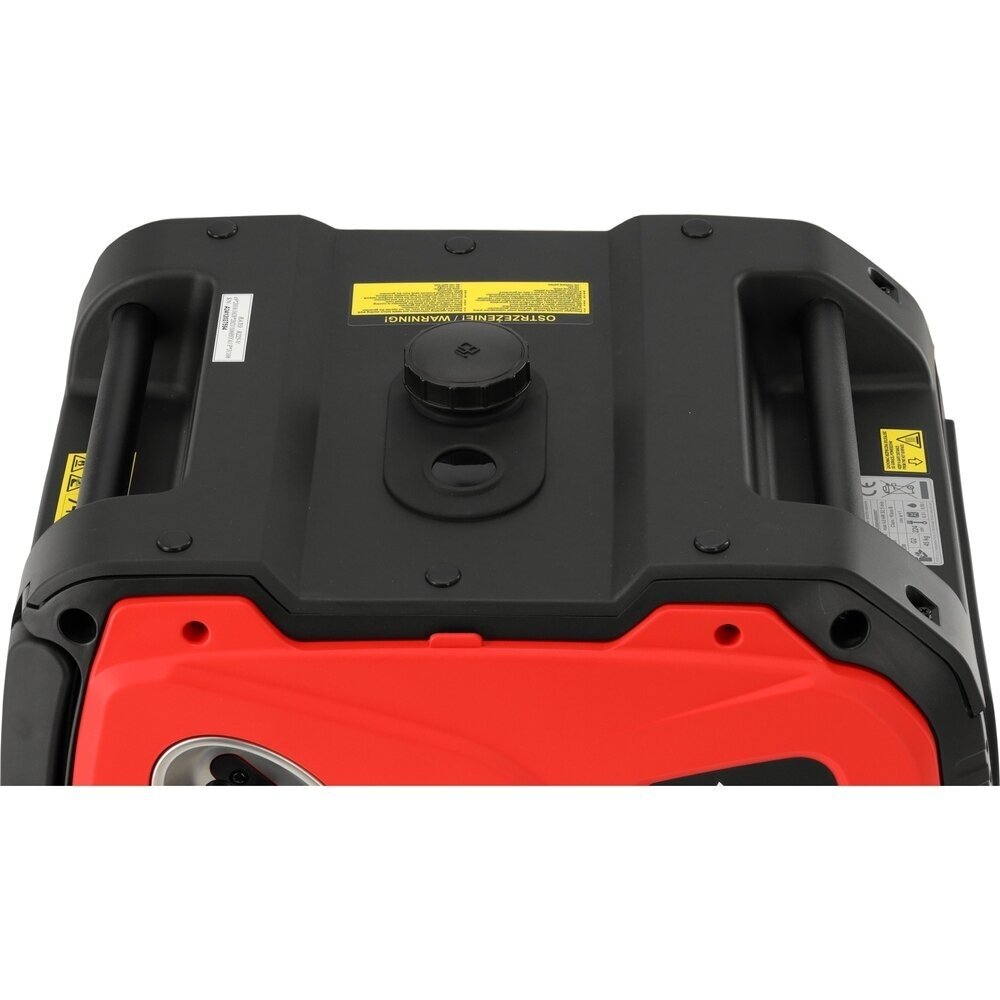

carrying handle
2 transport wheels
2 230 V power sockets
noise level: 94 dB
dimensions: 590 x 456 x 511 mm
weight: 45 kg

Usage warnings:

Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
