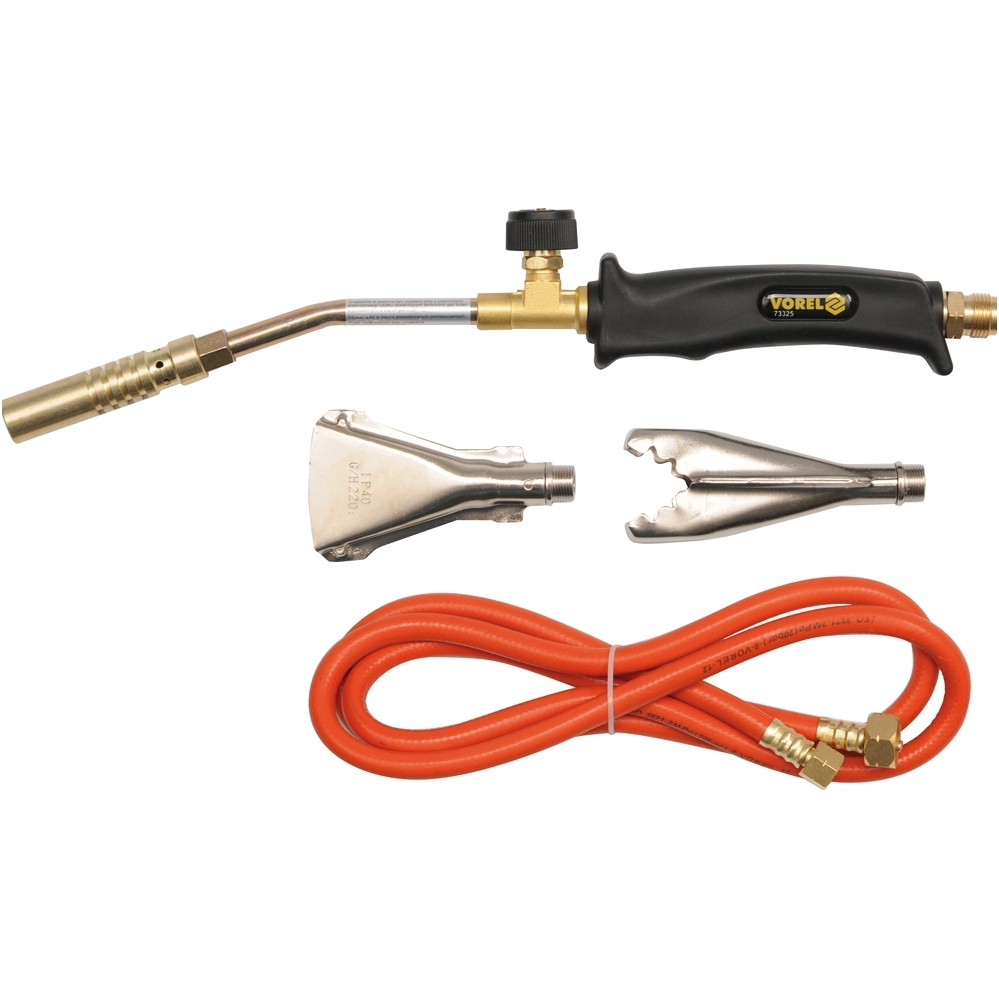

Dujinis degiklis su žarna ir keičiamais antgaliais

  • Kraunamos nuotraukos
    Kodas: 73325
    2038
    Šią prekę turime sandėlyje.
    Į krepšelį
    Skaičiuojama...

    Pusiau profesionali linija.

    Prekės ženklas
    VOREL

  • Dujų degiklių rinkinys skirtas naudojimui daugelyje pramonės šakų. Į komplektą įeina universali jungtis, specialios žarnų jungtys dujų balionui, apipavidalinimo rankena ir liepsnos purkštukai.

    LIEPSNA TEMP. 800 ° C ~ 1200 ° C,
    GAMTINIŲ DUJŲ SĄNAUDOS ~ 140 g / h;
    ŠILUMOS ENERGIJOS ~ 2kW,
    su liepsnos - dujų reguliavimu,
    žarnos ilgis ~ 2M; 17MM degiklis
    40MM PLOKŠČIAS DEGIKLIS;
    22 mm vamzdinis DEGIKLIS

    Product description
    A set of gas burners designed for installation work and many applications in other industries. The kit includes a universal handle, a special 2m hose with gas cylinder fittings and handle, and nozzles for flame shaping. We can use a 17mm point nozzle, a 22mm nozzle with a rounded flame or a flat 40mm nozzle for heating and sunbathing.

    TECHNICAL PARAMETERS:
    • Number of cups of burners - 3
    • Size of the cups [mm] - 17; 22; 40
    • Nominal gas pressure [MPa] - 0,5
    • Flame temperature [° C] - 800-1200
    • Rated flow [g / h] - 140
    • Heat load [kW] - 2
    • Length of the hose [m] - 2
    • Burner length (without hose length) [mm] - 360
    Destination / Application
    Gas burners are designed for soldering, heating, dehumidification and roofing. Thanks to the use of pressurized butane (but also propane butane), it is possible to work in a place with no energy sources.
    How to use
    Assemble the unit according to the operating instructions. Tighten the hose to the assembled device. Tighten the other end of the hose to the gas bottle.
    Check the tightness of the joints by unscrewing the cylinder valve a bit, then apply soapy water to the joints. In the event of gas bubbles, tighten the gas supply and tighten the leaky connections. Repeat the procedure until the gas is completely tight

    Unscrew the gas valve in the cylinder and then unscrew the valve of the device, but only enough to allow the gas outlet. Ignite the gas at the outlet of the cup. For this purpose use a special lighter designed to ignite portable gas burners. After about 20 seconds adjust the flame height using the burner regulator.
    When the work is finished, turn off the cylinder valve and then, after flame extinguishing, put the burner on a non-flammable surface to cool down. After cooling down, proceed to maintenance.

    For assembly, operation and maintenance details of the unit, see the enclosed operating instructions.
    Contents of the package
    • Burner (G3 / 8 "-19)
    • 2 m hose (G3 / 8 "-19, 21.8-14)
    • Flat tip 40 mm - paint removal
    • Concentrated 17 mm tip - locking, hydraulics, mechanics
    • Around the 22 mm end (hard soldering, hydraulic work)
    Technical data
    Index Number 73325
    EAN 5906083733253
    Marka Vorel
    unit KPL
    Gross Weight (kg) 1.0750

    FLAME TEMP. 800°C~1200°C; GAS CONSUMPTION ~140 G/H; HEAT POWER ~2KW; GAS TORCH WITH FLAME ADJUSTMENT; HOSE LENGTH ~2M; 17MM POINT BURNER; 40MM FLAT BURNER; 22MM PIPE BURNER
    APPLICATION: FOR BRAZING, SOFT SOLDERING, PAINT STRIPPING AND GENERAL PIPE WORK APPLICATIONS
