Description

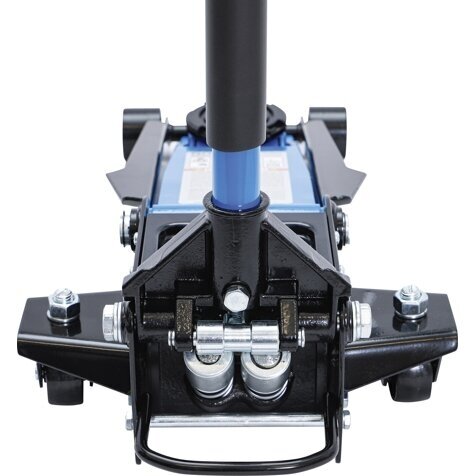

dual lifting piston
low headroom, thus particularly suitable for vehicles with low ground clearance
high mobility in connection with two oil and acid-resistant steel swivel castors
safe and precise control when lifting and lowering, simple operation with the lifting rod
compact design

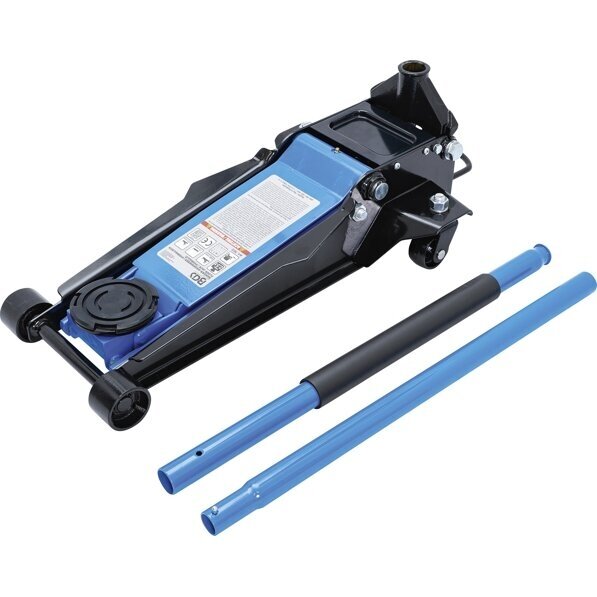

two part lever tube, bottom part with rubber protector
rubber pad made of oil-resistant rubber

front wheel dimensions: Ø 60 x 46 mm
rear wheel dimensions: Ø 60 x 30 mm
lifting pad diameter: 110 mm

Technical data
Length 648 mm
Width 344 mm
Packaging suitable for wall hanging No
Gross weight 32000 g
Lever length 1247 mm
Lifting height max. 510 mm
Lifting height min. 75 mm
Rated load capacity 2,5 t
