Cilindrų šveitiklis (Honas) 89 - 370mm.

Barcode
5906083146657
Unit of measure
PCE
Volume
1.96
Weight
0.575
Attributes
Cylinder diameter
89-370 mm
Length
370 mm
Hone size
100x11 mm
Hone material
karborund
Hone quantity
4
Grit
220
Flexible
yes
Application
for cylinders

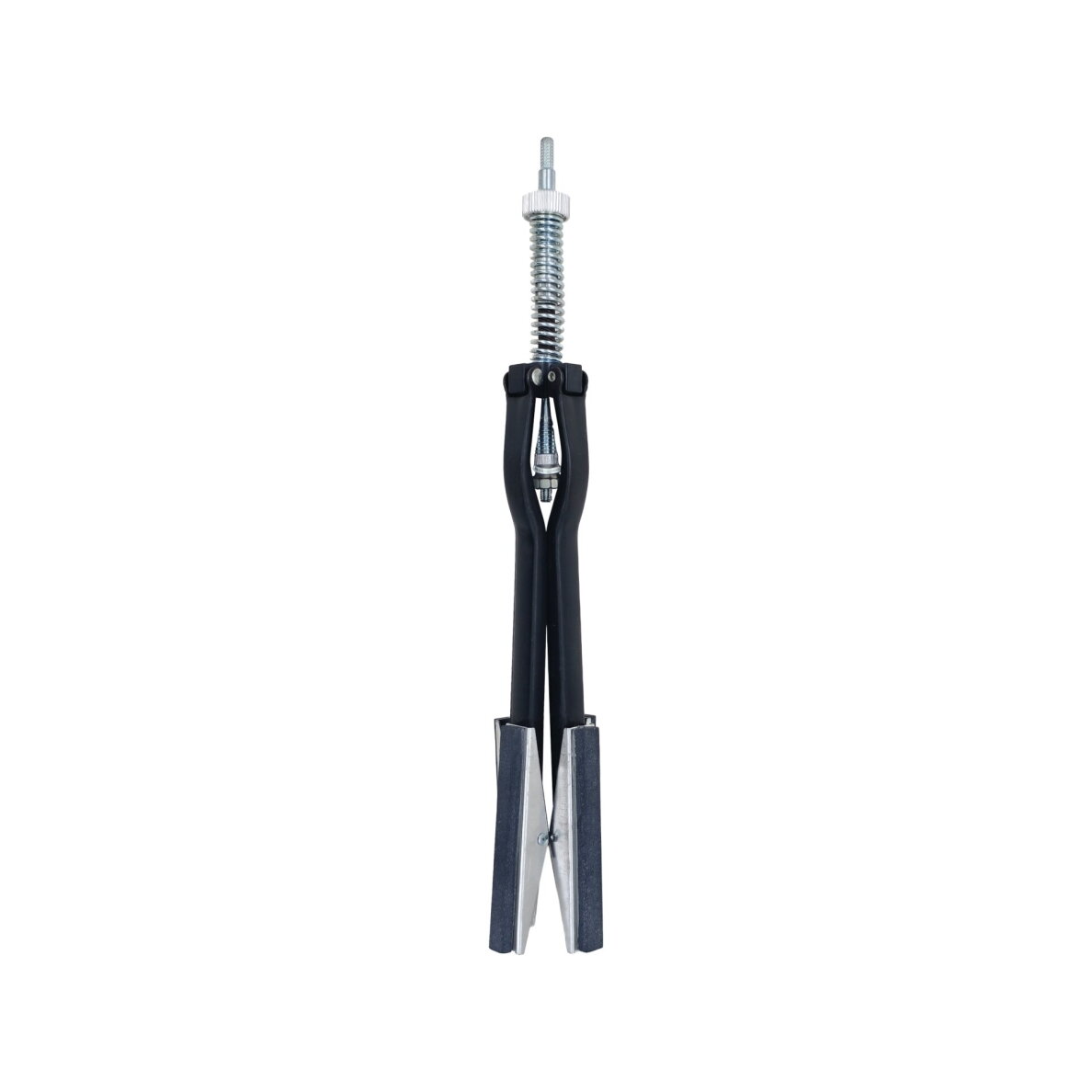

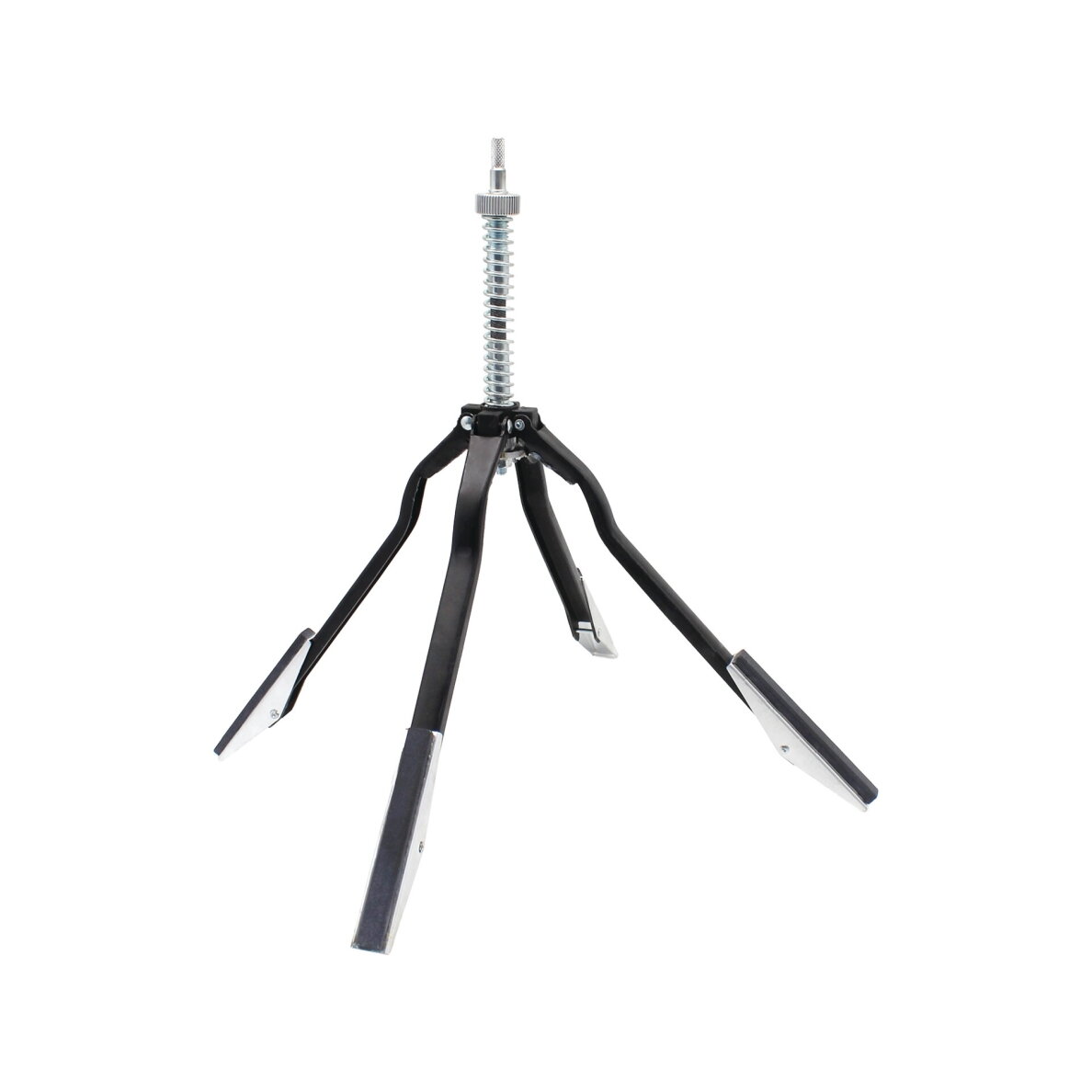

The YT-05821 cylinder hone is designed for finishing the internal surfaces of cylinders during maintenance and reconditioning work. It is used for honing—the process of precisely smoothing and preparing the cylinder surface following prior machining. Adjustable stone pressure allows the intensity of the operation to be tailored to the specific surface, while the flexible shaft facilitates guiding the tool inside the cylinder. Product features:

adjustable stone pressure allows for precise control of the force applied based on the diameter and type of surface being machined
adjustable spring tension ensures stable contact between the stones and cylinder walls during operation
flexible shaft facilitates tool guidance and compensates for minor misalignments during the honing process
smooth honing performance across various drill speeds
expansion limiter makes inserting the tool into the cylinder easier and prevents the stones from spreading too far
designed for use with variable-speed drills
89–370 mm diameter range allows for use in cylinders of various sizes
equipped with four fine-grit carborundum stones (100 x 11 mm, 220 grit), suitable for surface finishing
370 mm (14.5") total length provides sufficient reach for working in deeper cylinders
Technical specifications:

diameter range: 89–370 mm
length: 370 mm (14.5")
stone material: carborundum
number of stones: 4
stone dimensions: 100 x 11 mm
stone grit: 220
adjustable pressure: yes
adjustable spring tension: yes
drive: variable-speed drill
shaft: flexible
