74485
WELDING HELMET TRUE COLOR FIELD OF VIEW 90X35 MM
BrandSthor
Symbol74485
StandardEN 175:1997, EN 379:2003 + A1:2009
Optical properties1 / 1 / 1 / 2
Dark state11 DIN
Light state3 DIN
Filter typeauto-darkening TRUE COLOR
Filter size110x90 mm
Field of view90x35 mm
Helmet materialPP

Lens materialPC
3-point suspensionyes
Number of arc sensors2
Response time1/15000 s
Darkness adjustmentno
Brightening time0.4 s
Delay adjustmentautomatic in the range of 0.25-0.45s
Automatic sensitivity adjustmentyes
Automatic switch on/offyes
UV/IR radiation resistanceyes, DIN 16
Power supplysolar cell, battery
Battery type3V; CR2032
Operating temperature range-5 ~ +55 ˚C
Storage temperature-20 ~ +70 ˚C
Welding methodMMA, MIG, MAG

Welding helmet equipped with a self-darkening filter in TRUE COLOR technology, protects against electric arc light, UV/IR rays up to DIN 16 and spatter. Unlike filters with a traditional self-darkening filter, it does not change the perception of colors. The welding source is visible in the full palette of colors.

Characteristics:

visor made of fireproof polypropylene, polycarbonate filter protective glass

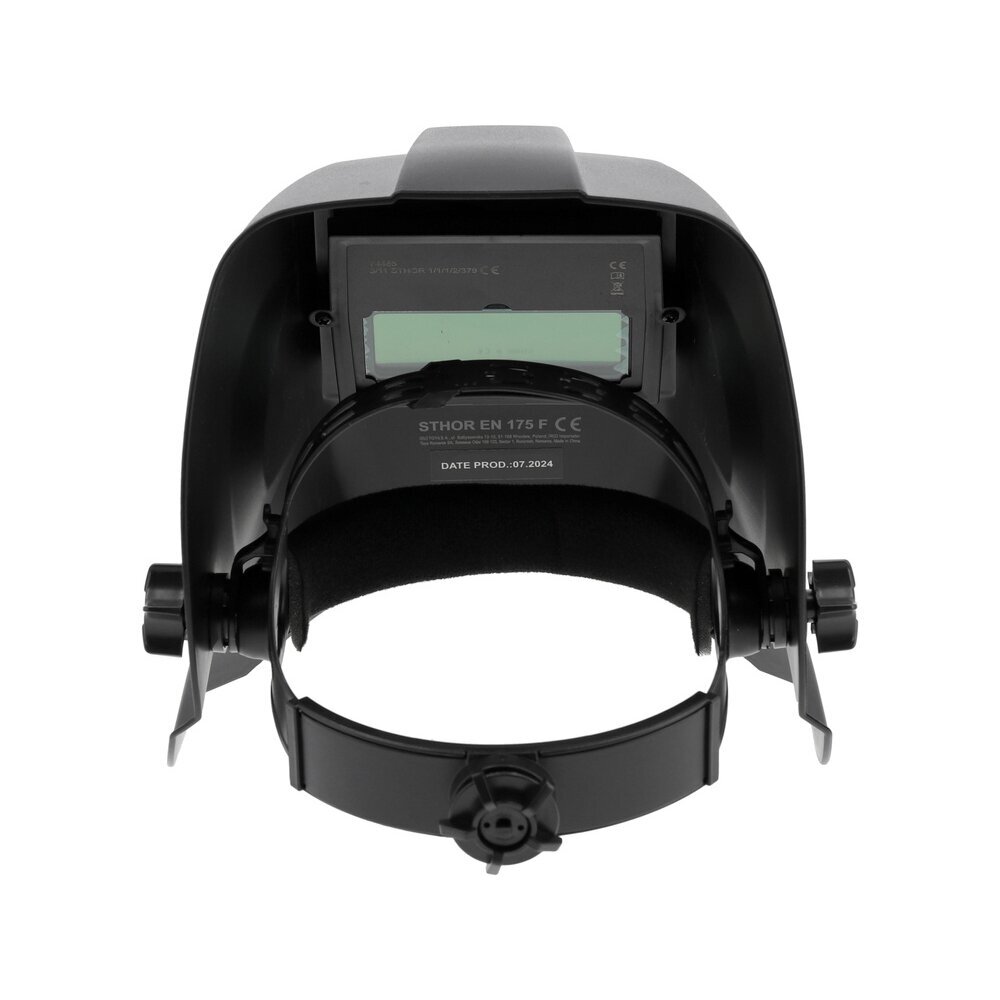

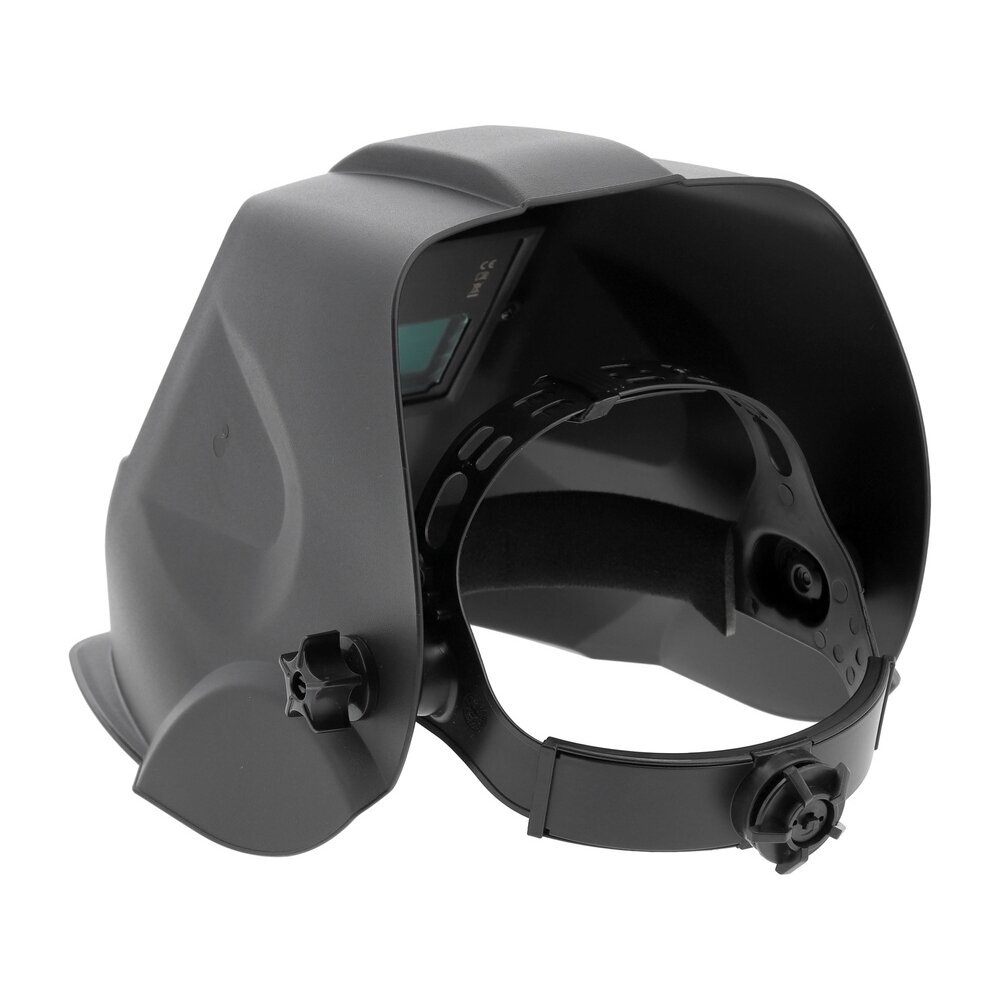

equipped with a 3-point harness with adjustment allowing for perfect adjustment of the shield to the shape and size of the head
soft material sweatband improves work comfort
filter equipped with 2 sensors works automatically when illuminated by an electric arc (when the sensors detect light from welding, the filter will change the degree of darkness)
Parameters:

dark state: DIN 11; light state: DIN 3
optical class: 1/1/1/2
field of view: 90 x 35 mm
reaction time 1/15000 s; brightening time 0.4 s
powered by a solar cell and a CR2032 battery
