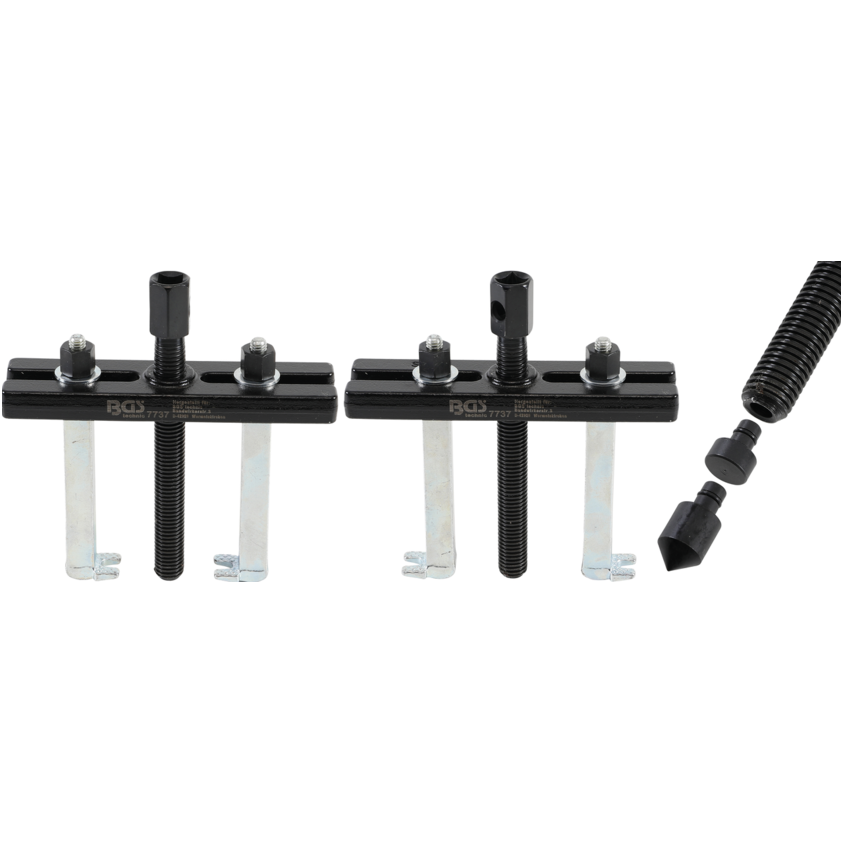

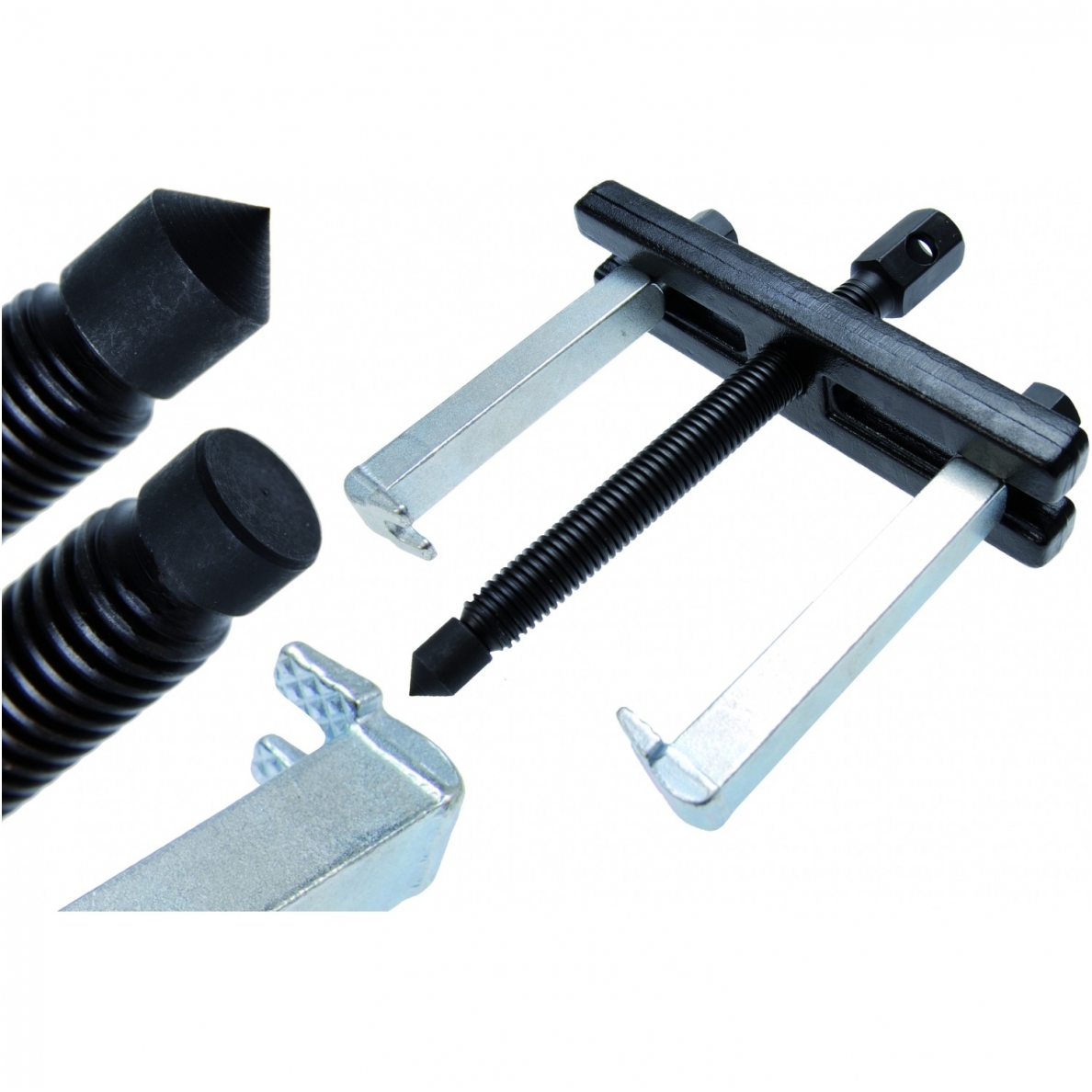

Vidinis-išorinis nuėmėjas
Vidinis-išorinis nuėmėjas
Kodas: 77373341 €Šią prekę turime sandėlyje.Profesionalių įrankių linija.
Prekės ženklasBGS-technic-
Description
- suitable as inside and outside puller
- Clamping range as inside puller 50 - 145 mm
- Clamping range as external puller 70 - 170 mm

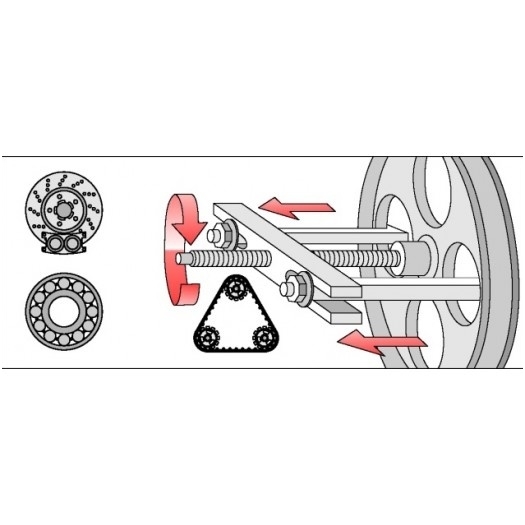

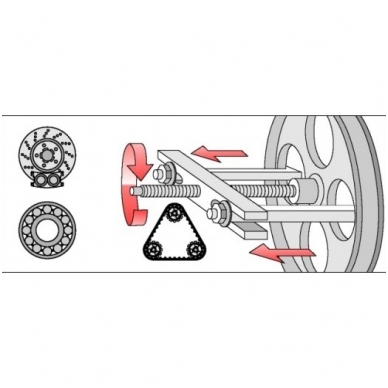

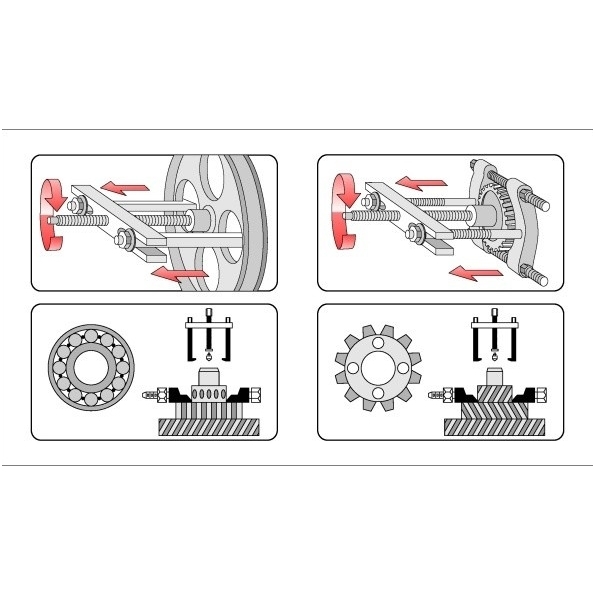

- slotted puller arm also suitable for small sleeves, bearing, gears, pulleys etc.
- structured puller arm for better grip
- good centering by cone-shaped pressure piece
- incl. flat pressure piece
- spindle drive is possible via internal square 1/2", external hexagon 21 mm or rod
- spindle made of carbon steel
Technical data
Clamping depth 100 mm Hooked footh 14 mm Hook length 31,5 mm Wrench size 1 12,5 mm (1/2") | Gleitgriff Min. clamping width 40 mm Spindle length 155 mm Hex drive size 21 mm Max. clamping width 145 mm Hook foot thickness at the top 6,5 mm Max. clamping width inside puller 145 mm Min. clamping width inside puller 50 mm Min. clamping width outside puller 70 mm Max. clamping width outside puller 170 mm Hook foot opening 8 mm Gross weight 1780 g
