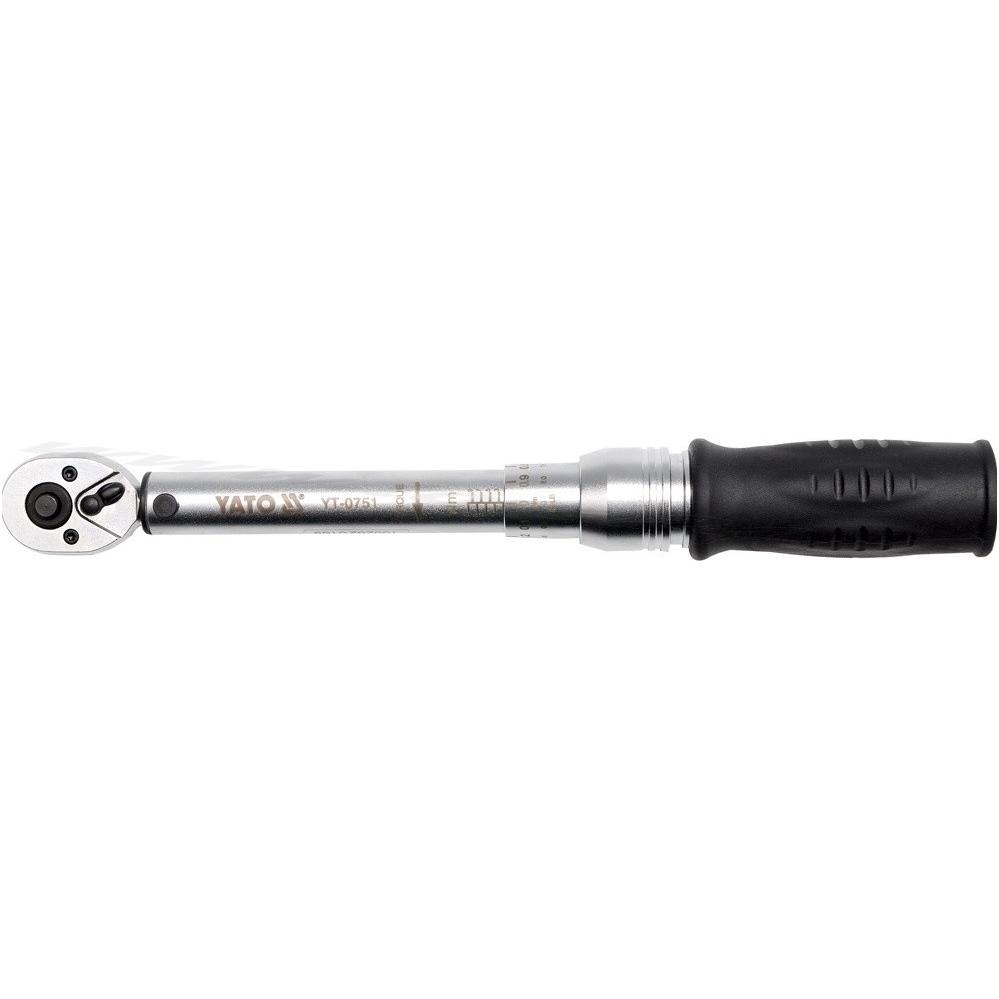

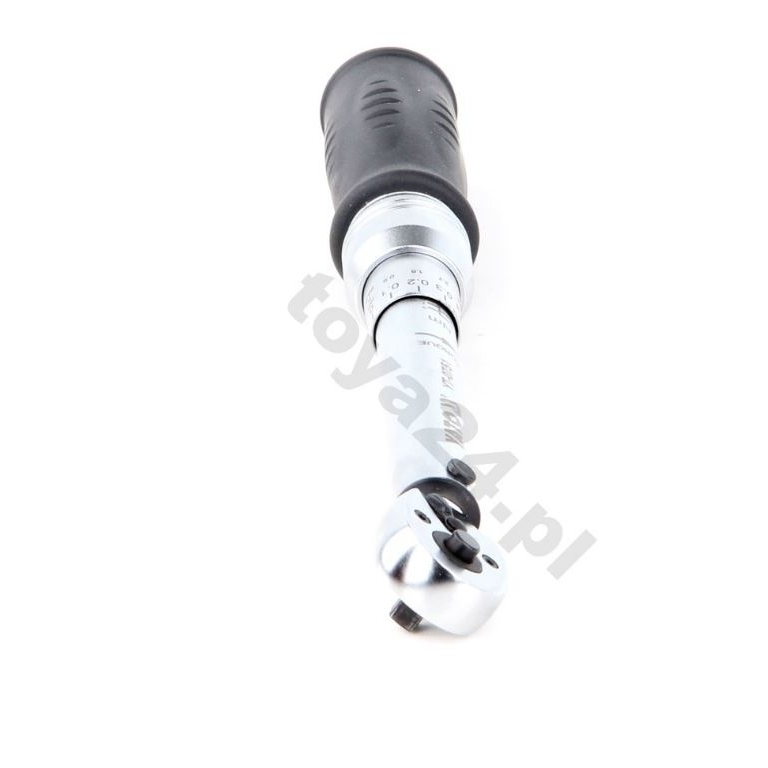

Product description

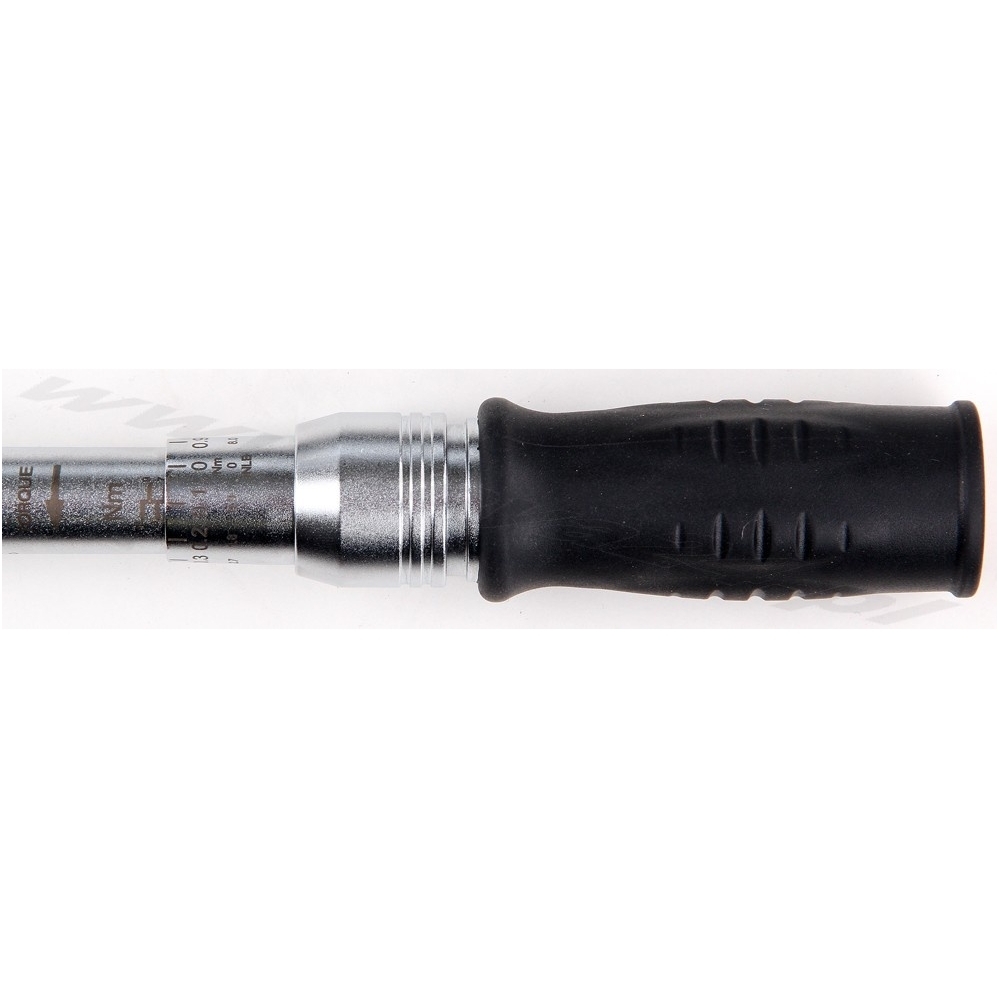

The key is made of chrome-vanadium steel, which ensures its durability and durability. It has a mechanical tension of the torque wrench which, after reaching the required tightening force, jumps over one tooth, giving a distinctive sound. The scale of moments is located in the handle of the key, its adjustment is made by turning it. After setting the desired torque, lock the key at the end of the handle.

Key is GS certified.

Comparison of moments in different units of length and strength:
1 kG * cm = 13,887 OZ * IN (ounce x inch)
1 kG * cm = 0.867 LB * IN (lb. in)
1 kG * m = 9,80665 N * m (Newton x meter)
1 kG * m = 7,233 LB * FT (lb.ft)
1 FT * LB = 12 LB * IN (lb. in)
1 dm * N = 14.16 OZ * IN (ounce x inch)
Destination / Application
It is mainly used in automotive technology for precise fixing and wherever the manufacturer has specified the required tightening torque of the joint.
How to use

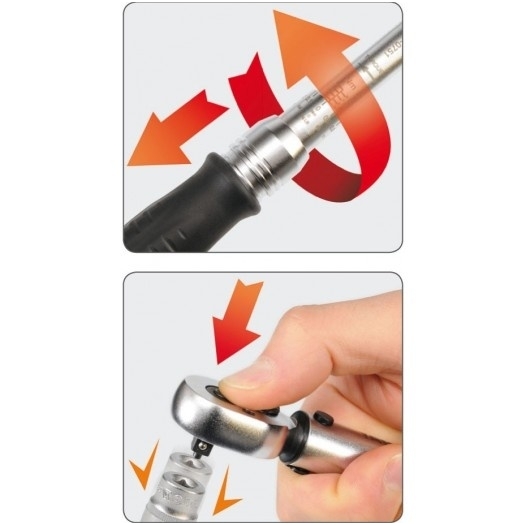

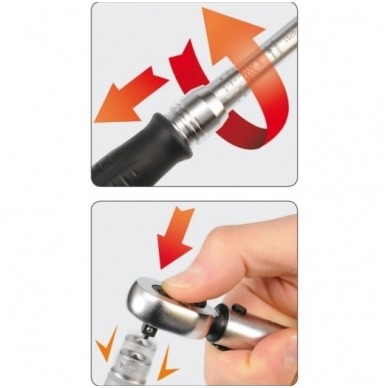

- Select the appropriate scale Nm or in-lbs. Unlock the micrometer knob.
- While holding the unlocked micrometer, rotate the handle of the spanner so that the "0" on the scale of the knob coincides with the vertical line on the key arm.
- Turn the handle of the spanner clockwise until the desired torque is set. The desired torque is set when the pitch on the micrometer dial will overlap with the vertical line on the key arm.
- Then lock the micrometer knob, making sure the lock is "snapped" and the handle can not be rotated, then set the direction of rotation of the ratchet, then the key is ready for use.
- Insert the appropriate cap on the key holder. During tightening, reaching the set torque is indicated by a click of a key. If you hear or feel clicks, you should stop tightening.
Contents of the package
- torque wrench

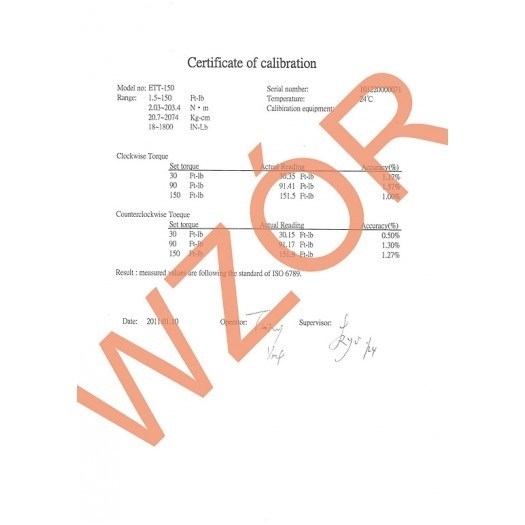

- factory calibration certificate (individual for each key, denoted by the serial number of the key)
- user manual
- Warranty Card

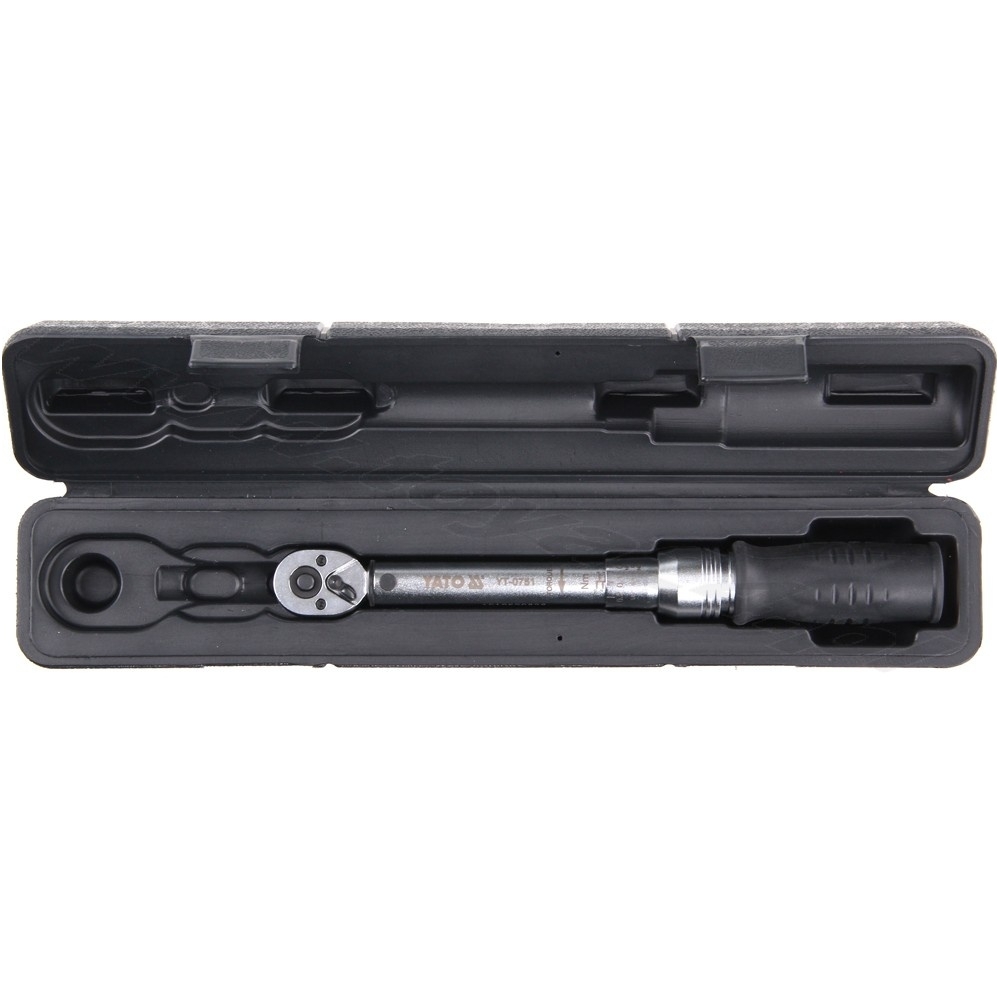

- suitcase
Technical data
Index number YT-0751
EAN 5906083907517
Brand Yato
PCS unit
Gross Weight (kg) 0.8750
Master Carton MC 24
Pal 576
Length [mm] 281
packaging BMC
Drive size [inch] 1/4 "
Torque value [Nm] 2-10
